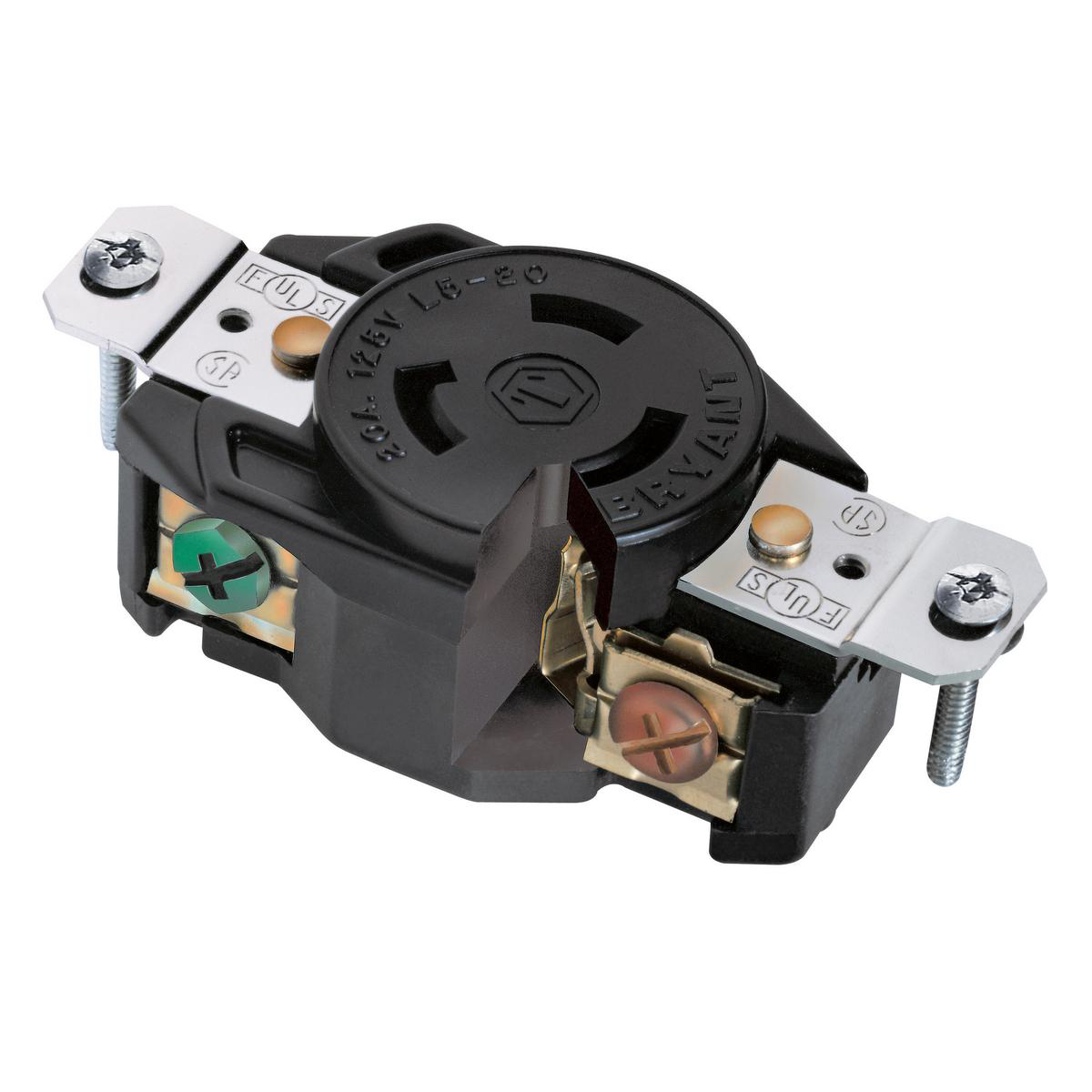

Product image for LKG RCPT, 20A 125V, L5-20R, BK
Image thumbnail 0
Image thumbnail 1
To:
CC:

LKG RCPT, 20A 125V, L5-20R, BK

Manufacturer: Bryant Wiring Device | Catalog # 70520FR | Electrozad South Part # 31242
*Call For Price*
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Locking Devices, Industrial, Nylon Flush Receptacle, 20A 125V,2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black

Technical Information

Amperage
20 A
Applications
Extra Heavy Duty Industrial Specification Grade
Current
20 A
Material
Composite
NEMA
L5-20R
Number of Phases
1
Number of Poles
2,2
Number of Wires
3,3
Size
Standard Sized Product
Style
Single Receptacle
TC Connection
Terminal Screws
Type
Single
Voltage
125 V
Wattage
2500 W
Wire Size
14-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786688537
Color
Black
GTIN
00781786688537
Product UPC
78178668853

Dimensions

Height
1.24 in
Length
3.28 in
Width
1.70 in

Certifications & Compliance

Country of Origin
USA
Overview
  • NEMA rating and configuration are molded into face for easy identification
  • Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
  • Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
  • One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
