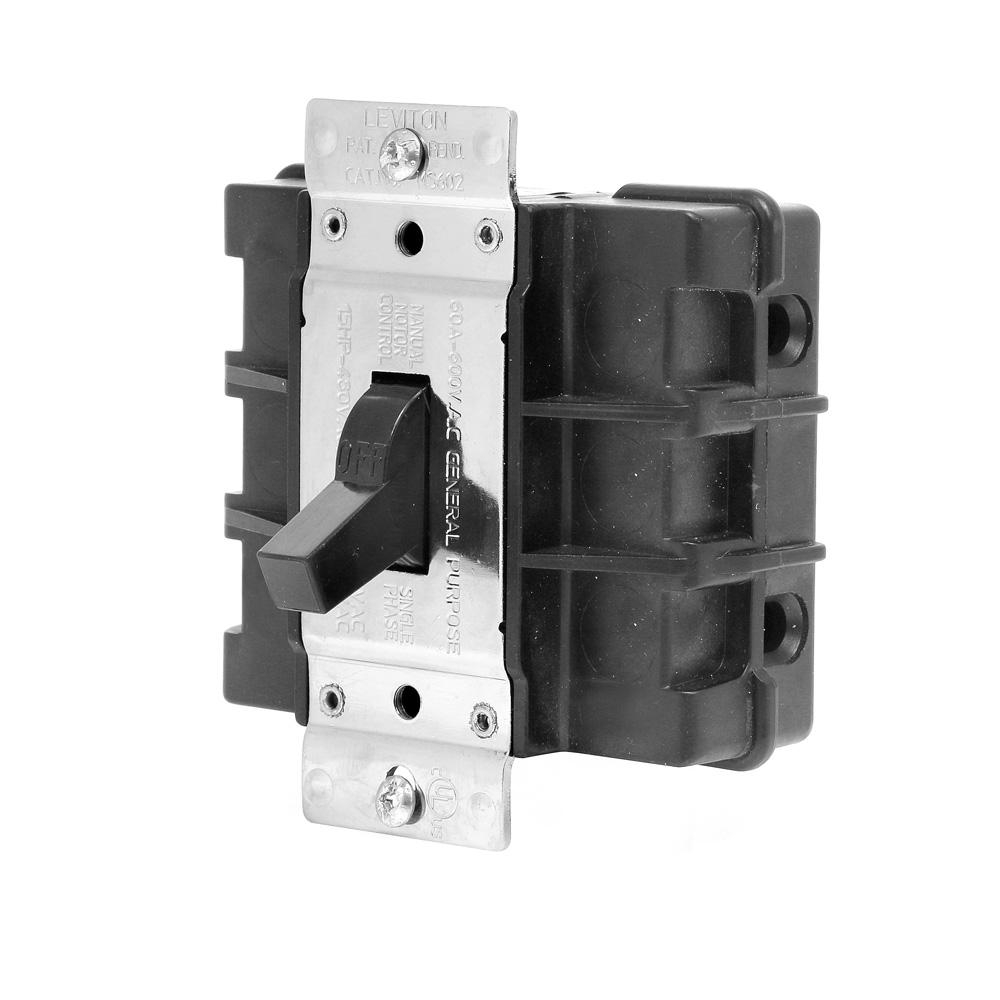

Product image for Switch toggle 2-pole back wiring 60A 600VAC
Image thumbnail 0
Image thumbnail 1
To:
CC:

Switch toggle 2-pole back wiring 60A 600VAC

Manufacturer: Leviton Manufacturing | Catalog # MS602-BW | Electrozad South Part # 312376
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet
Industrial grade AC manual motor controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications with a continuous current rating at all-voltages up to 600 VAC.

Technical Information

Action
DPST
Actuator
Toggle
Amperage
60 A
Applications
Commercial
Base Material
Thermoplastic Polyester
Body Material
Rynite
Connection Type
Back Wired
Contact Material
Silver-Cadmium Oxide
Device Type
Toggle Switch
Dielectric
2200 V
Enclosure
WD-6
Face Material
Polyester
Flamability Class
Rated V-0 Per UL 94
Grounding
Non-Grounding
Horsepower
10 hp
NEMA
WD-1
Number of Poles
2
Operating Temperature
-40 to 65 degrees C
Size
3.75 H x 3.43 W x 2.67 D IN
Standard
ANSI C-73
TC Connection
Back Wired
Temperature Rise
50 degrees C
Termination Type
Back Wire
Toggle Material
Thermoplastic Polyester
Torque
25 lb-in
Type
Non-Reversing
Voltage
600 V

Manufacturer Information

Brand
Leviton
Sub Brand
Motor Starter Switches

General Product Info

12-Digit UPC
078477073735
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477073735

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
