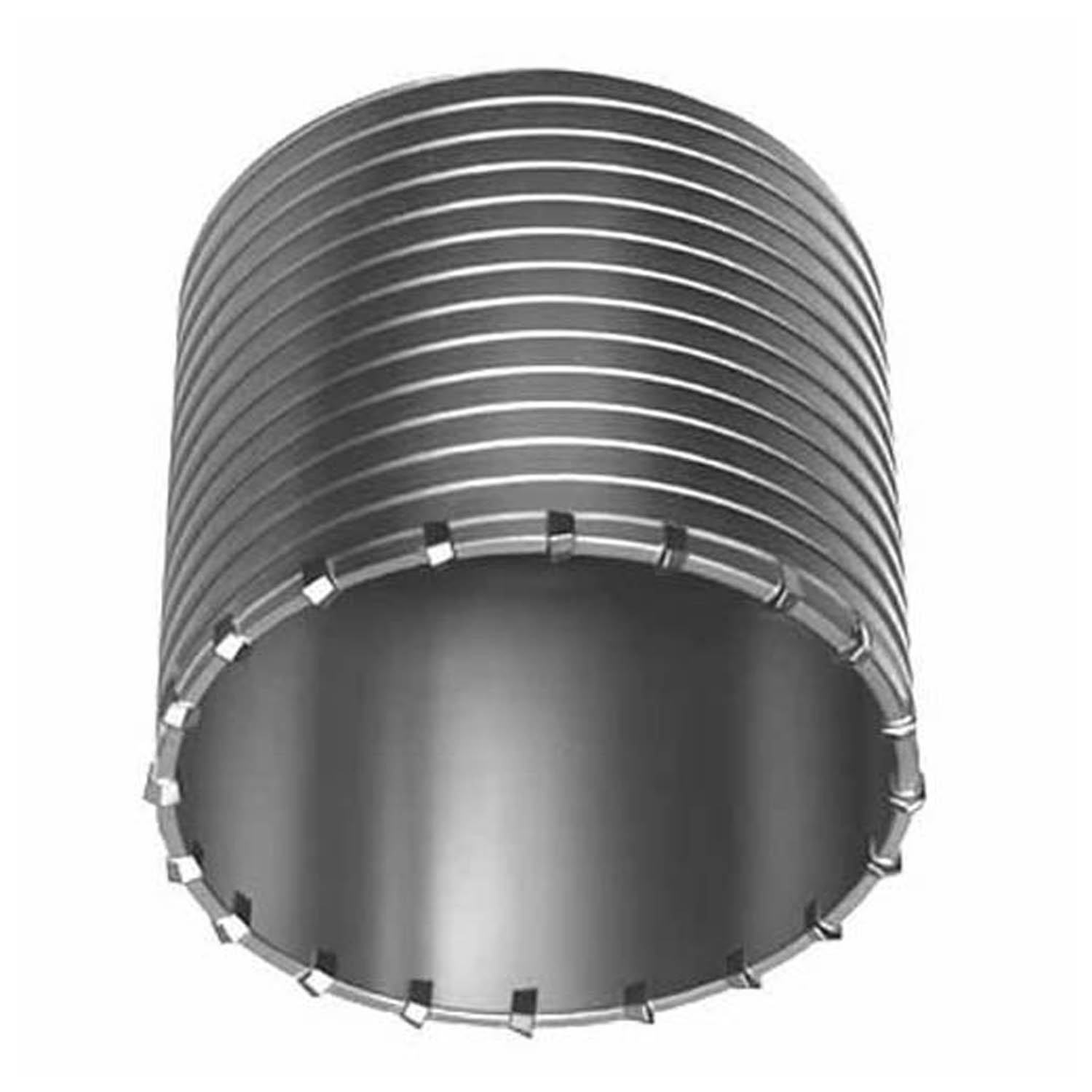

Bit coring 2-1/2in diameter 4-1/6in depth

Manufacturer: Milwaukee Tools | Catalog # 48-20-5140 | Electrozad South Part # 31172
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure Manufacturer Warranty
Milwaukee®'s SDS-Max and Spline Thick Wall Core Bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin.

Technical Information

Applications
For Large Hole Drilling where Depth is Relatively Shallow
Bit Type
Percussion
Drilling Depth
4.062 in
Included Angle
Guide Plate and Centering Pin
Material
Carbide Tipped
Shank Size
12/18 in L
Shank Type
Spline/SDS Max
Size
2 1/2 in
Style
Thick Wall For SDS-MAX Or Spline
Type
Two Piece

Manufacturer Information

Brand
Milwaukee
Sub Brand
MILWAUKEE

General Product Info

12-Digit UPC
045242106004
GTIN
00045242106004
Used With
48-03-3564 12 in, 48-03-3565 18 in Thick Wall Core Bit Shanks

Dimensions

Depth
7.25 in
Diameter
2-1/2 in
Flute Length
4-1/16 in
Length
5.0 in
Shank Diameter
0.0 in

Certifications & Compliance

Country of Origin
Japan
