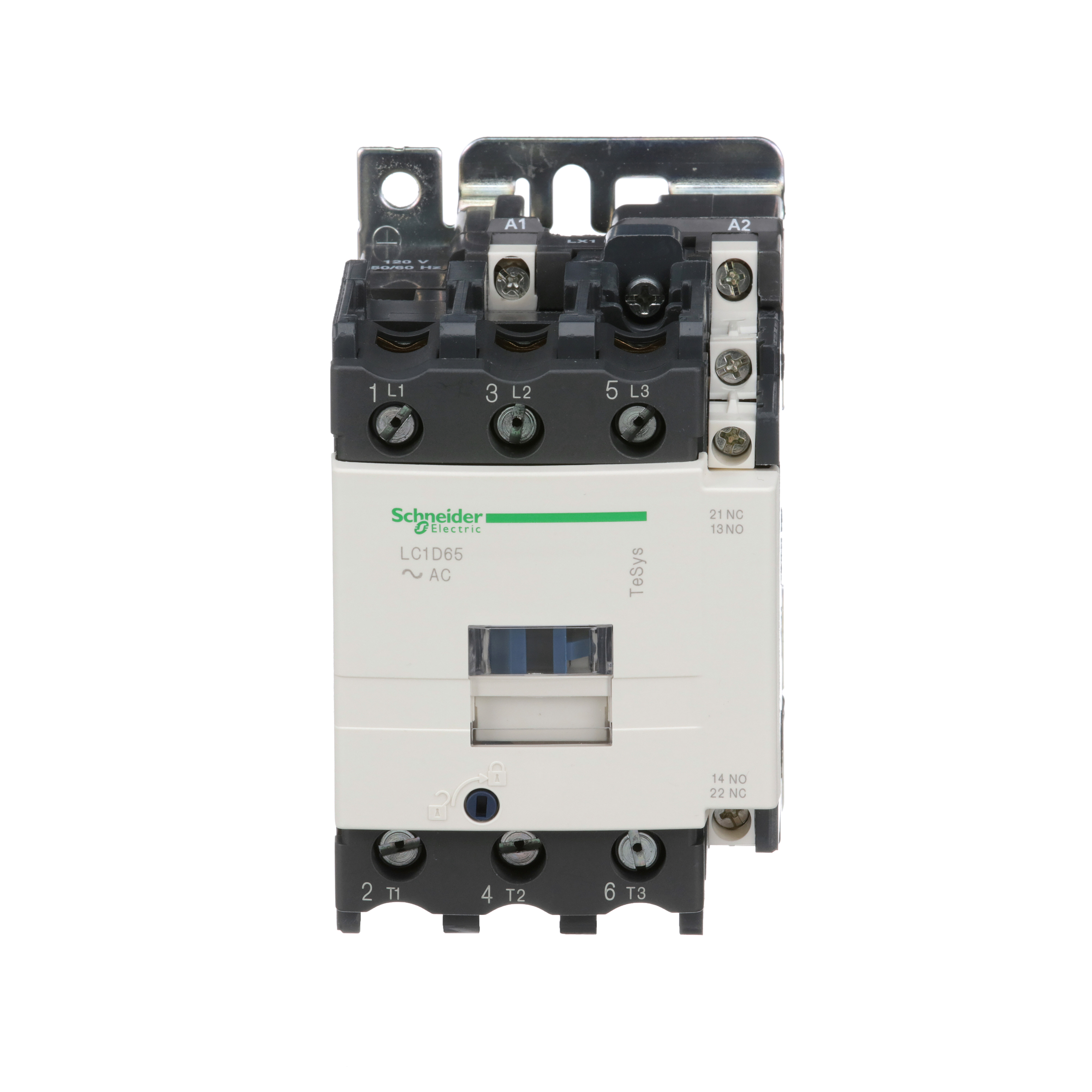

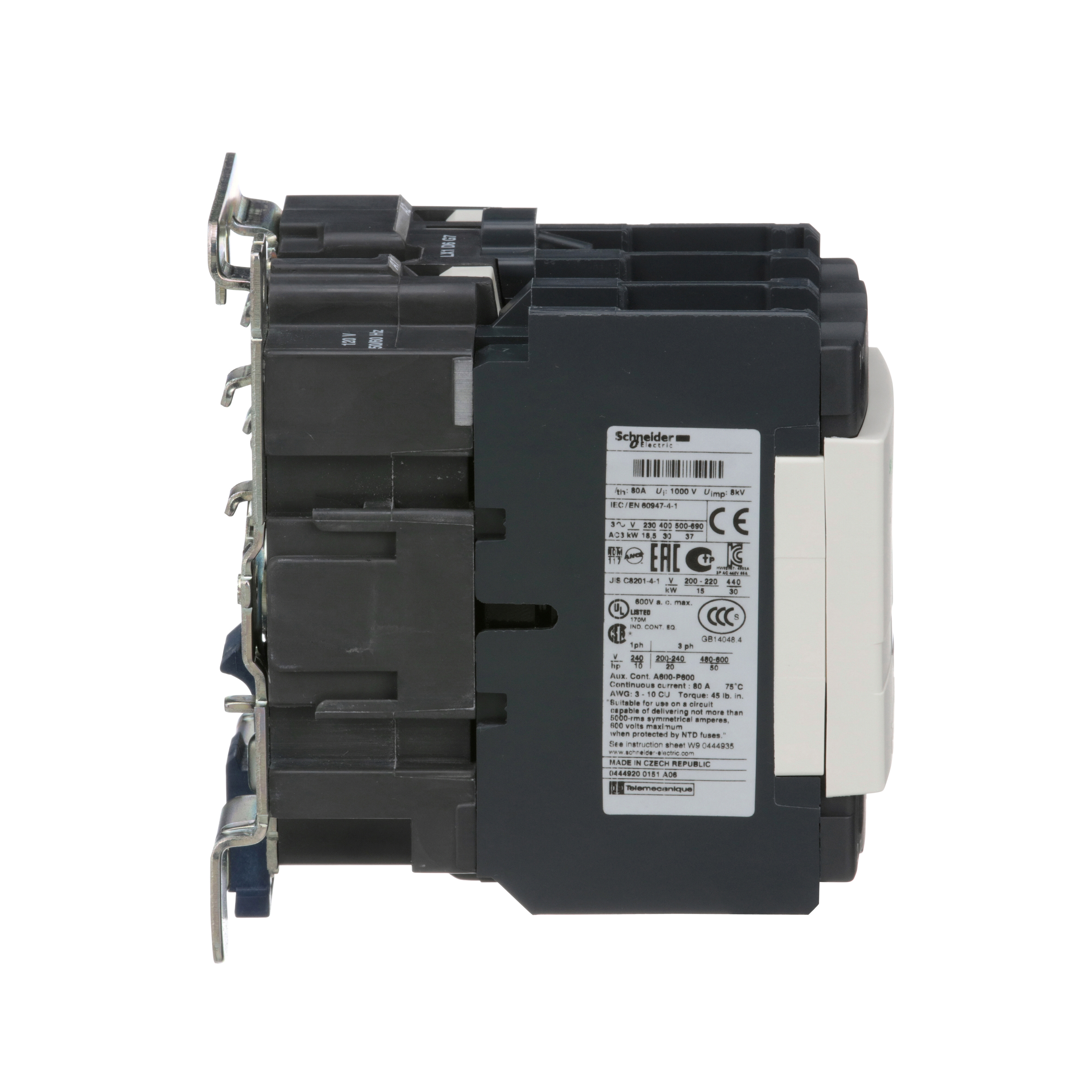

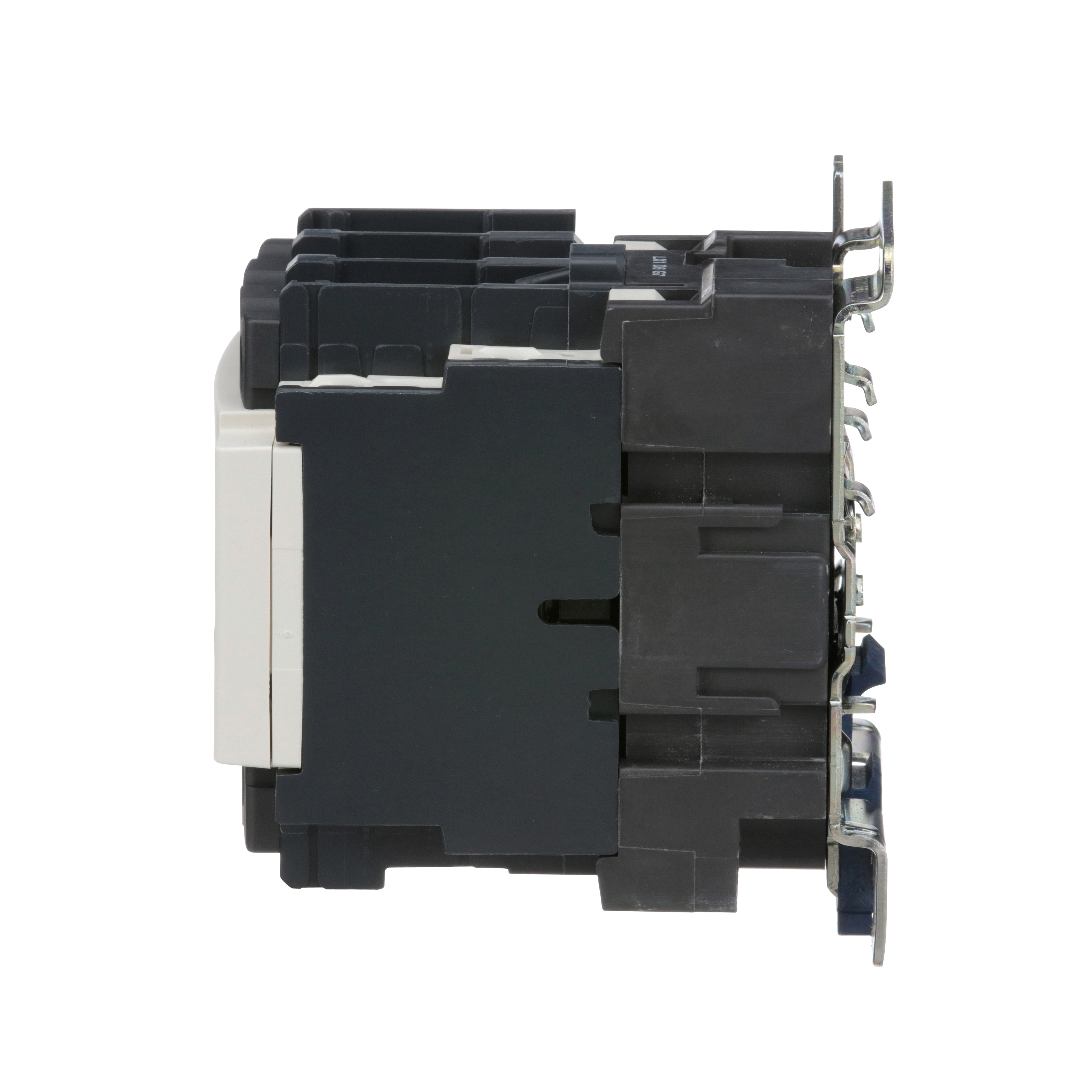

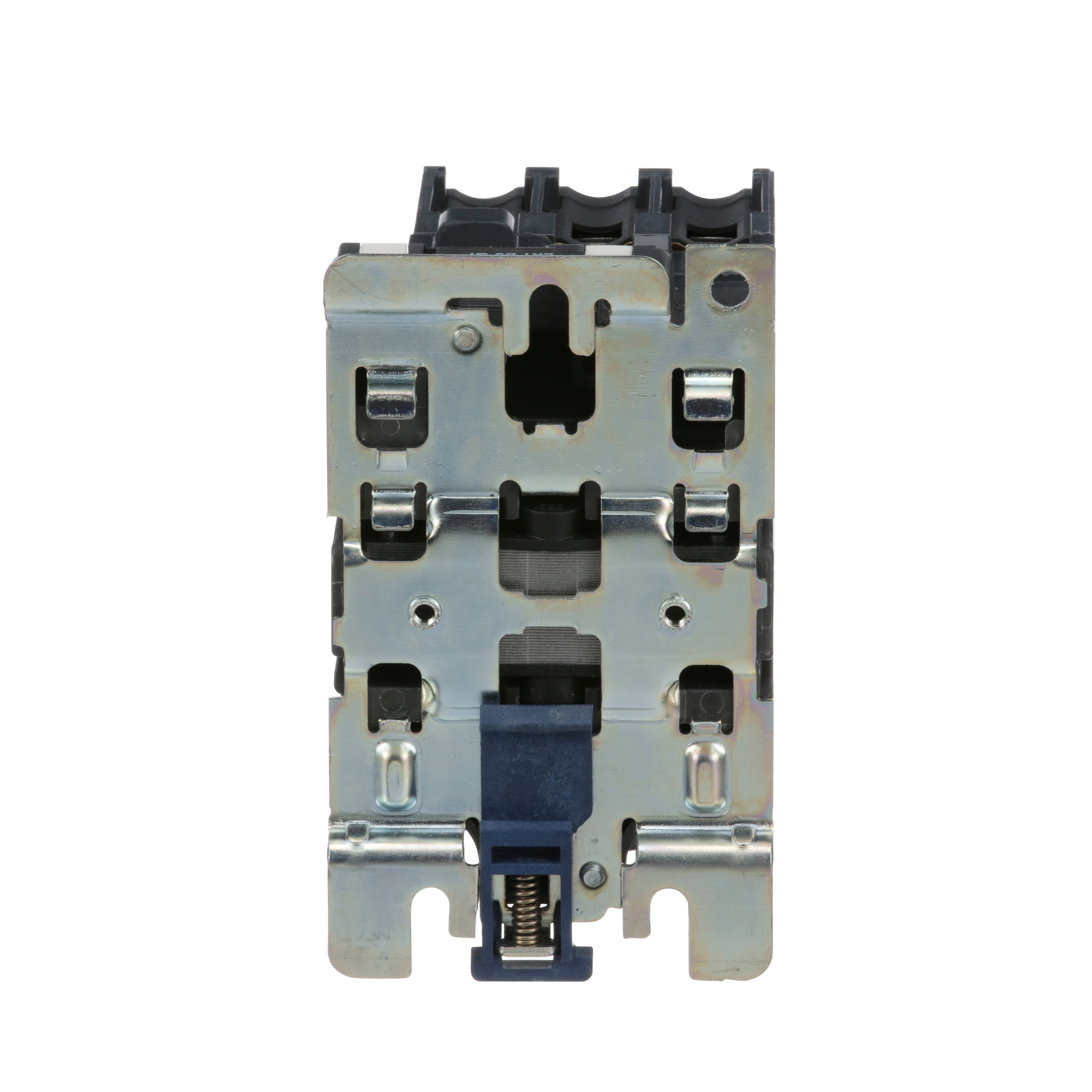

Product image for TESYS D IEC CONTACTOR, 65 A, 3 P, 50 HP AT 480 VAC, NONREVERSING, 120 VAC 50/60 HZ COIL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

TESYS D IEC CONTACTOR, 65 A, 3 P, 50 HP AT 480 VAC, NONREVERSING, 120 VAC 50/60 HZ COIL

Manufacturer: Schneider | Square D | Catalog # LC1D65G7 | Electrozad South Part # 311265
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Technical Drawing
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (30kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60..C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Technical Information

Applications
MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
120 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ
Contact Configuration
1 NO + 1 NC,3 NO
Contact Rating
10 A 60 A°C CONTROL CIRCUIT-80 A 60 A°C POWER CIRCUIT
Impedance
1 MOhm - Ith 80 A 50 Hz For Power Circuit
Net Weight
1.4 kg
Operating Cycles
3600 cyc/h 140 °F (60 °C)
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Range
TeSys
Size
119 MM,127 MM,75 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINAL 1 X 1-4 MMA²SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-25 MMA²FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-35 MMA²FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-35 MMA²SOLID WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 2 X 1-4 MMA²SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 1 X 1-4 MMA²FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 2 X 1-2.5 MMA²FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW TERMINALS-POWER CIRCUIT SCREW CLAMP TERMINAL 2 X 1-25 MMA²SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINAL 2 X 1-4 MMA²FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 1 X 1-35 MMA²FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINAL 1 X 1-35 MMA²SOLID WITHOUT CABLE END
Type
CONTACTOR
Voltage
690 V
Wattage
6.4 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS D

General Product Info

12-Digit UPC
785901436973
GTIN
03389110436976
Weight
1.4 kg

Dimensions

Depth
119 mm
Height
5 in
Warranty Length
18 mth
Width
2.95 in

Certifications & Compliance

Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS (pending),RINA,UL
Country of Origin
USA
