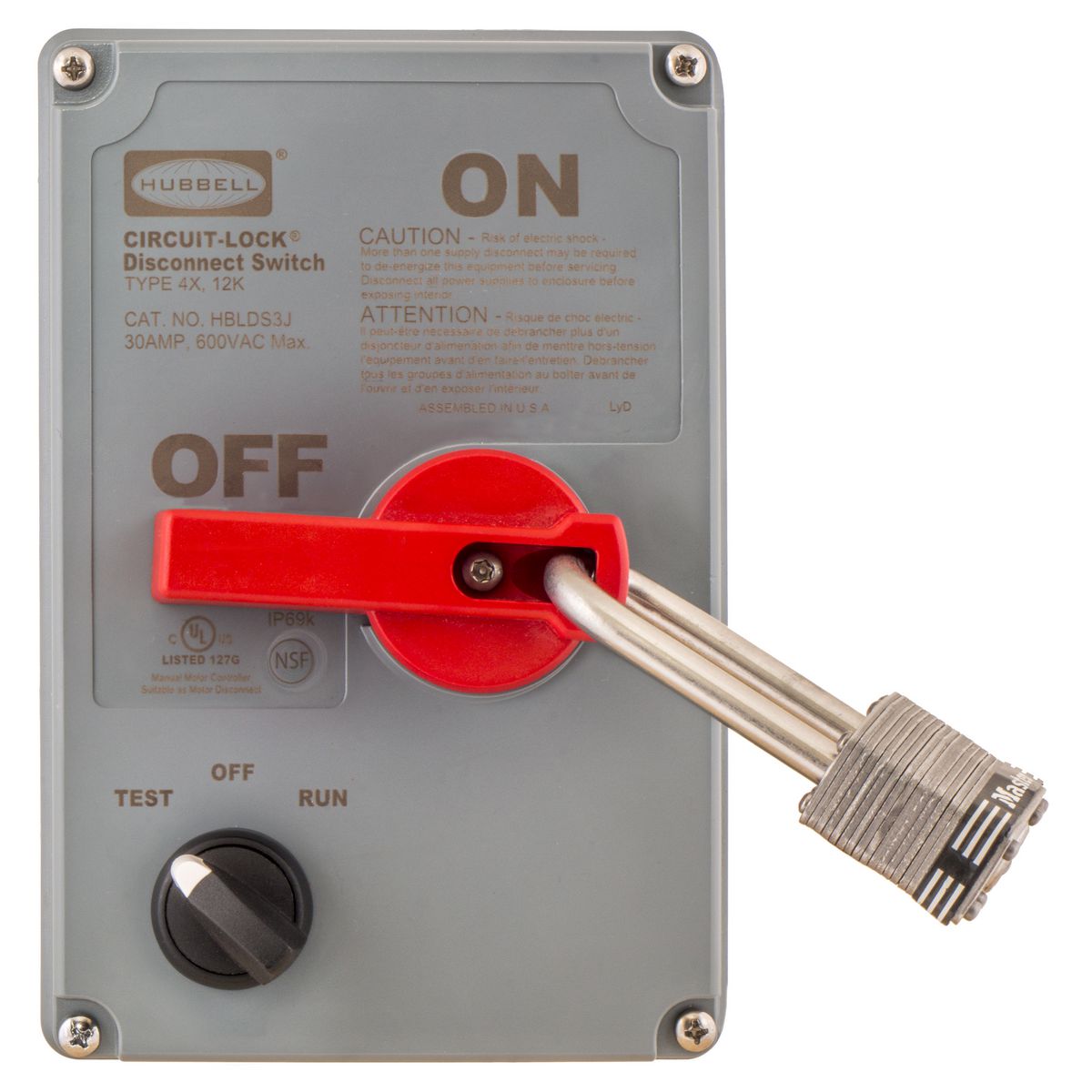

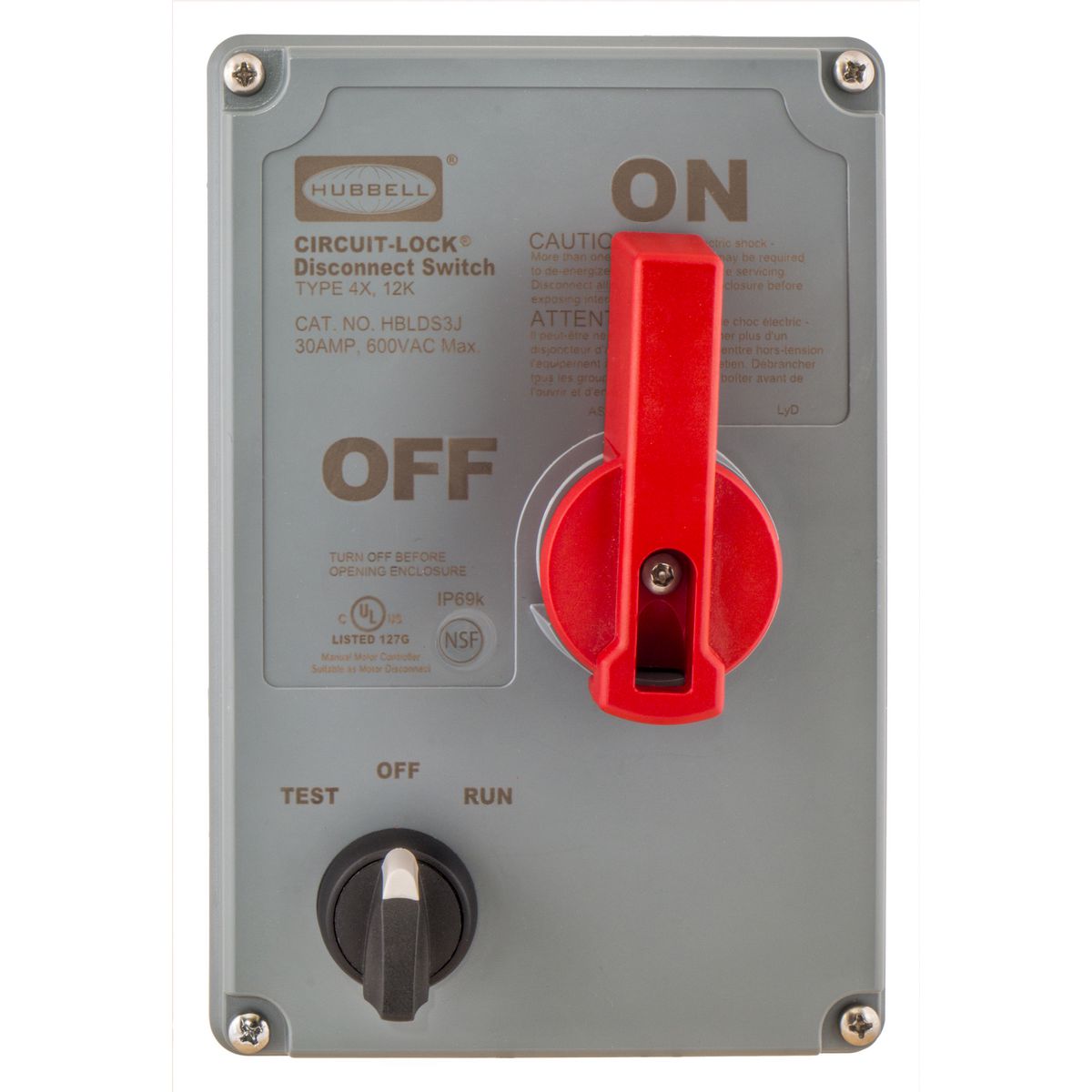

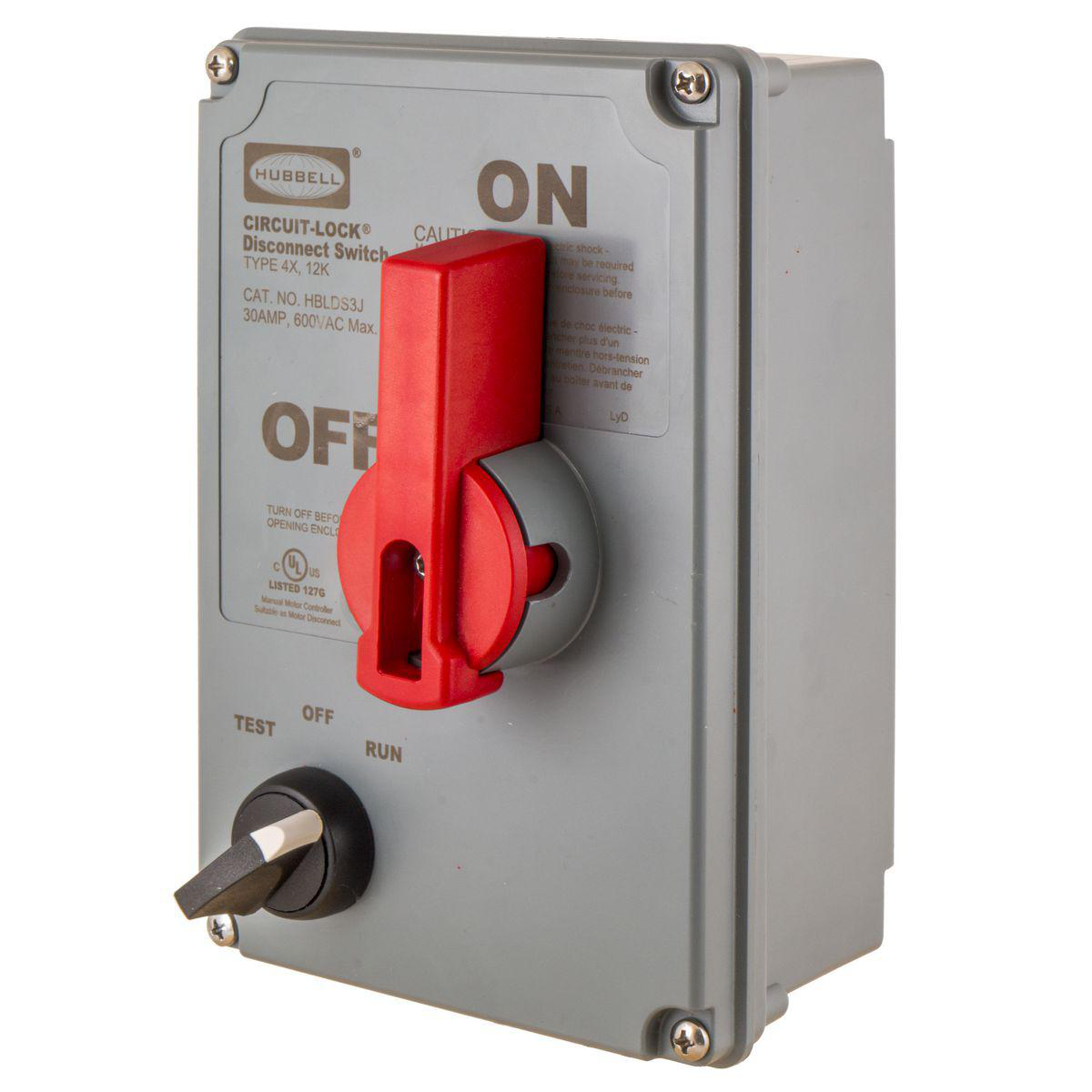

Product image for DISCONNECT, 30A UNFUSED, 4X, W/ J (MS90)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

DISCONNECT, 30A UNFUSED, 4X, W/ J (MS90)

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS3J | Electrozad South Part # 311072
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Disconnect Switches, 30A 600V AC,Unfused, With Jog, In NEMA 4X Enclosure

Technical Information

Amperage
30 A
Applications
Motor Starting w/o Overload Protection
Current
30 A
Enclosure Type
NEMA Type 4X
Number of Phases
Three
Number of Poles
3 Pole
Power Rating
18,000 W
Size
Standard Sized Product
Style
Heavy Duty
TC Connection
Pressure Screw Terminals
Temperature Rating
-40 C
Type
Disconnect Switches

Manufacturer Information

Brand
Hubbell
Sub Brand
Motor Disconnects

General Product Info

12-Digit UPC
783585457758
GTIN
00783585457758
Product Series
Non-Fused
Product UPC
78358545775
Shape
Square Top

Dimensions

Height
4.600 in
Length
8.600 in
Width
5.5 in

Certifications & Compliance

Country of Origin
Poland
Overview
  • Reversible interior accomodates top or bottom conduit opening
  • Certified by NSF for hygiene in food processing applications
  • IP69k and Type 4X,12K water ingress protection
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
