3.6A USB Type-A/Type-A Wall Outlet Charger with 20A Tamper-Resistant

Manufacturer: Leviton Manufacturing | Catalog # T5832-GY | Electrozad South Part # 310695
*Call For Price*
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet Technical Drawing

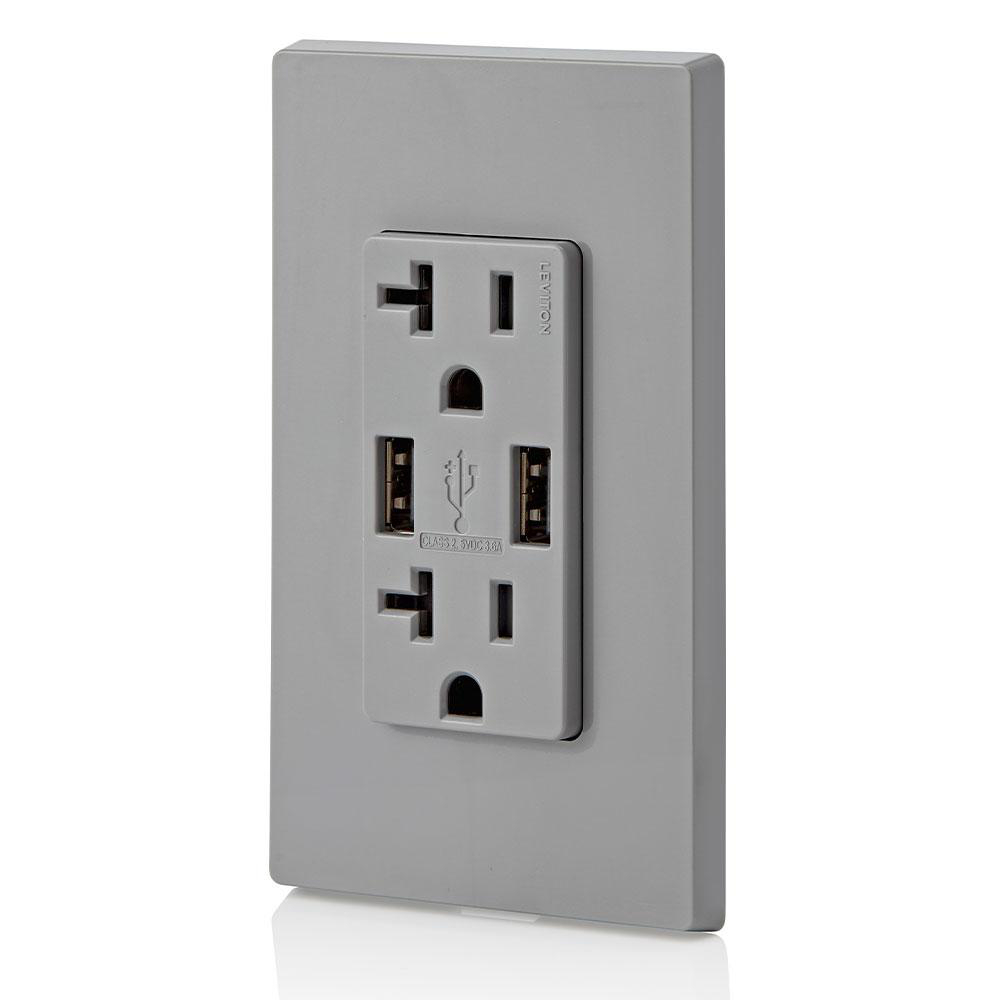

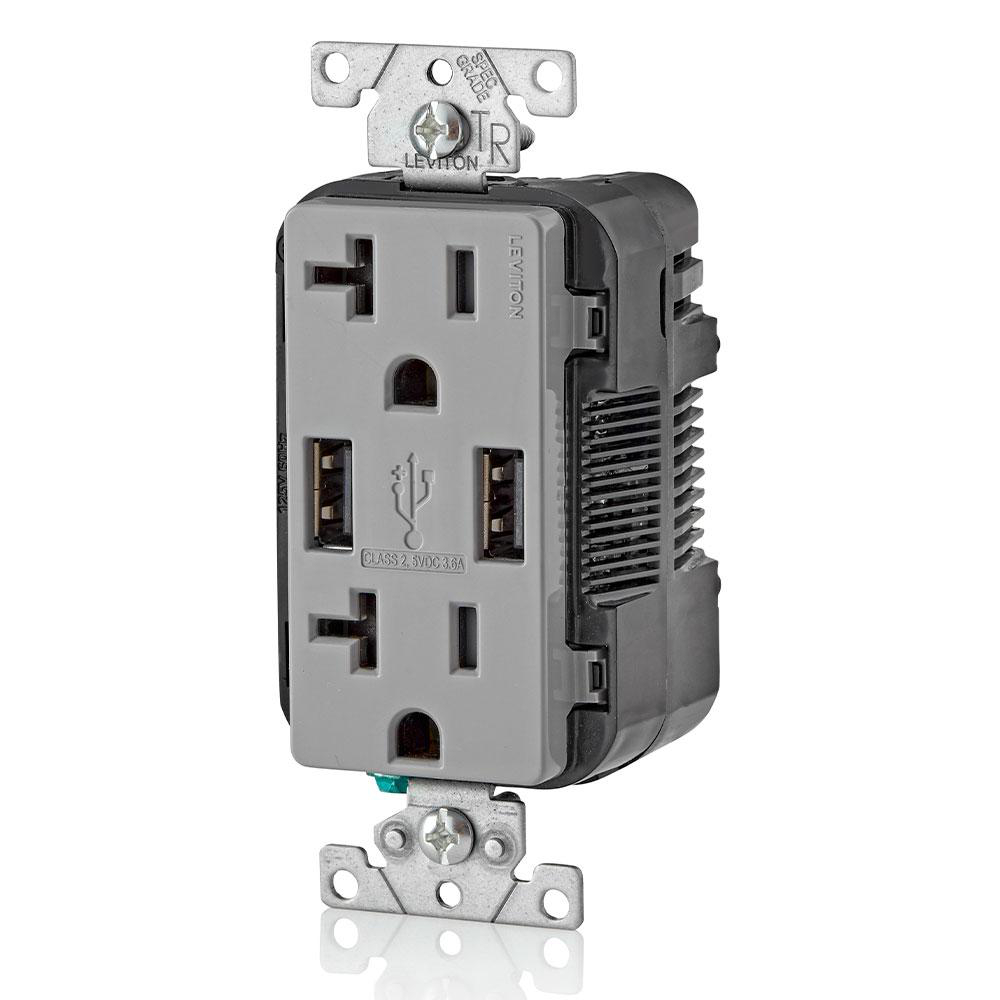

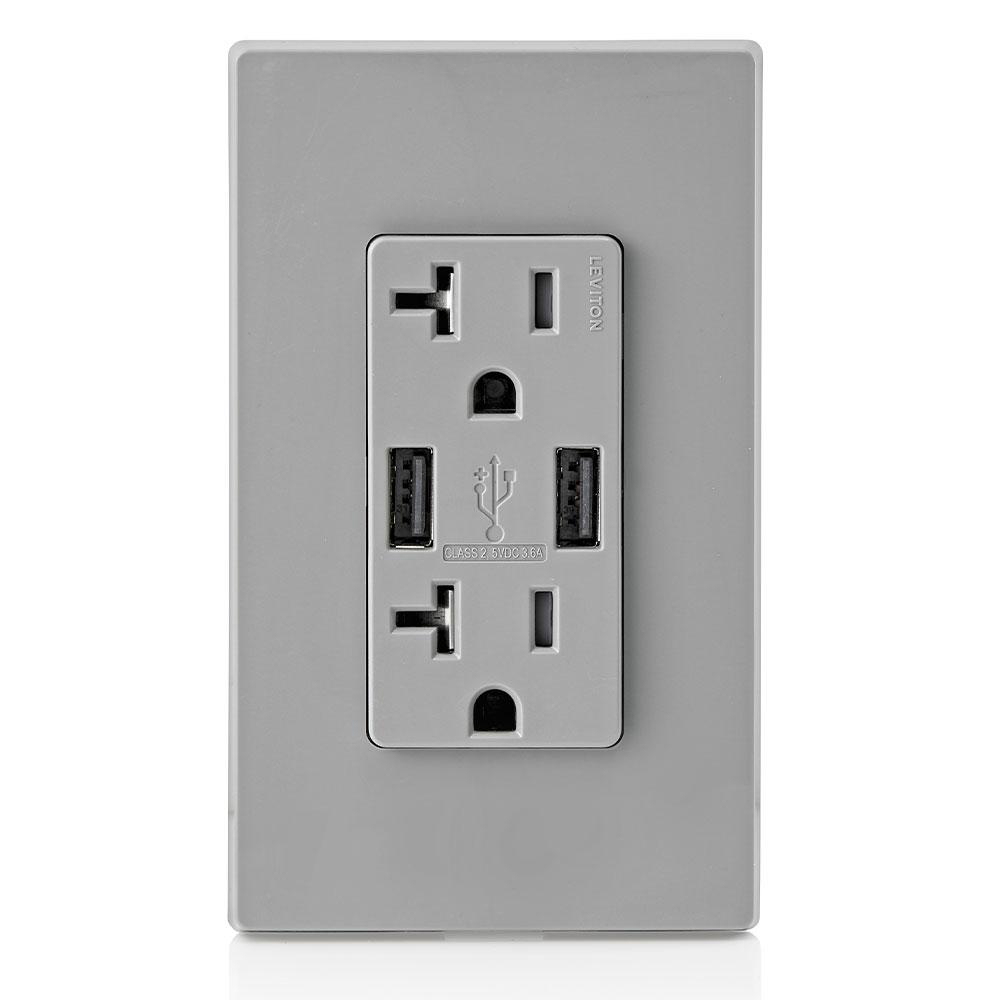

Combination Duplex Receptacle/Outlet and USB Charger. 20 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-20R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - Gray

Technical Information

Amperage
20 A
Applications
Residential / Commercial
Body Material
Thermoplastic,Thermoplastic
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Residential/Commercial Specification,Residential/Commercial Specification
Grounding
Grounding,Grounding
Horsepower
1 hp
NEMA
5-20R
Operating Temperature
-10 degrees C
Standard
CCSAus
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
12-14 lb-in
Type
Type A/A Duplex Receptacle
Voltage
125 V

Manufacturer Information

Brand
Leviton
Sub Brand
USB Devices

General Product Info

12-Digit UPC
078477683941
Color
Gray,Gray,Gray
GTIN
00078477683941
Product Type
Outlet/USB Combo

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
