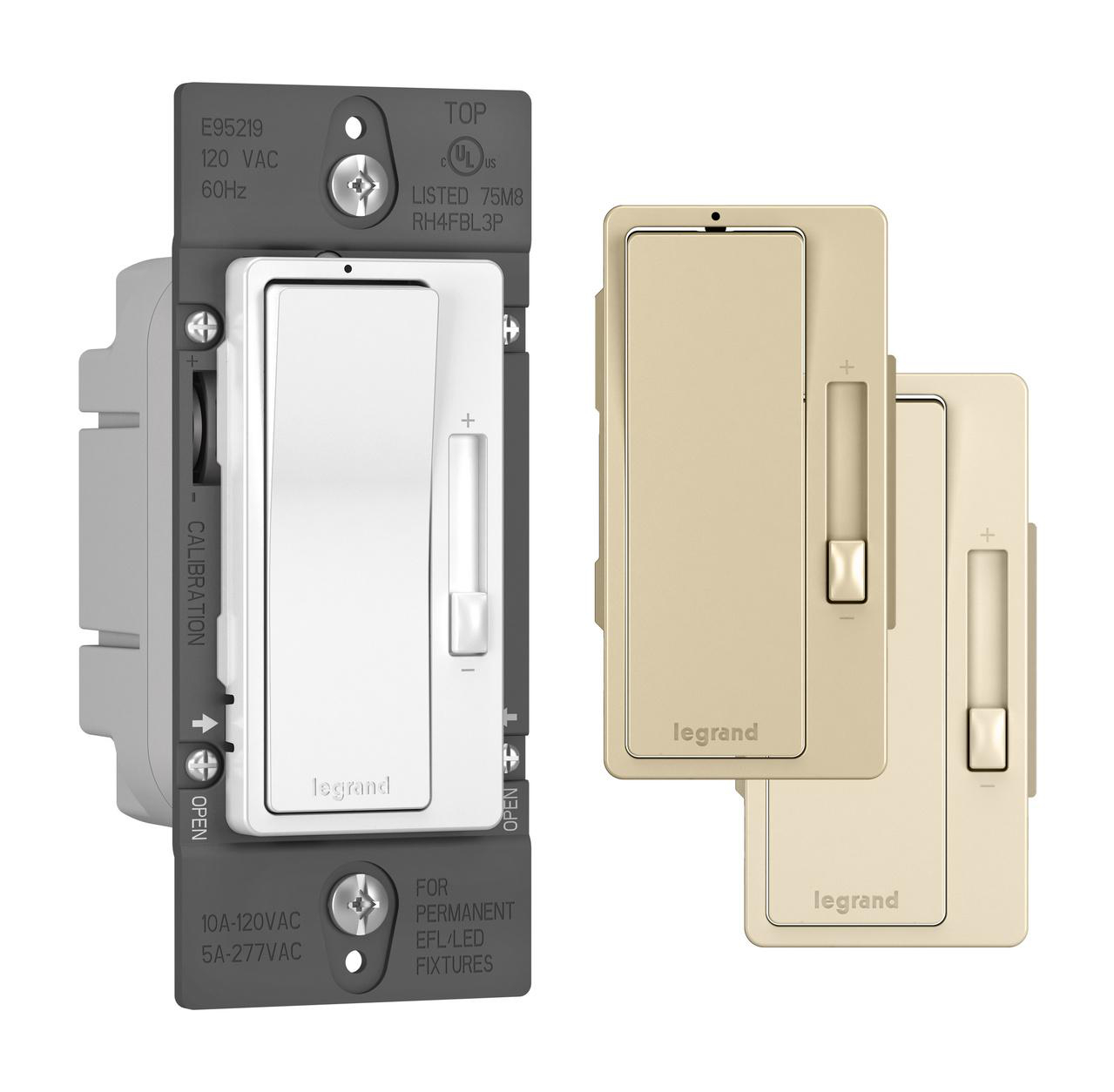

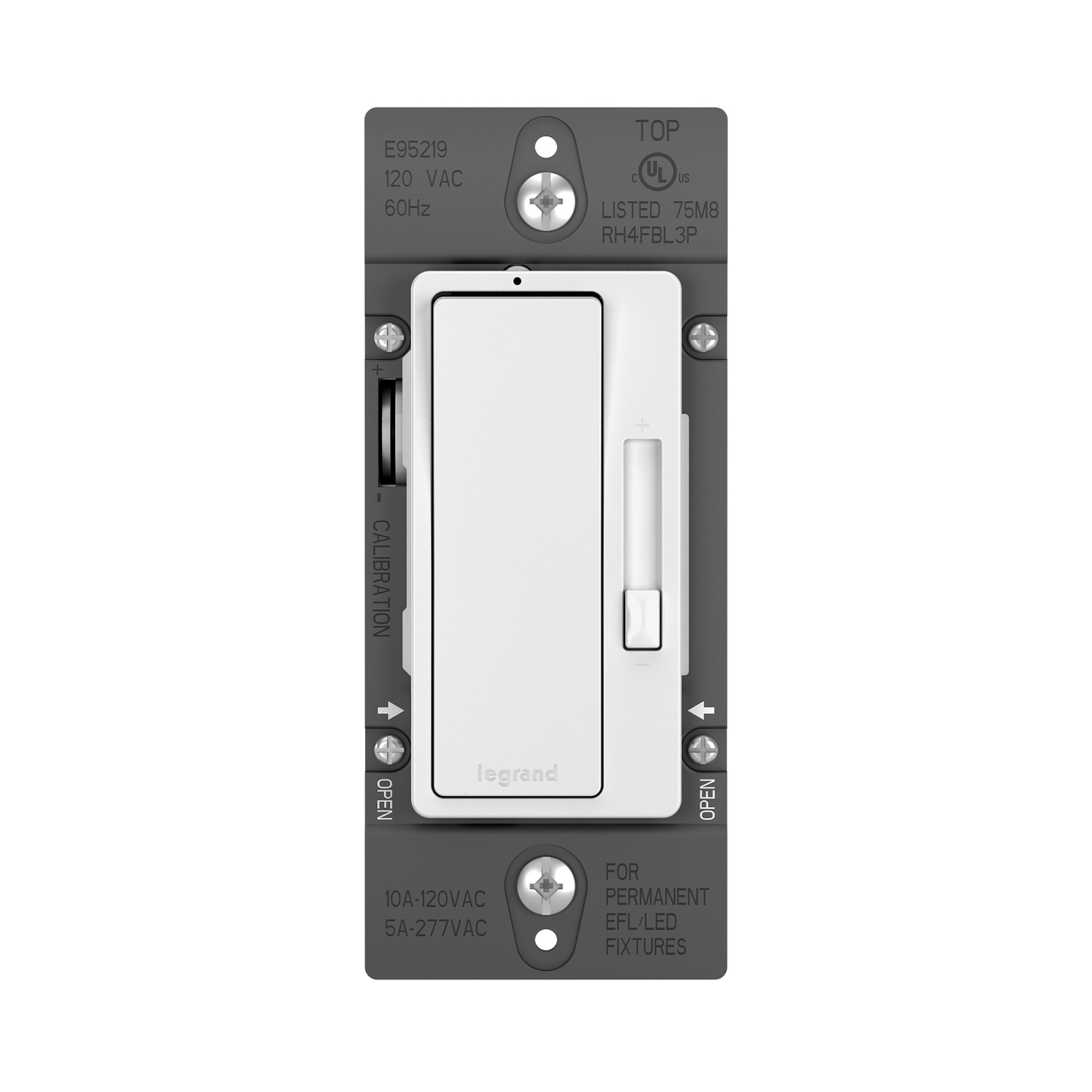

Dimmer LED/fluorescent single pole/3-way 0-10V preset tri-color

Manufacturer: Watt Stopper | Catalog # RH4FBL3PTC | Electrozad South Part # 309990
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Manufacturer Warranty
For use with 0-10V, 4 wire, 120V 10A/277V 5A fluorescent and LED dimming ballasts. Convenient operation combines ON/OFF paddle switch with separate slider for dimming control. Preset, single pole and 3-way operation. White LED glows when dimmer is OFF for easy location in the dark. Wider slide control for easier dimming operation. Constant memory returns lights to previous level after a power failure. No derating required for one- and two-gang applications.

Technical Information

Amperage
15 A
Applications
For 0 - 10 V LED or Fluorescent Lighting Control, Residential Applications
Bulb Compatibility
Fluorescent,LED
Connection Type
Screw Terminal
Enclosure
Thermoplastic
Frequency
60 Hz
Indoor Outdoor
Indoor
Load Type
Fluorescent,LED
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
1
Number of Switches
1
Operating Temperature
0 - 40 degrees C
Switch Type
Paddle,Slider
TC Connection
Screw Terminals
Type
3 Way, Slide Handle, Paddle, Multi-Location, Phase Cut-Off
Voltage
120 V
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007053319
Color
Ivory,Light Almond,White
Environmental Conditions
< 95% RH Non-Condensing
Finish
Matte
GTIN
00785007053319

Dimensions

Depth
1.25 in
Height
4.25 in
Warranty Length
Limited Lifetime
Width
1.75 in

Certifications & Compliance

Certifications
CULUS
Country of Origin
China
