Dimmer INC single pole/3-way 1100W 120V preset tri-color

Manufacturer: Watt Stopper | Catalog # RH1103PTC | Electrozad South Part # 309989
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Manufacturer Warranty

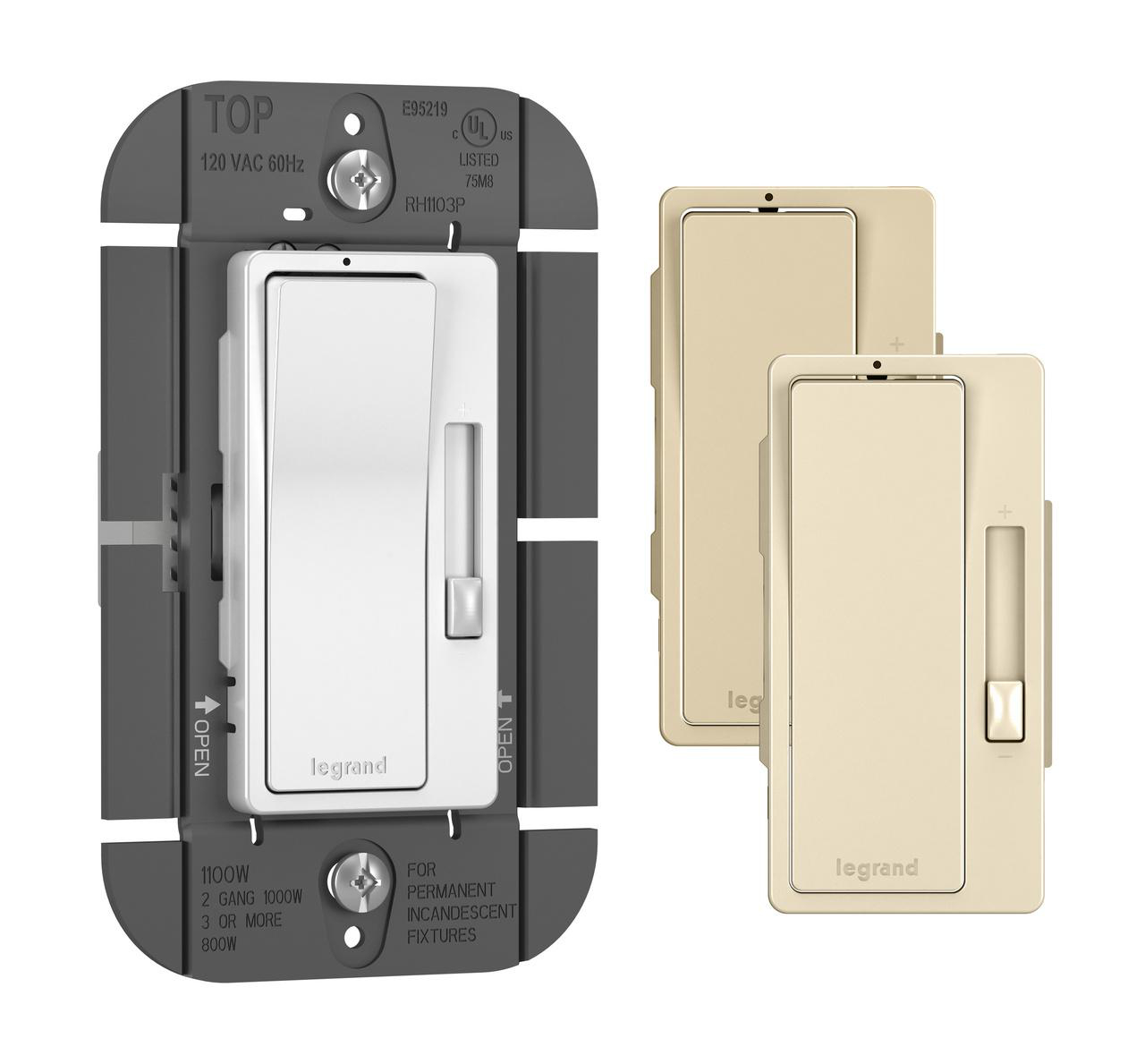

Convenient operation combines ON/OFF paddle switch with separate slider for dimming control. White LED glows when dimmer is OFF for easy location in the dark. Constant memory returns lights to previous level after a power failure. Higher ratings. Single pole and 3-way operation. Works with standard 3-way switches and wiring. Screw-pressure-plate backwire terminals save time, space and money. Comes with three interchangeable face colors: Ivory, White, Light Almond; six additional face cover colors available but sold separately.

Technical Information

Action
Paddle/Slide
Actuator
Paddle switch with Slider
Amperage
15 A
Applications
For Residential Use
Bulb Compatibility
Incandescent
Connection Type
Screw Terminal
Enclosure
Thermoplastic
Frequency
60 Hz
Indoor Outdoor
Indoor
Load Rating
120V 1100W (Halogen), 120V 1100W (Incandescent)
Load Type
Halogen,Incandescent
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
1
Number of Switches
1
Operating Temperature
0 - 40 degrees C
Power Rating
1100 W
Style
Rocker
Switch Type
Paddle,Slider
TC Connection
Screw Terminals
Type
1-Gang, 3-Way
Voltage
120 V
Wattage
1100 W
Wire Size
12 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007053272
Color
Ivory,Light Almond,White
Environmental Conditions
0 - 95% Humidity
Finish
Matte
GTIN
00785007053272

Dimensions

Depth
1.25 in
Height
4.25 in
Warranty Length
Limited Lifetime
Width
1.75 in

Certifications & Compliance

Certifications
CULUS
Country of Origin
China
