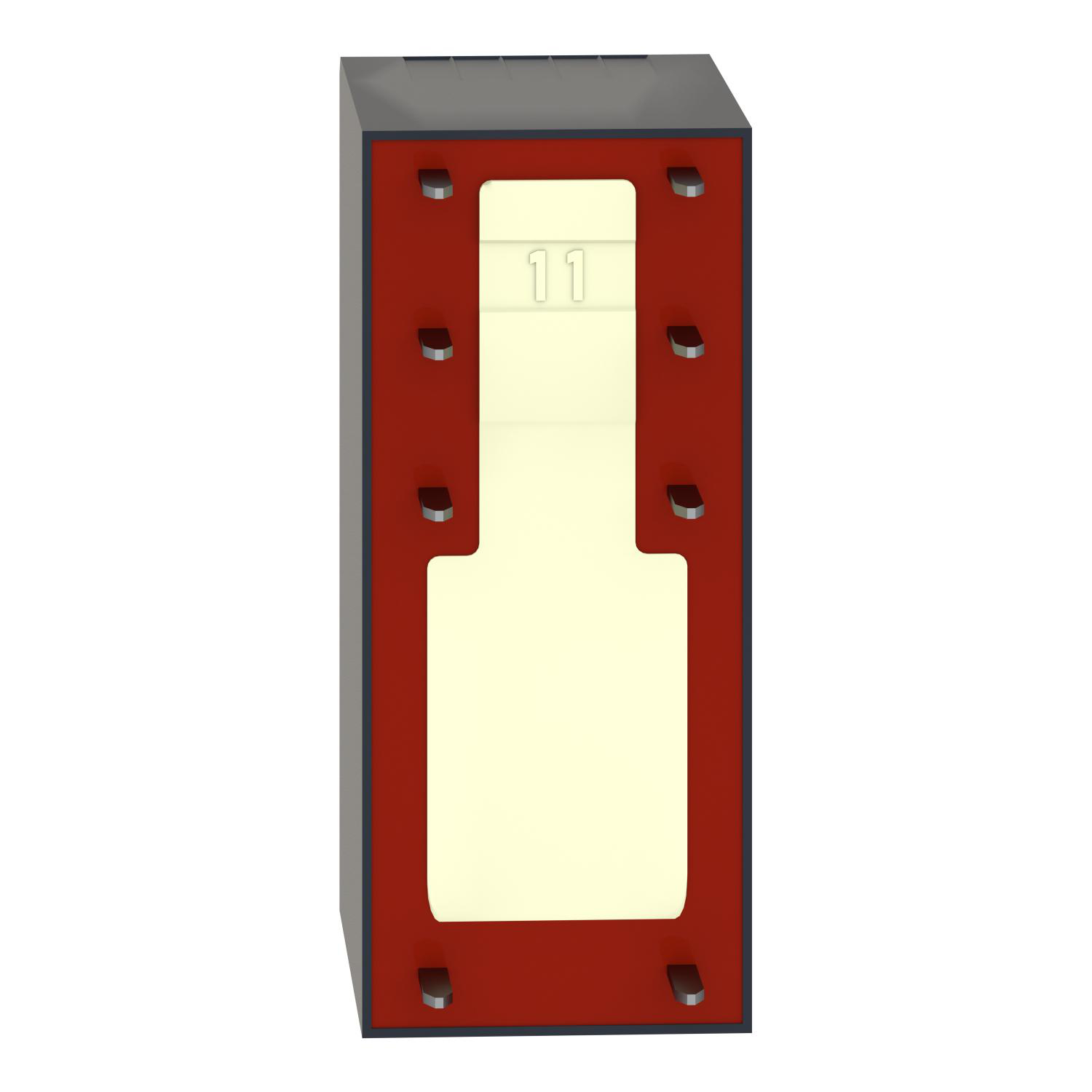

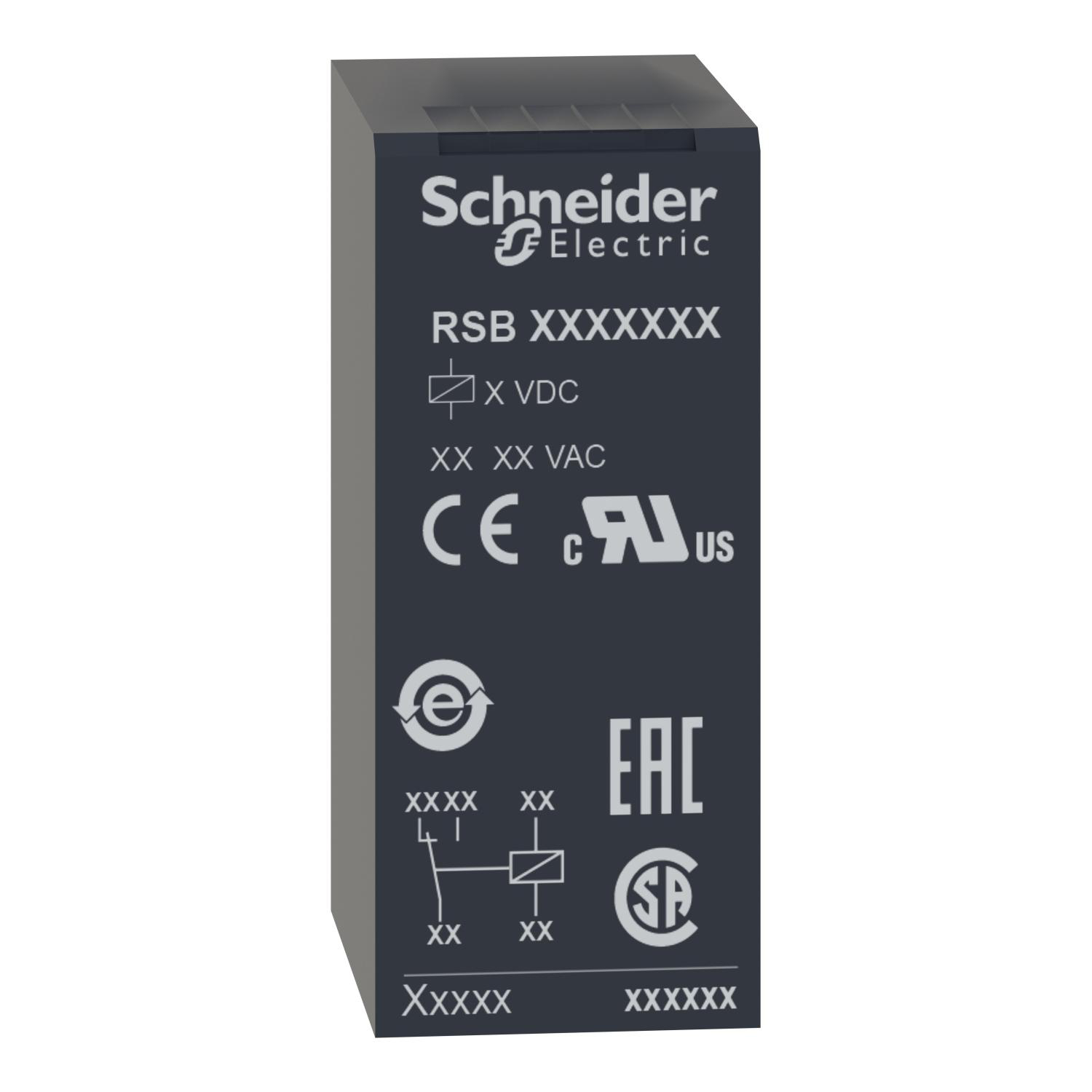

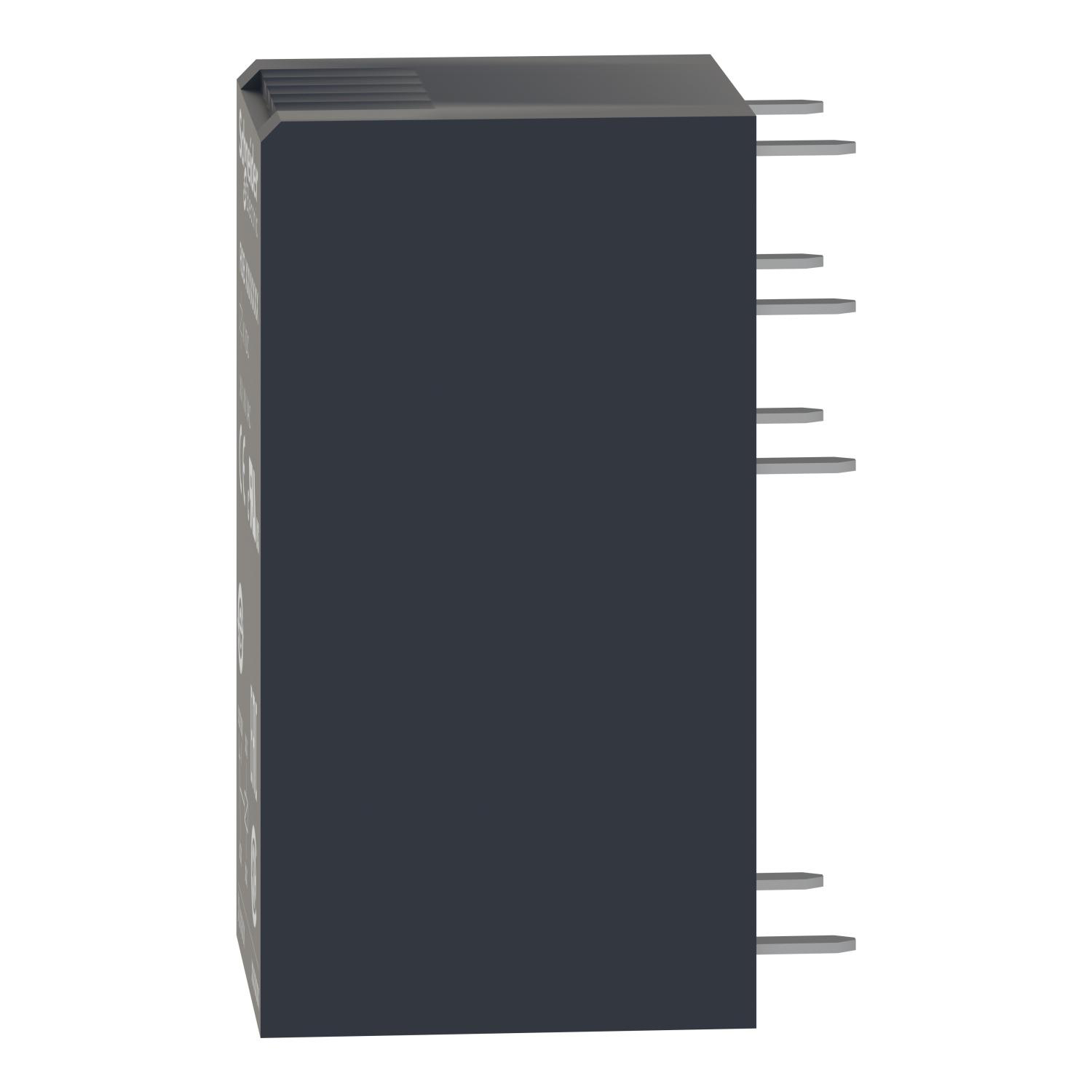

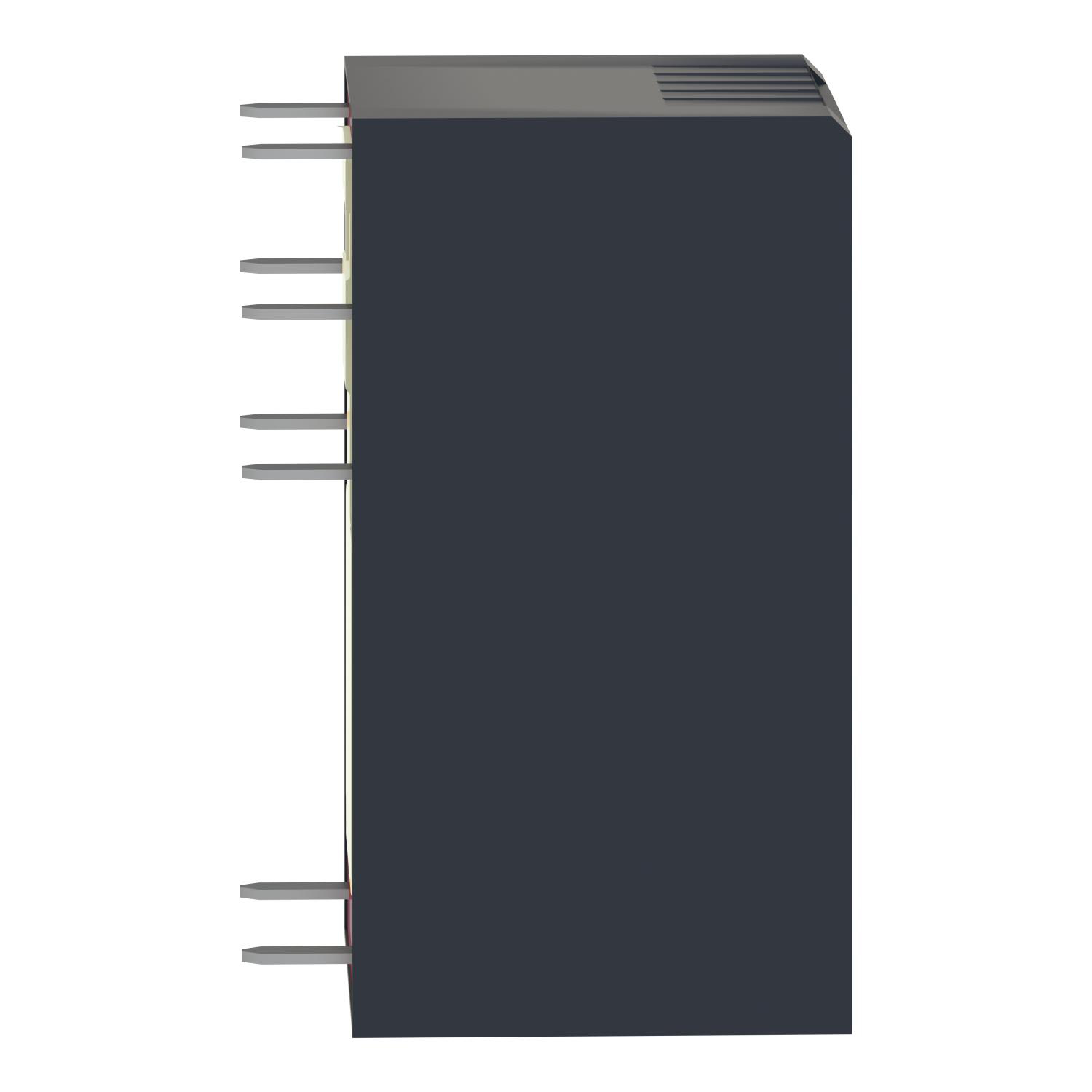

Product image for INTERFACE PLUG-IN RELAY, HARMONY ELECTROMECHANICAL RELAYS, 12A, 1CO, 24V DC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

INTERFACE PLUG-IN RELAY, HARMONY ELECTROMECHANICAL RELAYS, 12A, 1CO, 24V DC

Manufacturer: Schneider Kreuznach B & W | Catalog # RSB1A120BD | Electrozad South Part # 309088
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Contact Configuration
1 C/O
Contact Material
Silver Alloy
Control Type
Without push-button
Dielectric Strength
1000 V
Enclosure
IP 40 CONFORMING TO IEC/EN 60529
Line Rated Current
12 A
Net Weight
0.014 kg
Operating Cycles
<= 18000 Cycles/hour No-load,<= 600 Cycles/hour Under Load
Operating Temperature
-40-85 Adegrees C DC)
Resistance
1440 OHM (AC) AT 20 °C +/- 10
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
PRINTED CIRCUIT BOARD (PCB)
Type
Plug-in relay;Flat (PCB type)
Voltage
36 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSB

General Product Info

12-Digit UPC
338911025417
GTIN
03389110254136
Weight
0.014 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
CSA,EAC,UL
Country of Origin
USA
