MCCB HED4, 3P-15A 480VAC | Electrozad South

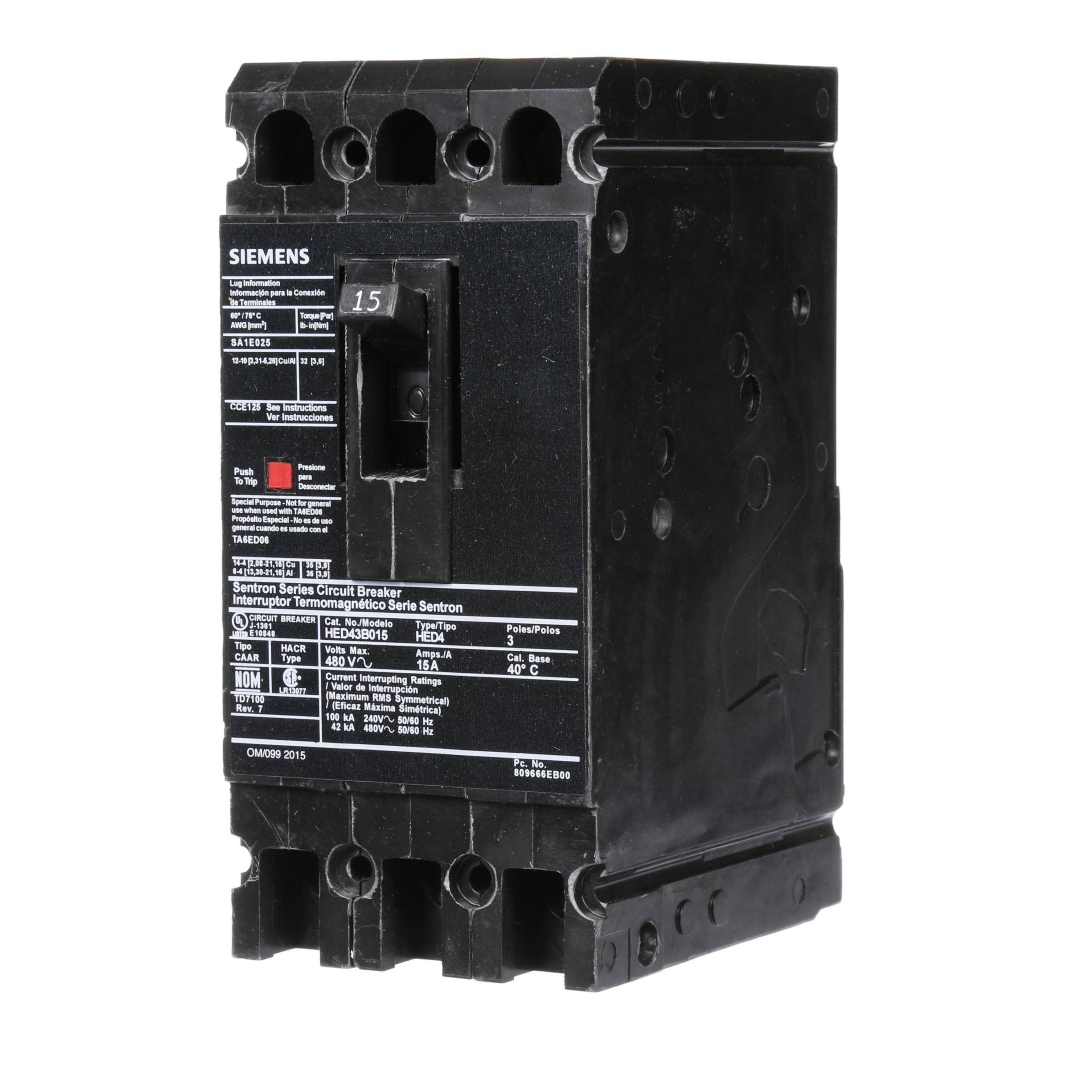

Product image for MCCB HED4, 3P-15A 480VAC
Image thumbnail 0
Image thumbnail 1
To:
CC:

MCCB HED4, 3P-15A 480VAC

Manufacturer: Siemens Distribution | Catalog # HED43B015 | Electrozad South Part # 308491
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. 15A 3-POLE (42KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.

Technical Information

Actuator
Varying
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
ED
Interrupt Rating
42KAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
TC Connection
N/A
Trip Range
N/A
Trip Type
Thermal-Magnetic
Type
HED4

Manufacturer Information

Brand
Siemens Canada
Sub Brand
Molded Case Circuit Breakers

General Product Info

12-Digit UPC
783643210097
GTIN
00783643210097

Dimensions

Height
19.8 in
Length
6.400
Width
15.100
