Occupancy Sensor, PIR, Wall Switch, 1600SF, 120-277V, Ivory, Decora®

Manufacturer: Leviton Manufacturing | Catalog # ODS06-IDI | Electrozad South Part # 307516
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

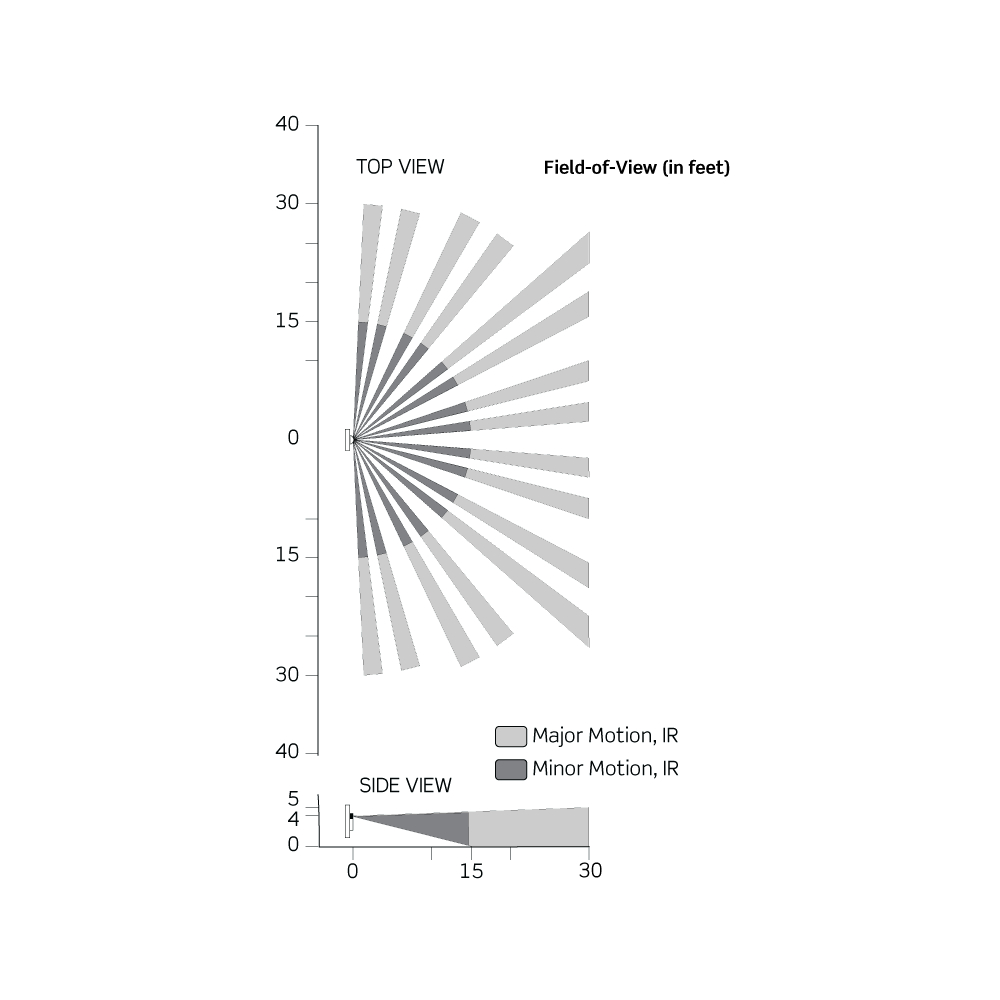

Passive Infrared wallbox occupancy sensor, Single Relay, photocell controlled, Low profile, 180 degree field of view, 1600 sq ft, Adjustable Blinders, Time Delay 30s-30m. 120/277VAC, 60Hz, AutoON/ManualON selectable, CEC Title 24 Compliant, UL Listed, RoHS Compliant, Color: Ivory

Technical Information

Coverage
1600 sq-ft
Frequency
50 Hz
Grade
Commercial
Mounting Type
Wall Switch
Operating Temperature
50 degrees C
Sensor Type
Wall Switch

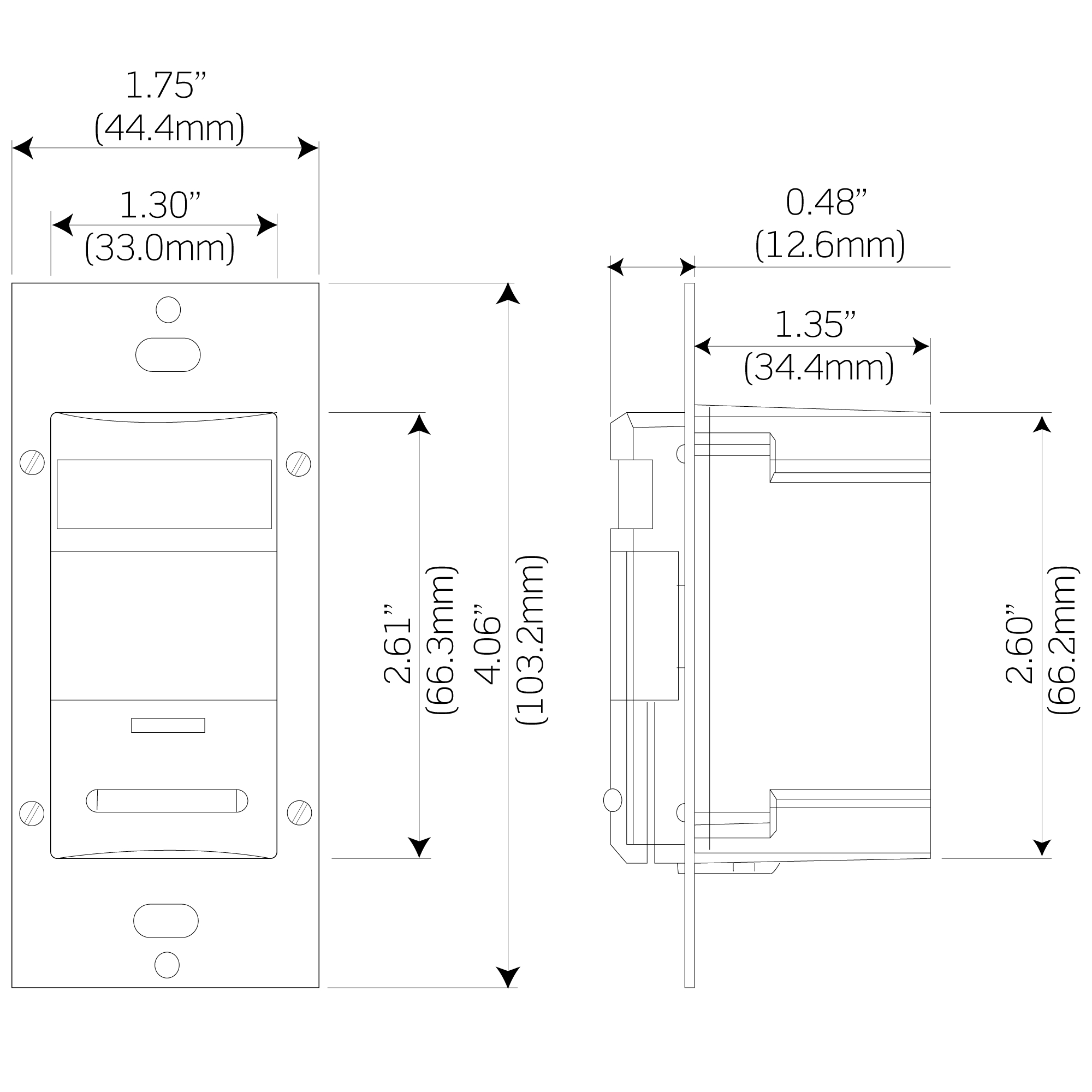

Size
66.2 mm
Standard
CSA,E2186,UL
Switch Type
Single-Pole
Type
OCCUPANCY SENSOR
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477705285
Color
Ivory
GTIN
00078477705285

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
