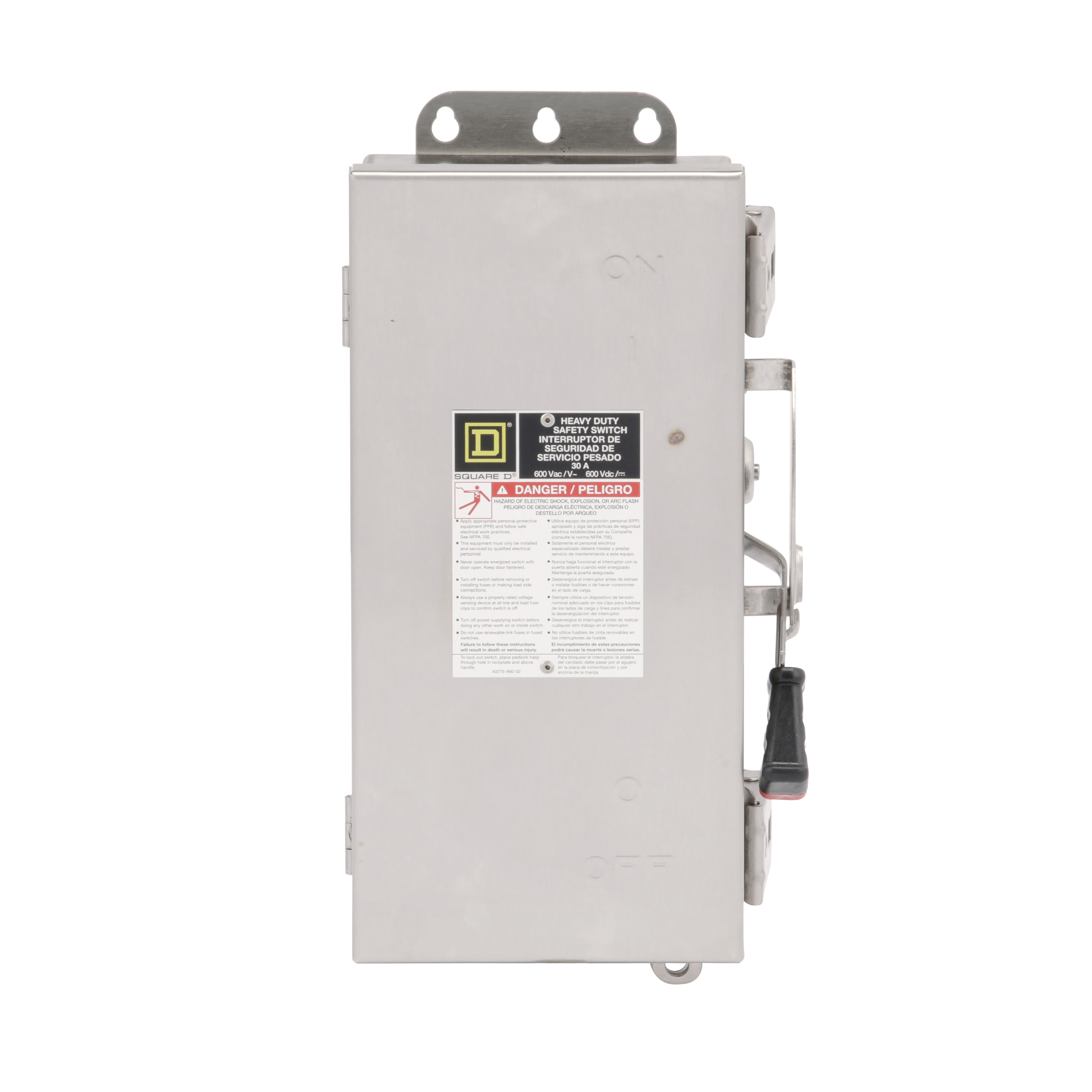

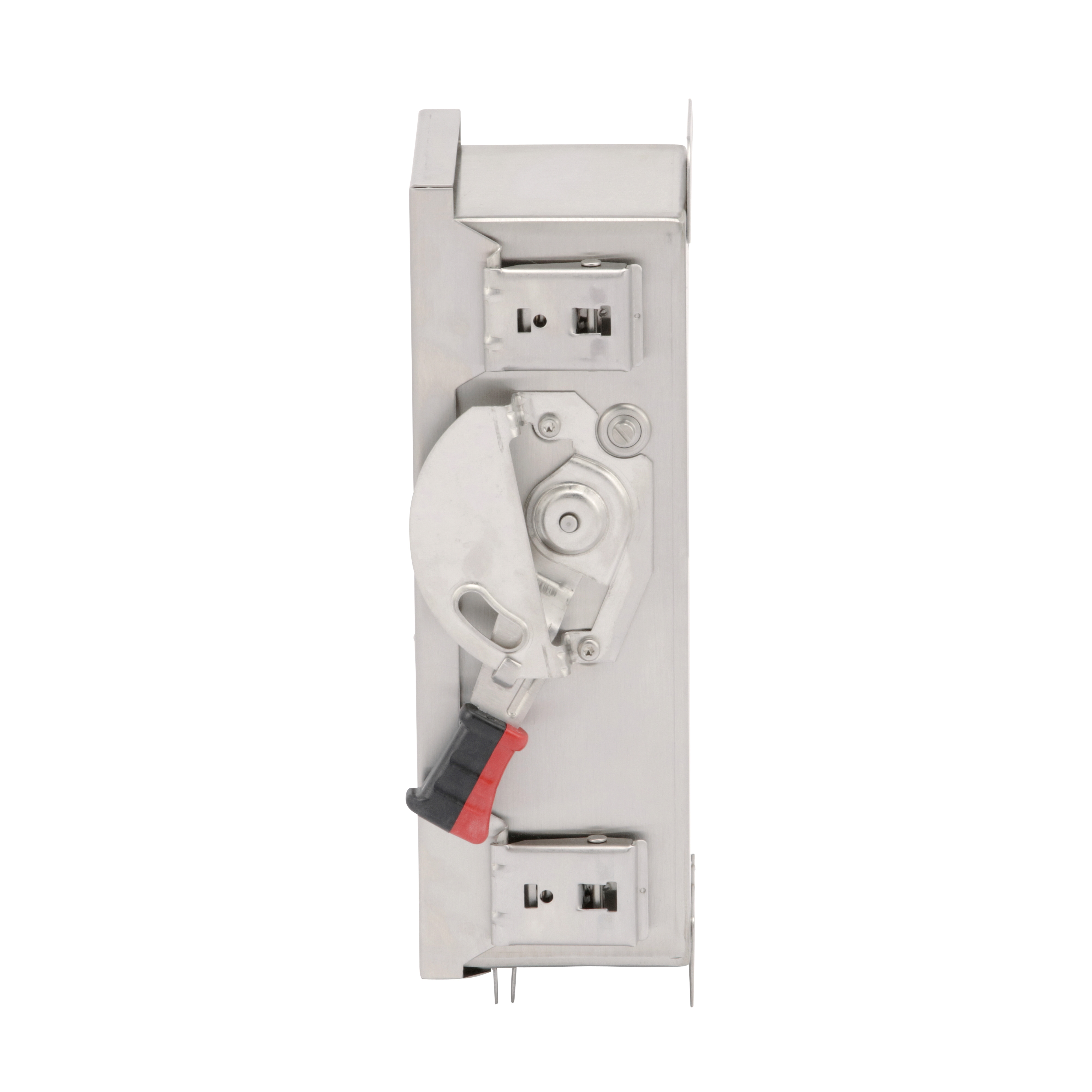

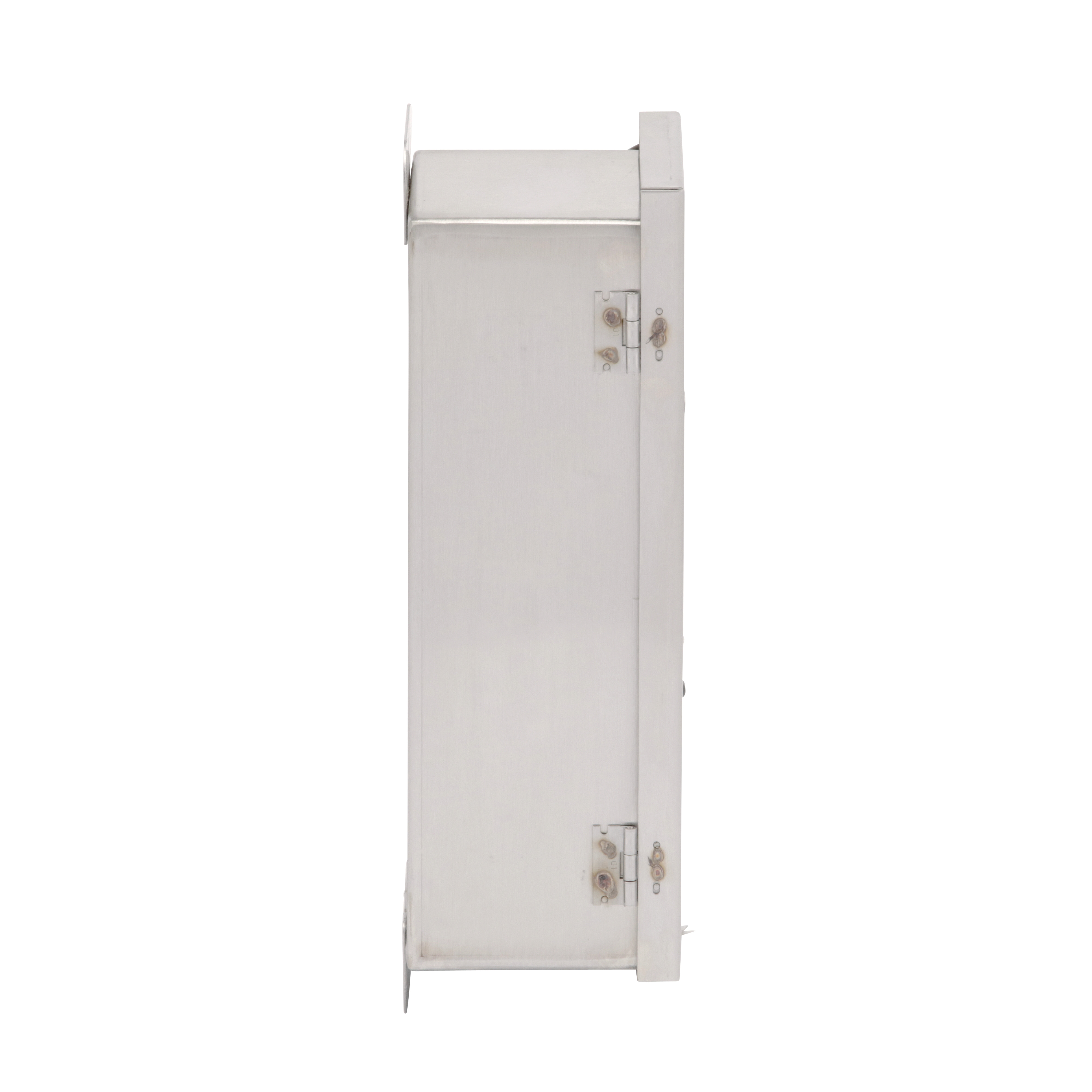

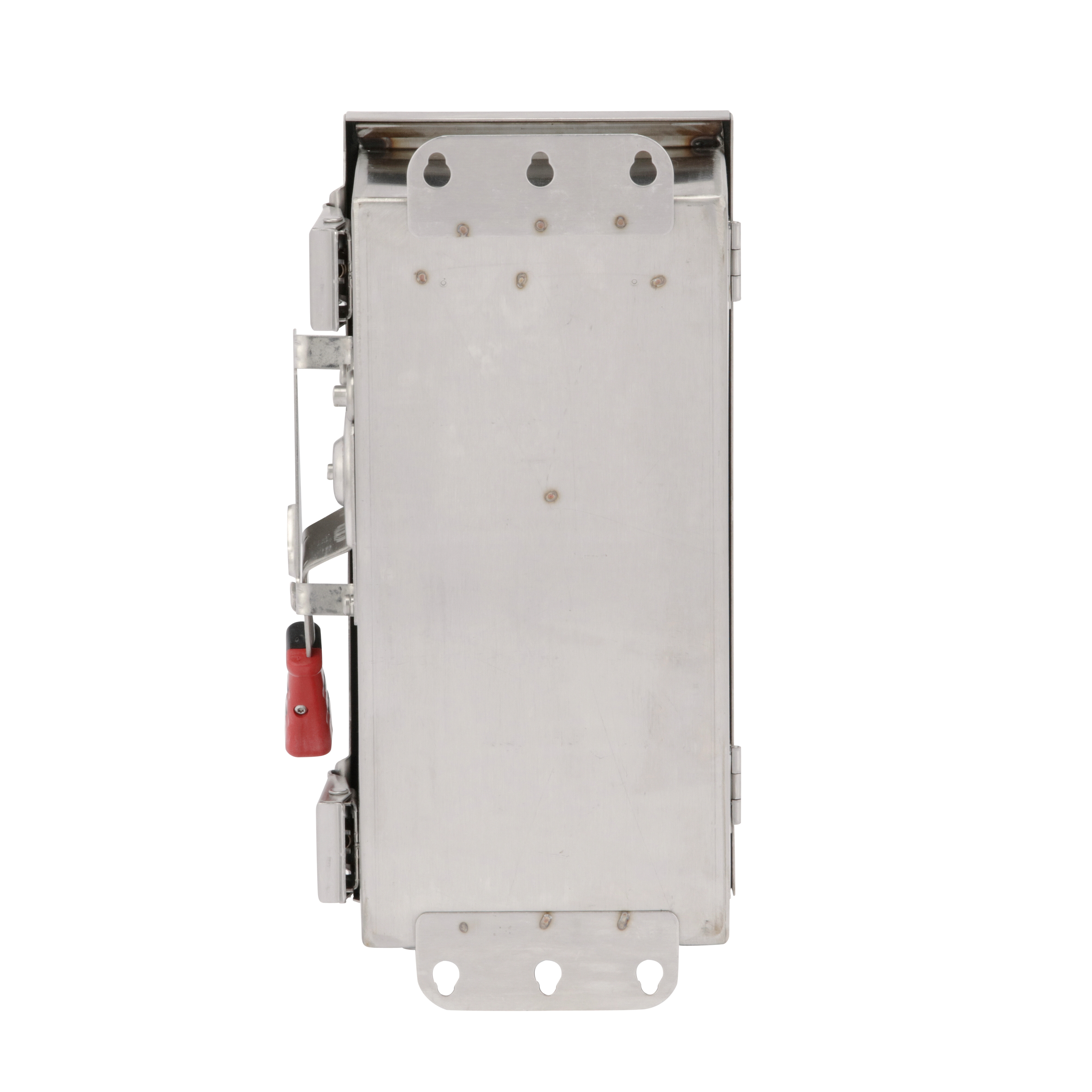

SAFETY SWITCH, HEAVY DUTY, NON FUSIBLE, 30A, 3 WIRE, 3 POLE, 30HP, 600V AC/DC, NEMA 4, 4X, 5, 304 STAINLESS STEEL

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 3/3R4/4X/12 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of stainless steel 304 and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
