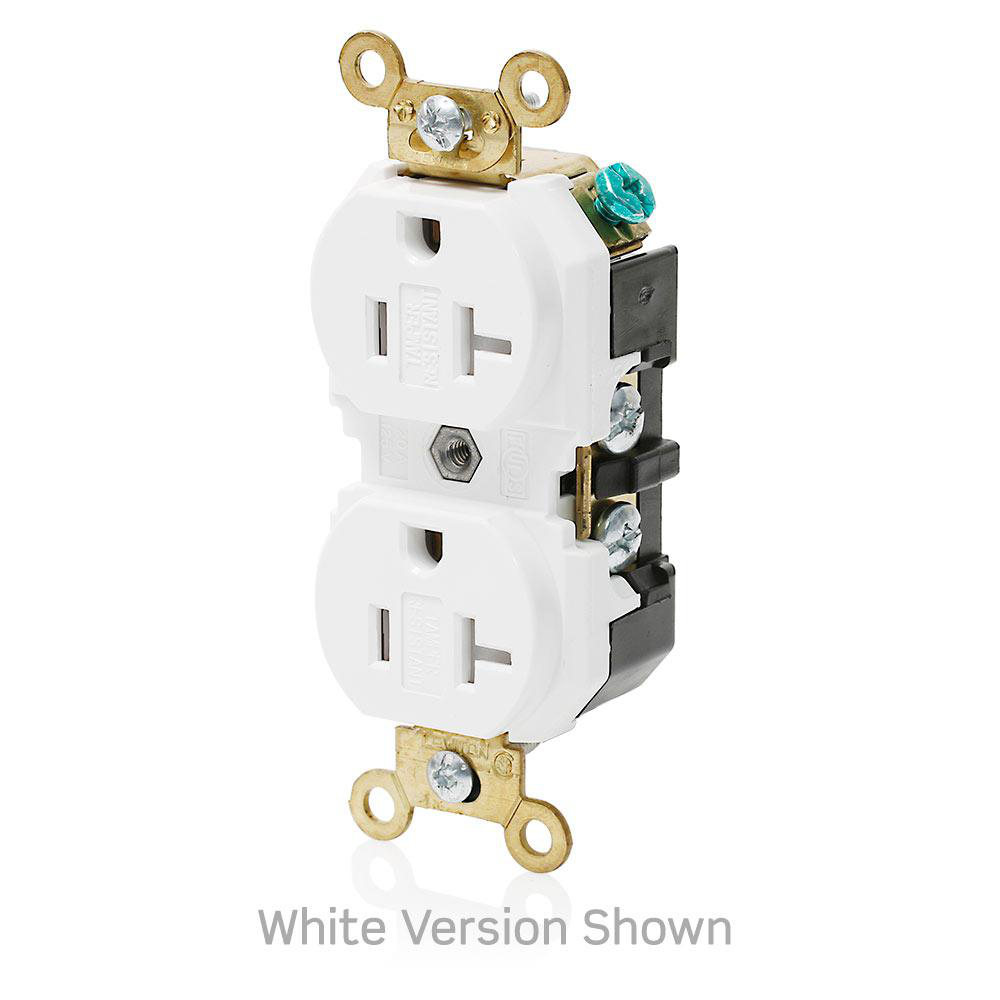

Image thumbnail 1

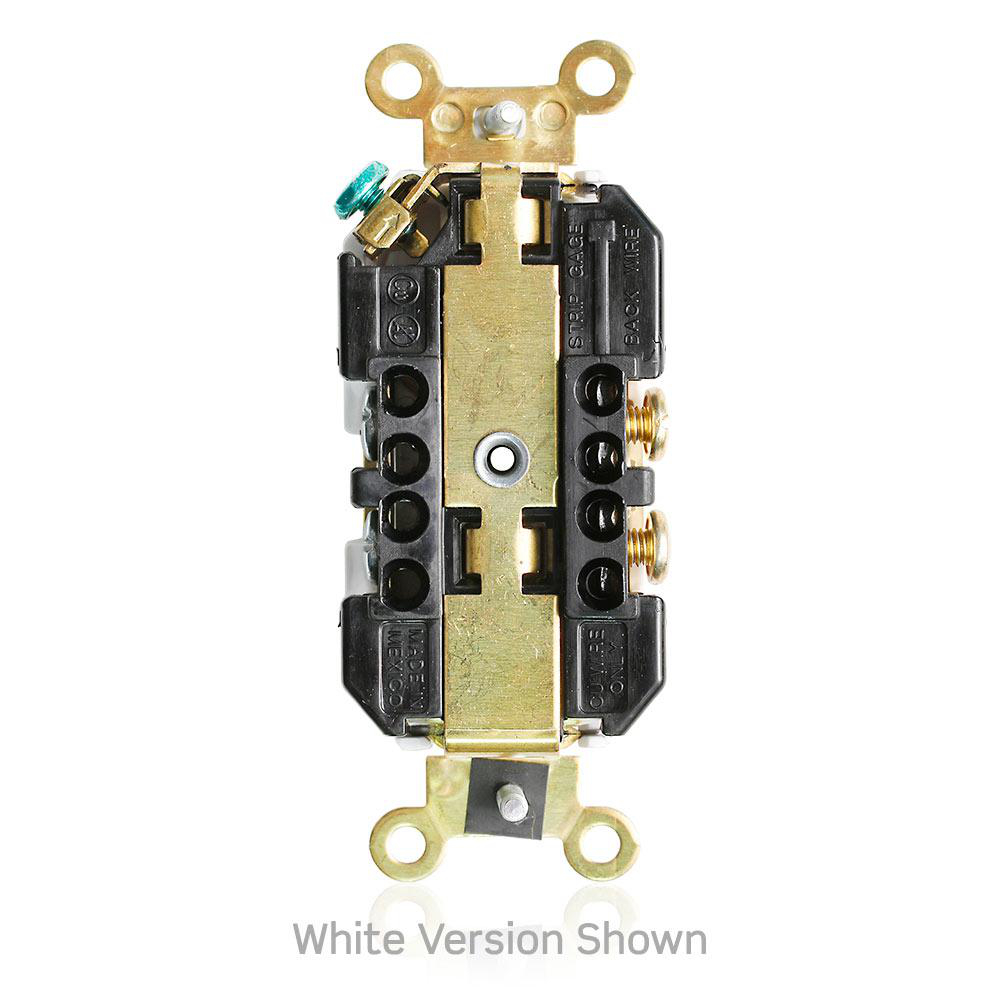

Image thumbnail 2
To:
CC:

20 Amp Duplex Receptacle/Outlet, Industrial Grade, Tamper-Resistant,

Manufacturer: Leviton Manufacturing | Catalog # 5362-SGW | Electrozad South Part # 306761
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 A
Applications
Hospital
Body Material
Nylon
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Extra Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
75 degrees C
Standard
ANSI C-73,CSA C22.2 No. 42,FedSpec W-C 596,UL 498
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Duplex Receptacle
Wire Count
3
Wire Type
Stranded or Solid

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477868720
Color
White
GTIN
00078477868720

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
Mexico
