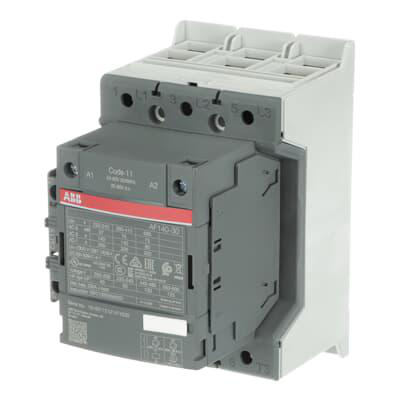

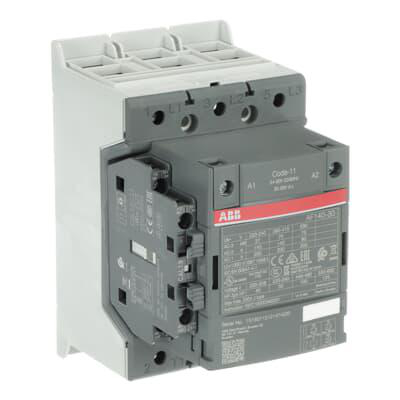

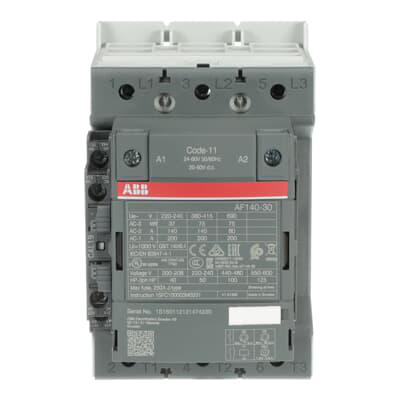

CTR,3P,130A,20-60VDC/24-60VAC,1/1

Manufacturer: ABB Inc | Catalog # AF140-30-11-11 | Electrozad South Part # 304783
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 24-60 V, 50 and 60 Hz, 20-60 V DC

Technical Information

Applications
Suitable for Various Applications Such as Motor Starting, Isolation, By-Pass and Distribution Application Up to Max 690 V
Coil Voltage
24 - 60 VAC, 20 - 60 VDC
Contact Configuration
1 NO, 1 NC Auxiliary
Number of Poles
3
Operating Temperature
50 degrees C
Power Rating
37 kW at 220-230-240 V, 75 kW at 380 - 400 V, 415 V, 90 kW at 440 V, 500 V, 75 kW at 690 V
Size
90x150x126mm
Temperature Rating
-25 to 50 degrees C
Terminal Type
Double Clamp
Type
Contactors

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614119932
GTIN
00888614119932
