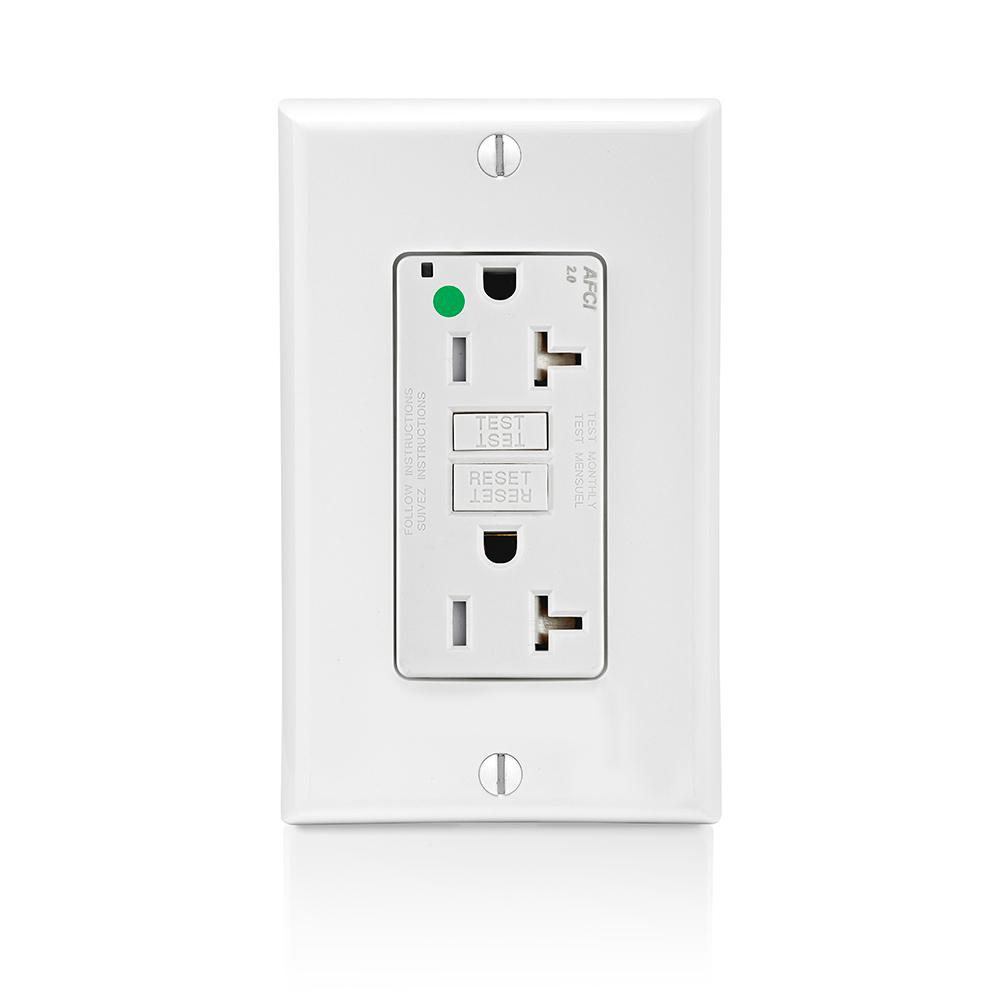

20 Amp SmartlockPro® AFCI Receptacle/Outlet, Hospital Grade, Tamper-Resistant

Manufacturer: Leviton Manufacturing | Catalog # AFTR2-HGW | Electrozad South Part # 304237
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
AFCI Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Wallplate Included, Tamper-Resistant, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 A
Applications
Hospital
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Heavy-Duty Hospital
Grounding
Self-Grounding
Horsepower
1 hp
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-35 degrees C
Standard
ANSI C-73,CSA C22.2 No. 42 And TIL No. M-02A,FedSpec W-C 596,UL 498 And 1699A
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Arc Fault Circuit Interrupter
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT C I GFCI

General Product Info

12-Digit UPC
078477692226
Color
White
GTIN
00078477692226

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
