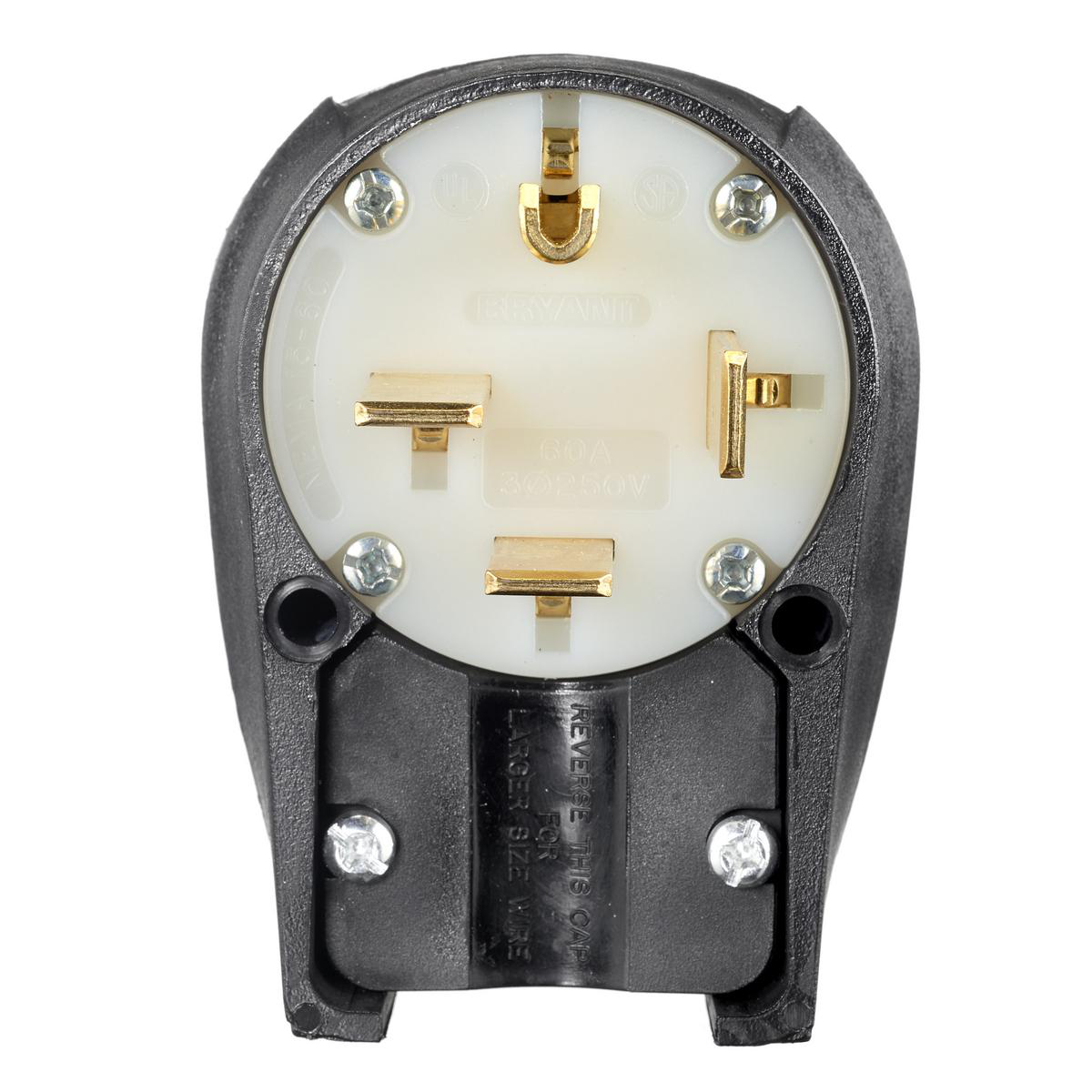

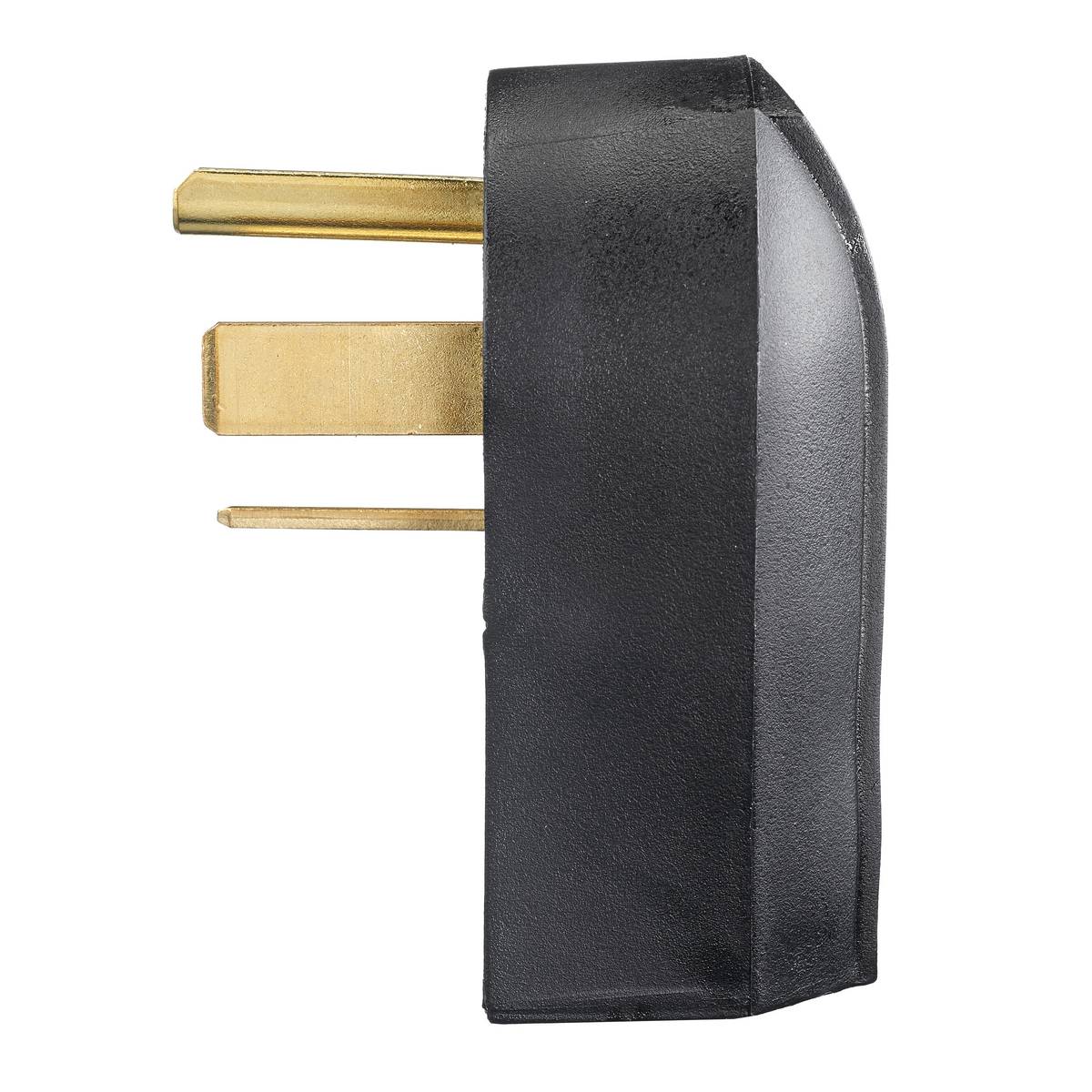

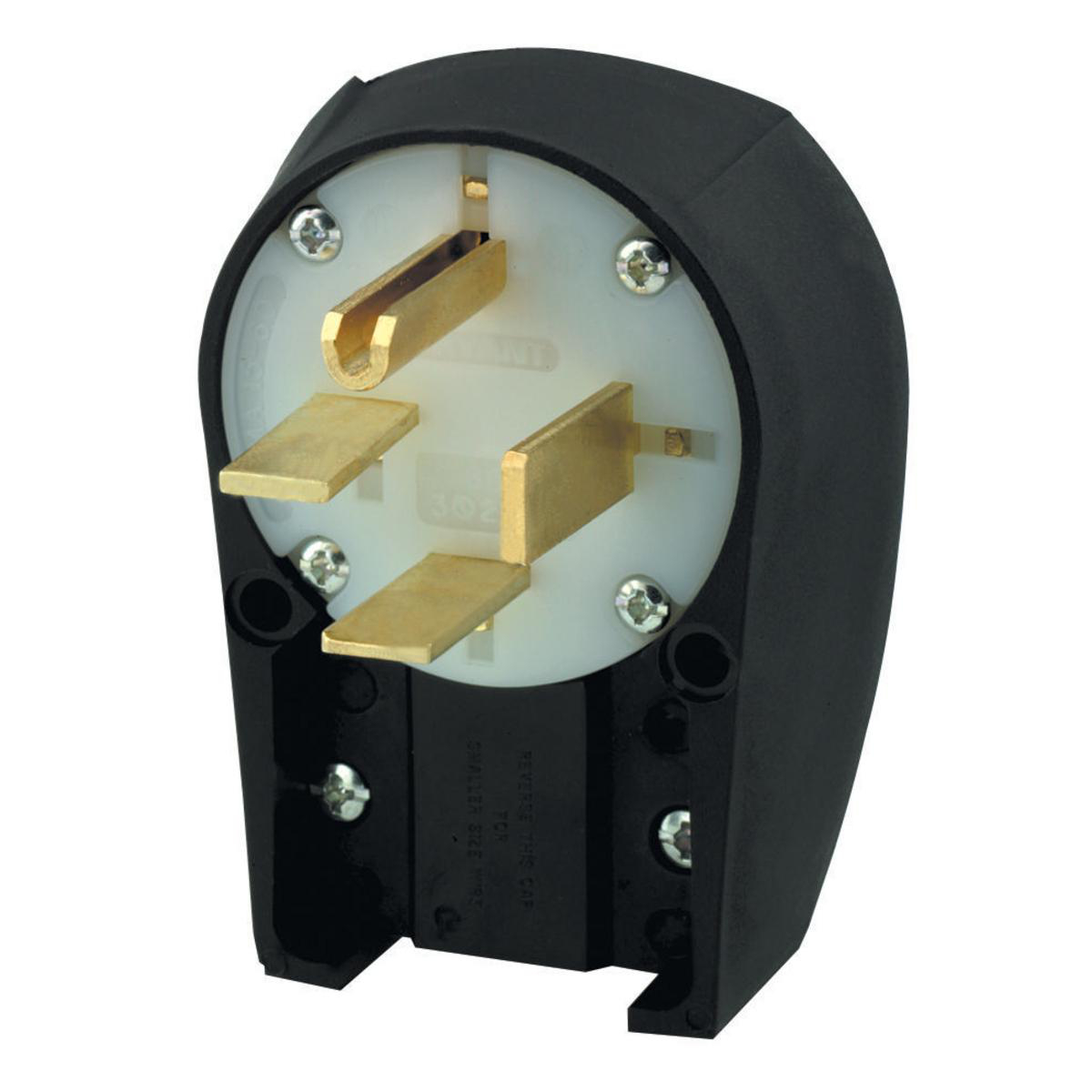

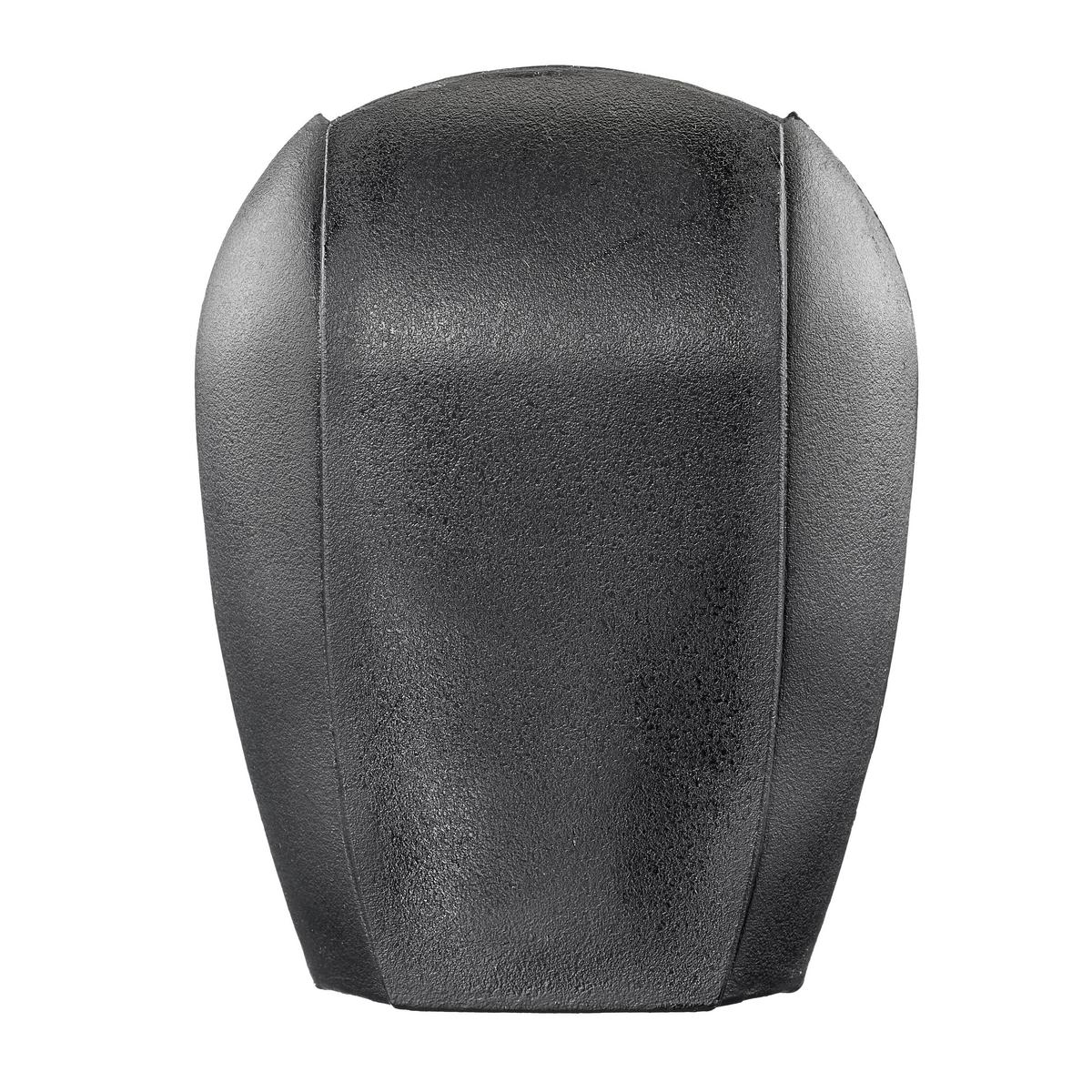

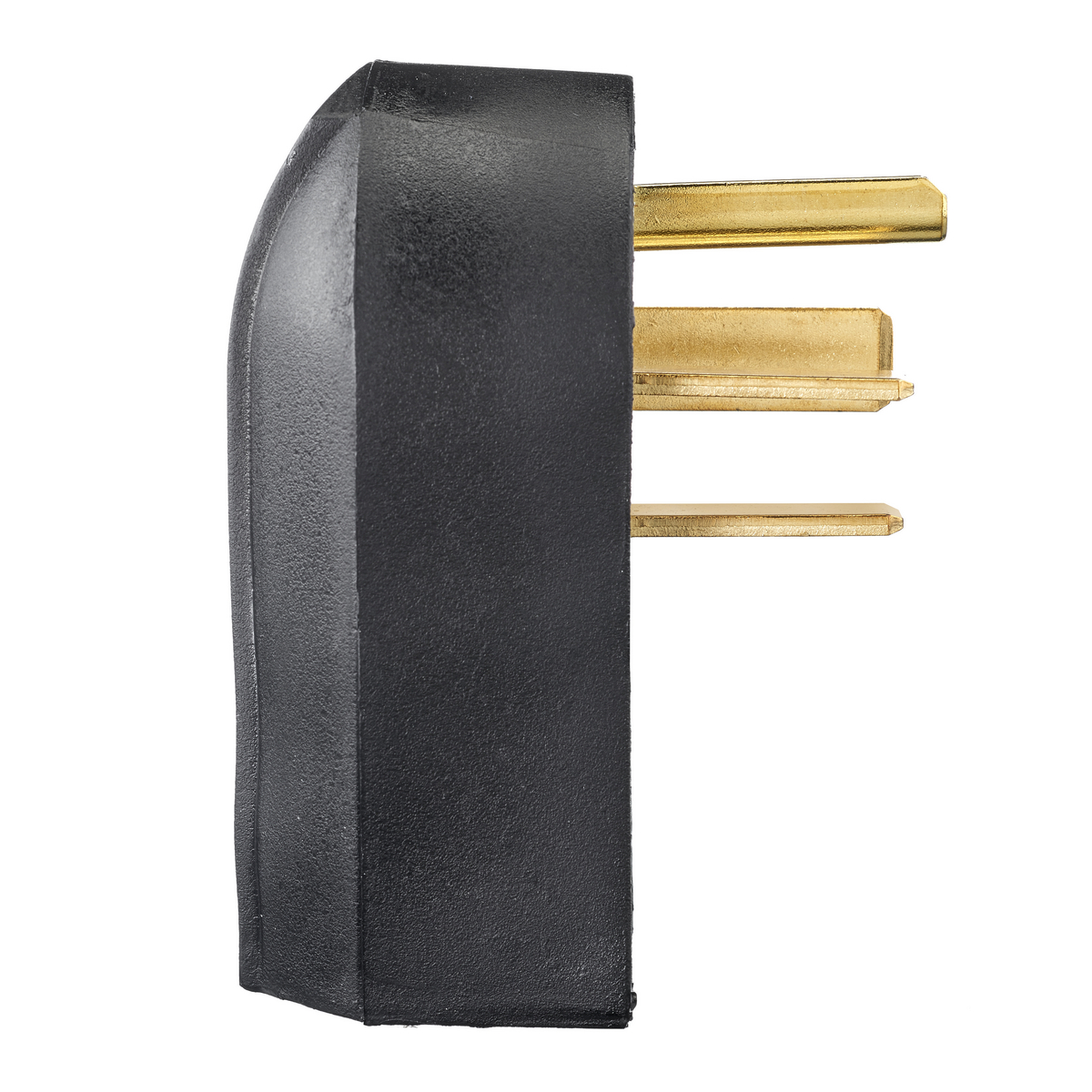

PLUG ANG, 60A 3PH 260V, 15-60P, BK

Manufacturer: Bryant Wiring Device | Catalog # 8462ANPB | Electrozad South Part # 303830
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 60A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, 15-60P, Black, Single Pack

Technical Information

Amperage
60 A
Applications
Heavy Duty
Cord Type
All Portable
Current
60 A
Material
Composite
NEMA
15-60P
Number of Phases
3
Number of Poles
3,3
Number of Wires
4,4
Size
Standard Sized
Style
Heavy Duty
TC Connection
Pressure Terminal Screws
Type
Standard
Voltage
250 V
Wattage
12480 W
Wire Size
6-4 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786674325
Color
Black
GTIN
00781786674325
Product Series
Industrial
Product UPC
78178667432
Weight
0.7 lb

Dimensions

Height
1.75 in
Length
4.19 in
Width
3.25 in

Certifications & Compliance

Country of Origin
USA
Overview
  • 3-Pole 4-Wire Grounding
  • Angled
  • Industrial/Commercial Grade
  • Heavy Duty
  • 60A 3-Phase 250V AC
