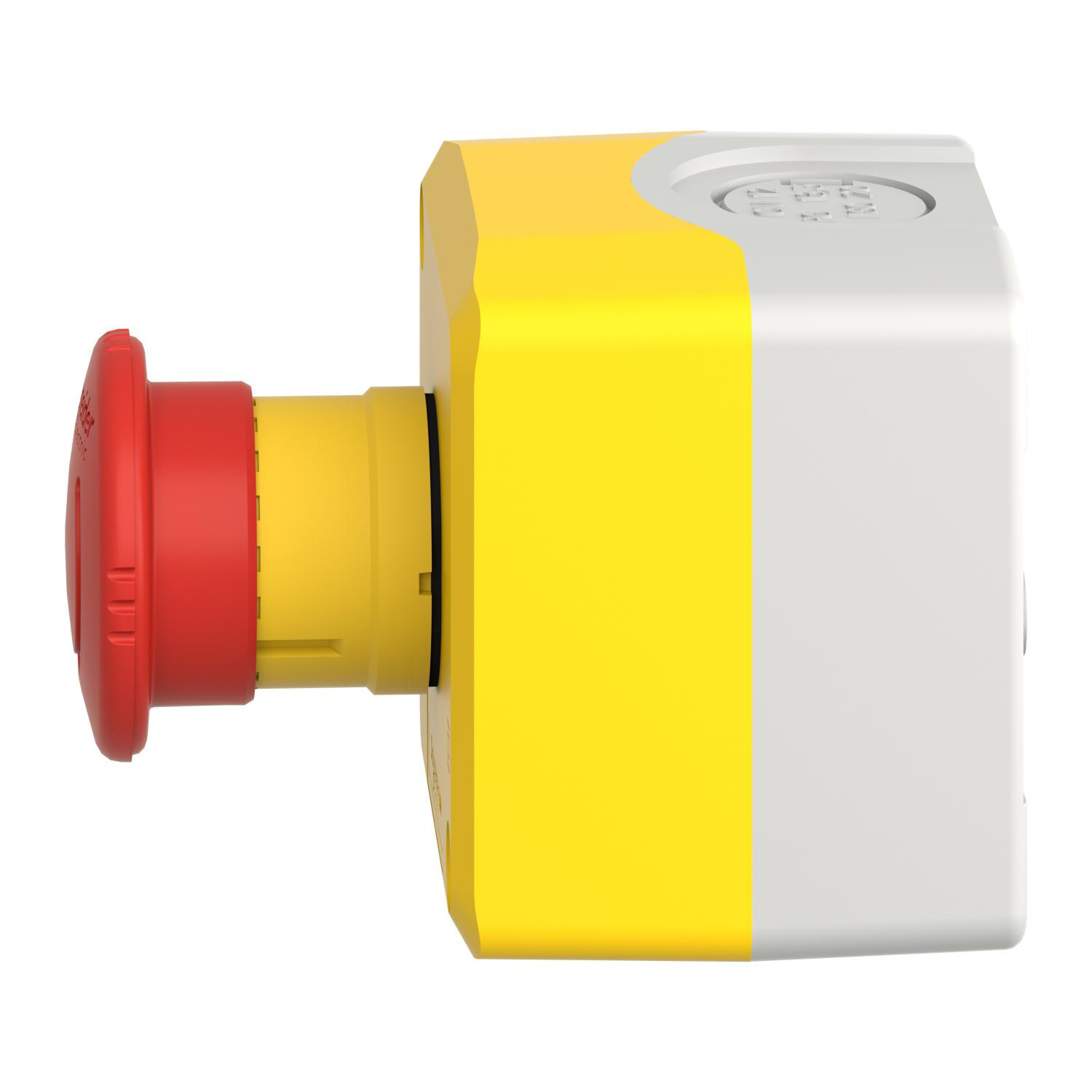

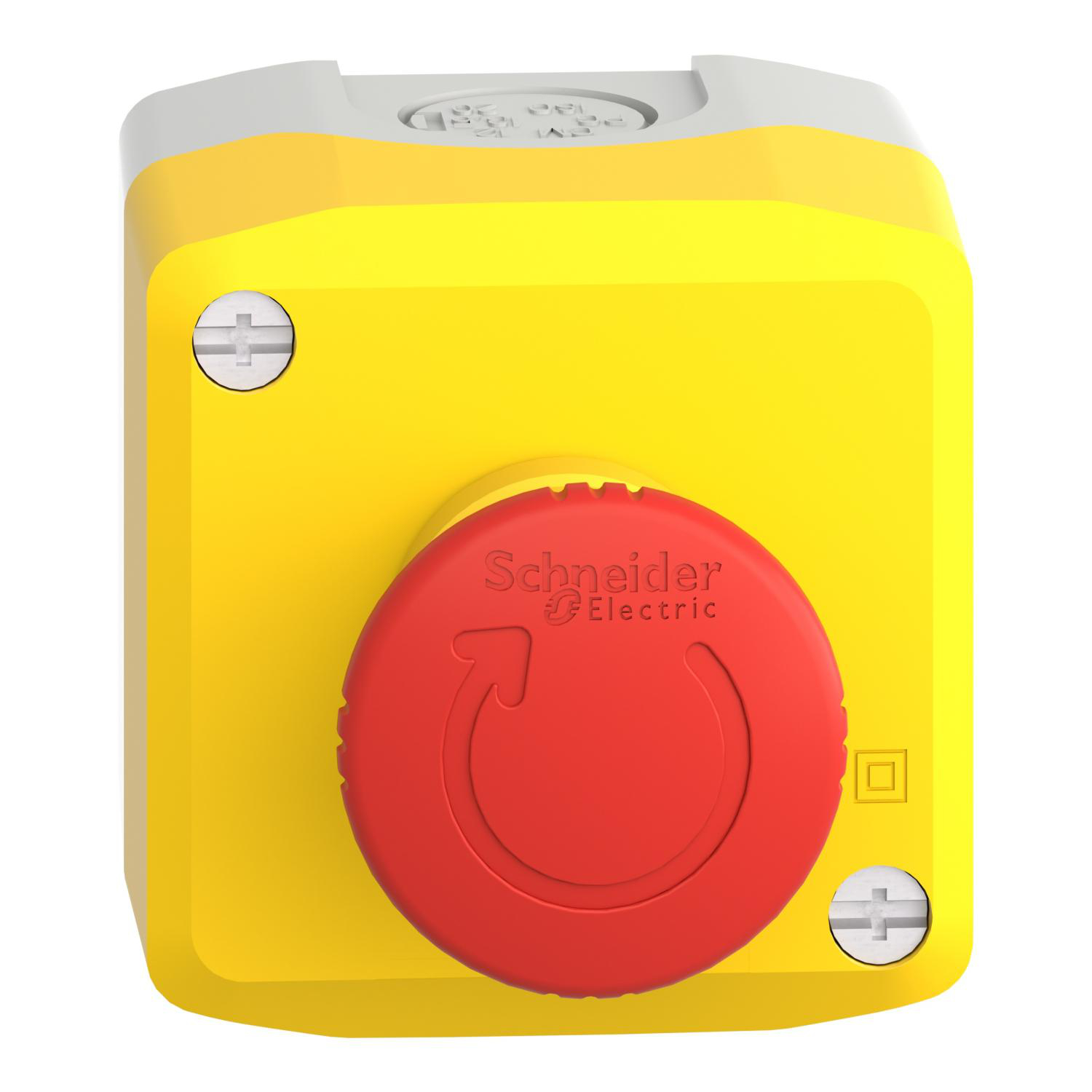

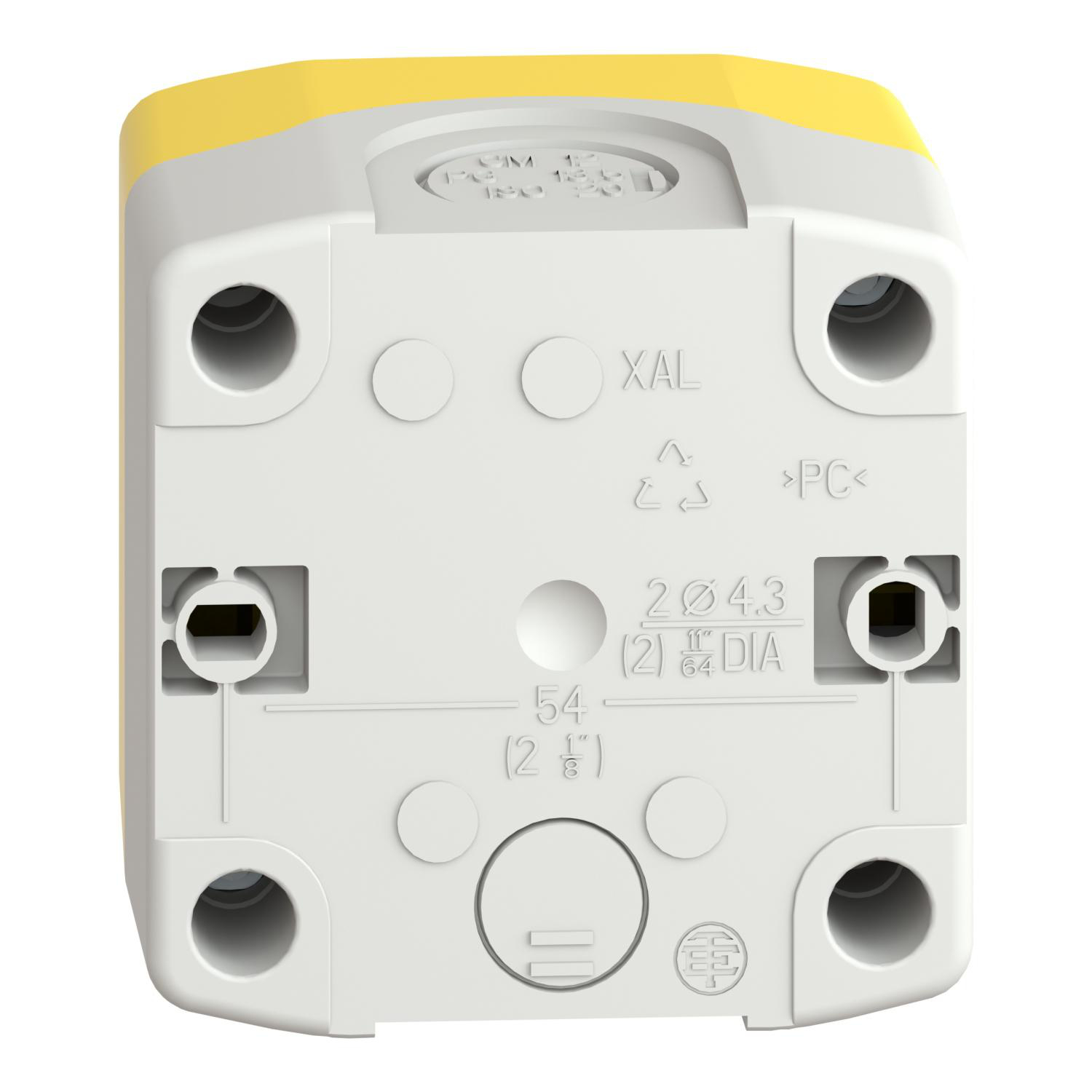

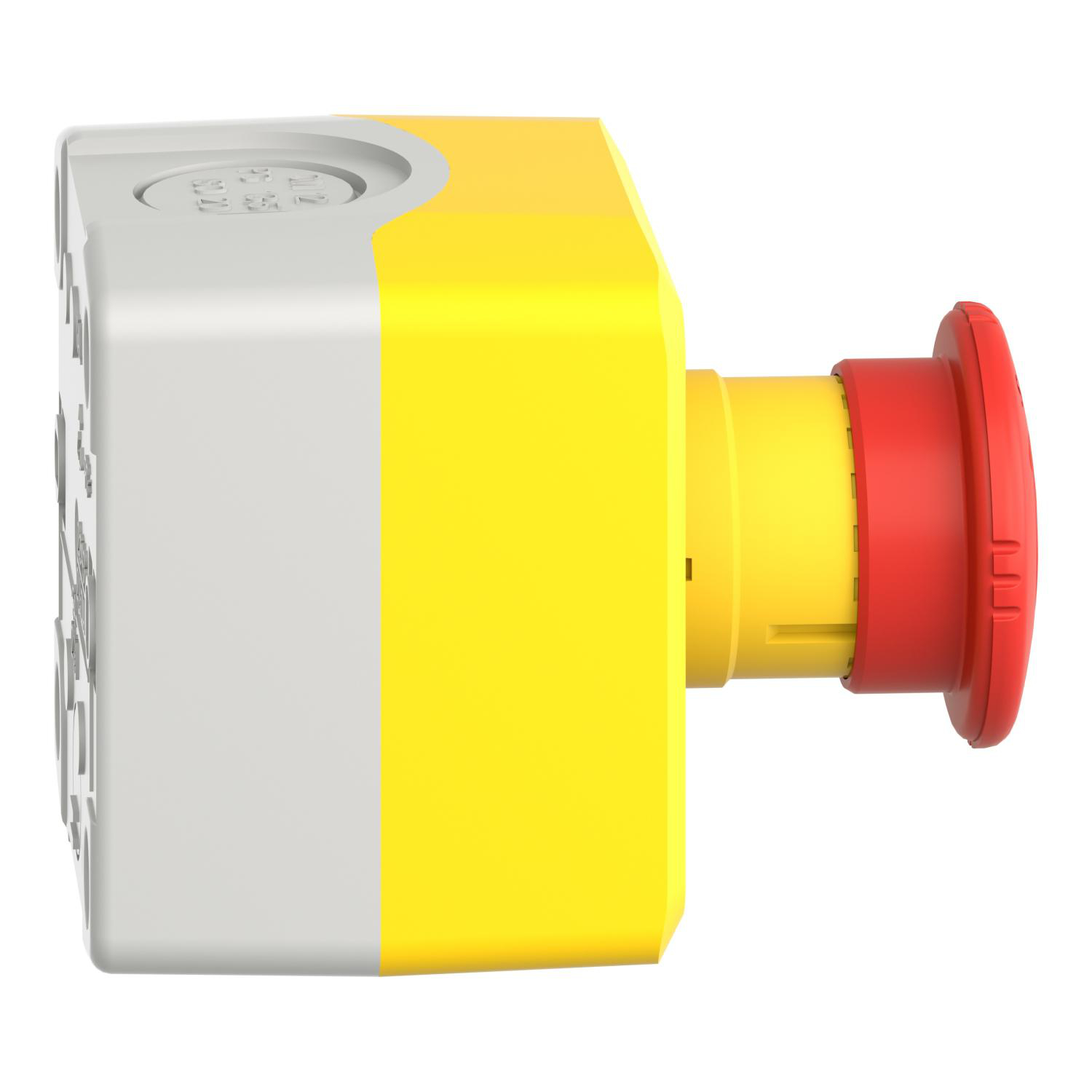

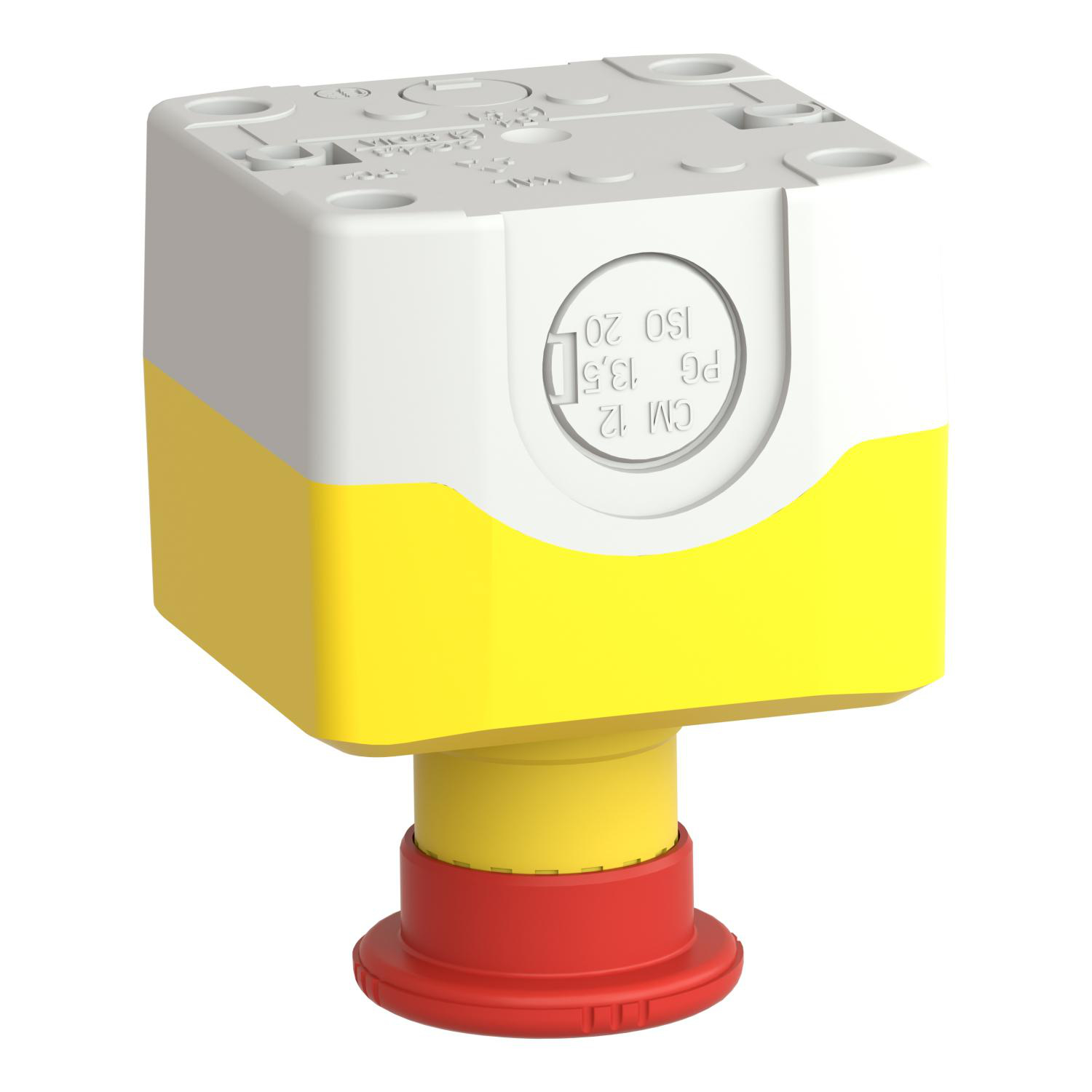

CONTROL STATION, HARMONY, PLASTIC, YELLOW, 1 RED MUSHROOM HEAD PUSH BUTTON 40MM, EMERGENCY STOP TURN TO RELEASE 1NO + 1NC, UNMARKED, UL CSA CERTIFIED

Manufacturer: Schneider Kreuznach B & W | Catalog # XALK178EH7 | Electrozad South Part # 301742

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40..C to 70..C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Technical Information

Action
Slow-break
Actuator
Red unmarked 1 NO + 1 NC;1 mushroom head push-button
Applications
For XB5 Ø 22 mm control and signalling units
Cable Entry
0-14 mm
Contact Material
Silver Alloy
Enclosure
NEMA 13-NEMA 4X
Material
Polycarbonate
Net Weight
0.194 kg
Operating Force
44 N
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60204-1,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,EN/ISO 13850,IEC 60364-5-53,JIS C 4520,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA² WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA² WITHOUT CABLE END EN/IEC 60947-1
Type
Complete control station

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XALK

General Product Info

12-Digit UPC
389119413933
GTIN
03389119413930
Weight
0.194 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
CSA,UL Listed
Country of Origin
Czechia
