Sensor occupancy 180.. 277V 800W wht 2400sqft

Manufacturer: Leviton Manufacturing | Catalog # ODS0D-IDW | Electrozad South Part # 301324
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

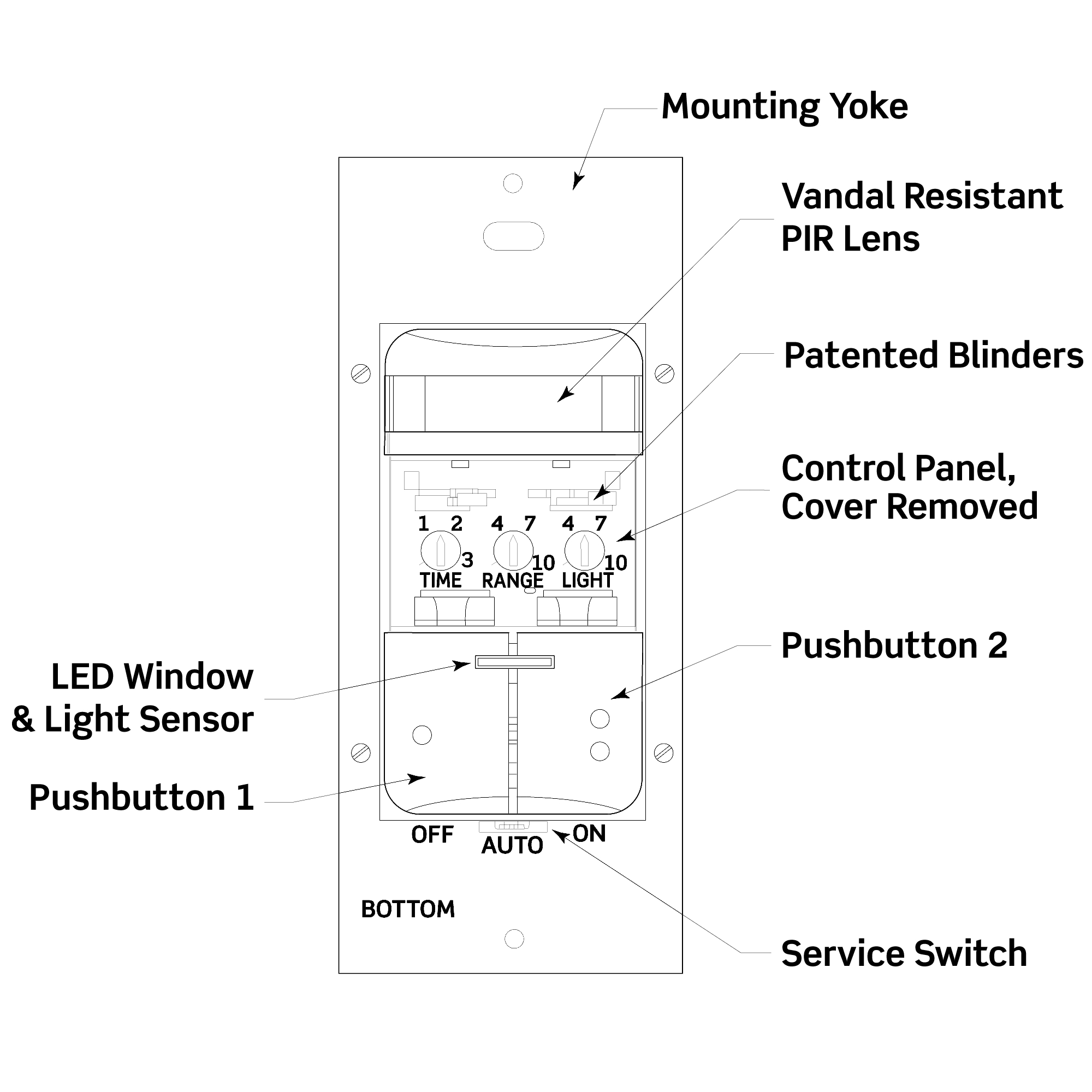

Dual-relay Decora® wall switch PIR occupancy sensor provides automatic switching for two separate banks of fluorescent, incandescent or low-voltage lighting from a single unit. Convenient dual pushbuttons provide manual ON/OFF light switching of each load at any time. 180 degree field-of-view provides approximately 2100 square feet of coverage, suitable for a variety of commercial areas.

Technical Information

Applications
Commercial
Coverage
2100 sq-ft
Device Type
Occupancy Sensor
Frequency
50 Hz
Grade
Commercial
LED Color
Red
Lens Type
Red LED
Mounting Type
Wall, Flush
Number of Poles
1
Operating Temperature
0 degrees
Power Consumption
110 m 277m W
Response Time
30 min
Sensor Type
Wall Switch
Size
66.2 mm
Standard
CSA C22.2 No. 85,UL E23018,cULus
Storage Temperature
-10 To 85 degrees C
Switch Type
Dual Relay,Dual Relay,Single-Pole,Single-Pole
Temperature Rating
0 - 50 degrees C Operating, -10 to 85 degrees C Storage
Type
Dual Relay
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477954089
Color
White
Environmental Conditions
0 to 50 50 Deg C Operating
GTIN
00078477954089

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Certifications
UL/cUL
Country of Origin
Please Contact Customer Service
