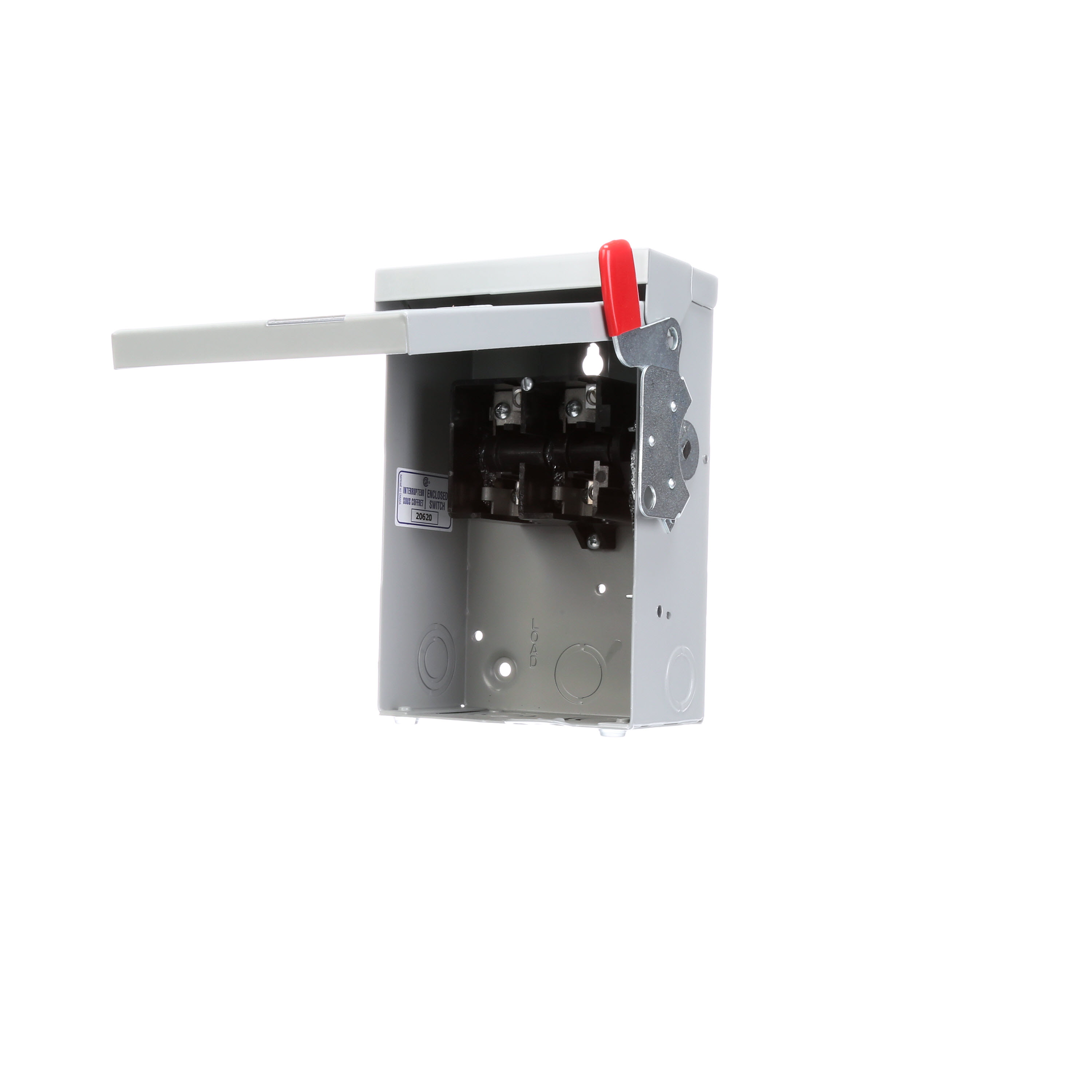

Light Duty, 3R, 120/240V, 60 A, 2-Pole,

Manufacturer: Siemens Distribution | Catalog # LNFC222R | Electrozad South Part # 299703
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Siemens Low Voltage Circuit Protection General Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL V. Rating 240V A. Rating 60A No. Of Poles 2P F. Rating60Hz Action SINGLE THROW Material 304SS Enclosure TYPE 3R. 2-3 point mounting holes. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions OUTDOOR

Technical Information

Action
SINGLETHROW
Amperage
60 A
Contact Configuration
Single Throw
Enclosure
TYPE 3R
Frequency
60 Hz
Insulated?
No
Material
304SS
Mounting Type
2 or 3 Point Mounting Holes
Net Weight
3,527 lb
Number of Poles
2
Operating Cycles
10000
Operating Temperature
-20 To 120 degrees F
Temperature Rating
-20 to 120 degrees F Ambient
Type
Enclosed, Non-Fused, Light Duty
Voltage
240 V

Manufacturer Information

Brand
Siemens
Sub Brand
Disconnect Switches

General Product Info

12-Digit UPC
783643202641
GTIN
00783643202641
Housing Material
304 Stainless Steel
Weight
3.375 lb

Dimensions

Height
8.200 in
Length
6.600 in
Width
20.550 in

Certifications & Compliance

Country of Origin
Mexico
