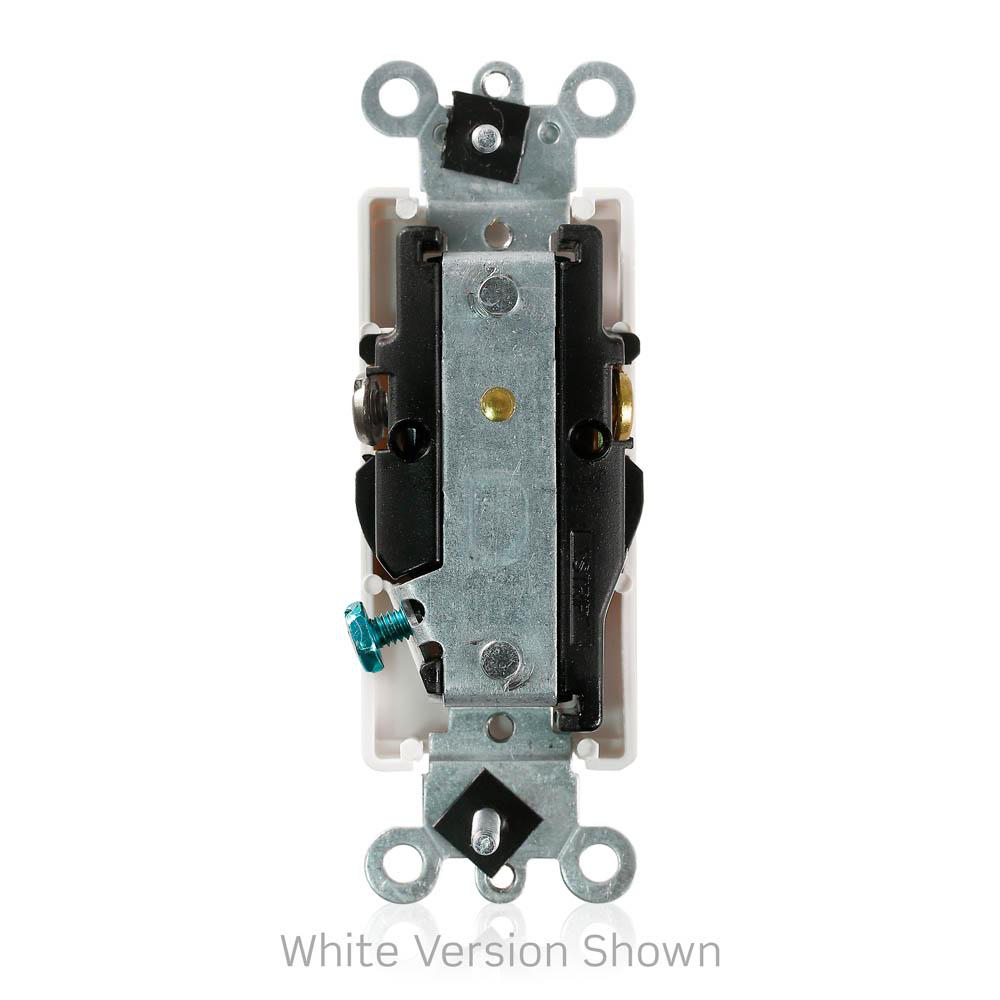

Image thumbnail 1
To:
CC:

Receptacle straight single 2P 3W 125V 20AMP white

Manufacturer: Leviton Manufacturing | Catalog # 16341-W | Electrozad South Part # 298696
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet Technical Drawing
Leviton's line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wire
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Side Wire
Type
Outlet
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477473665
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Enamel Painted, Gloss
GTIN
00078477473665

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Please Contact Customer Service
