RingTerm,VylExp,2AWG,5/16"Stud,PK10

Manufacturer: Panduit | Catalog # PV2-56RX-XY | Electrozad South Part # 298548
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing

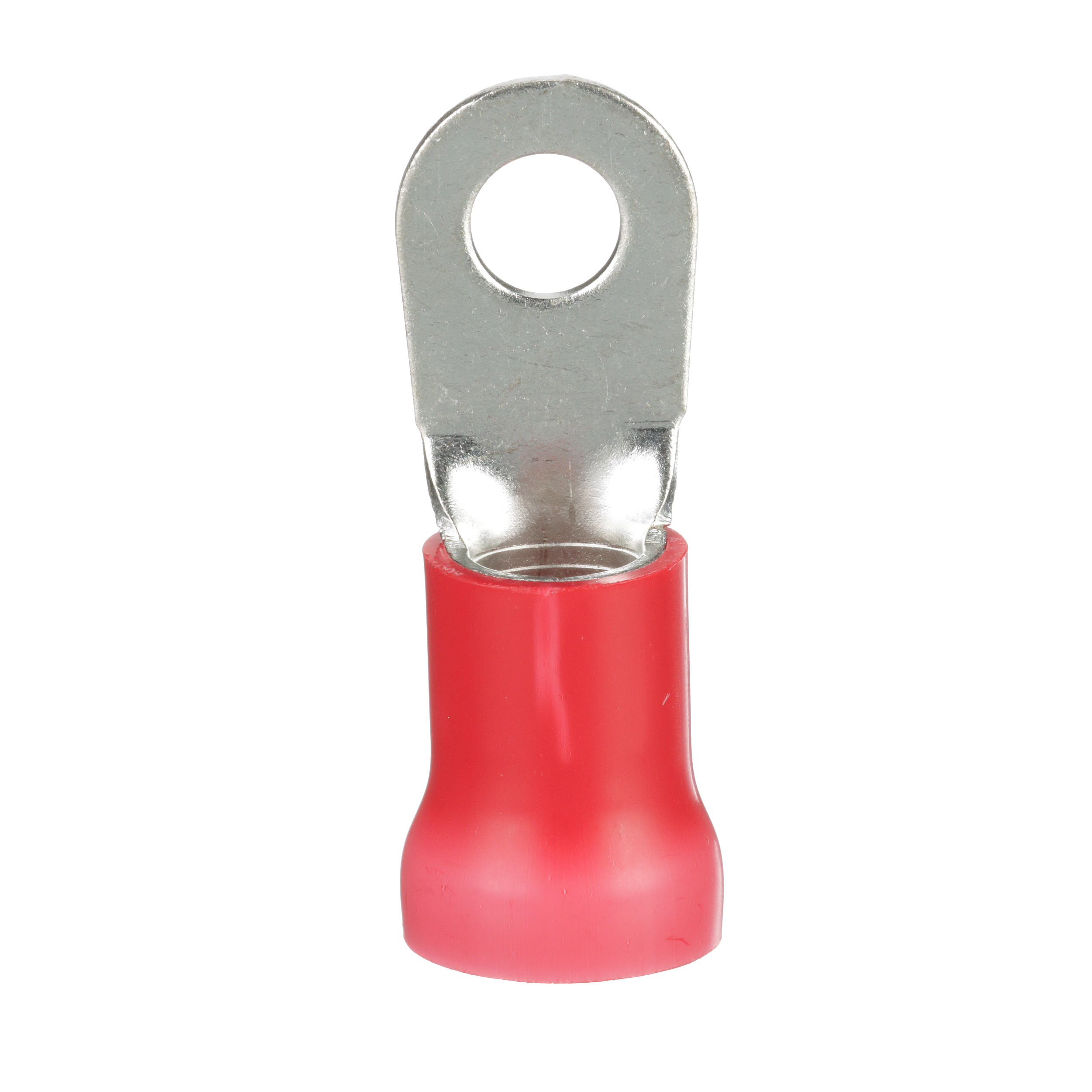

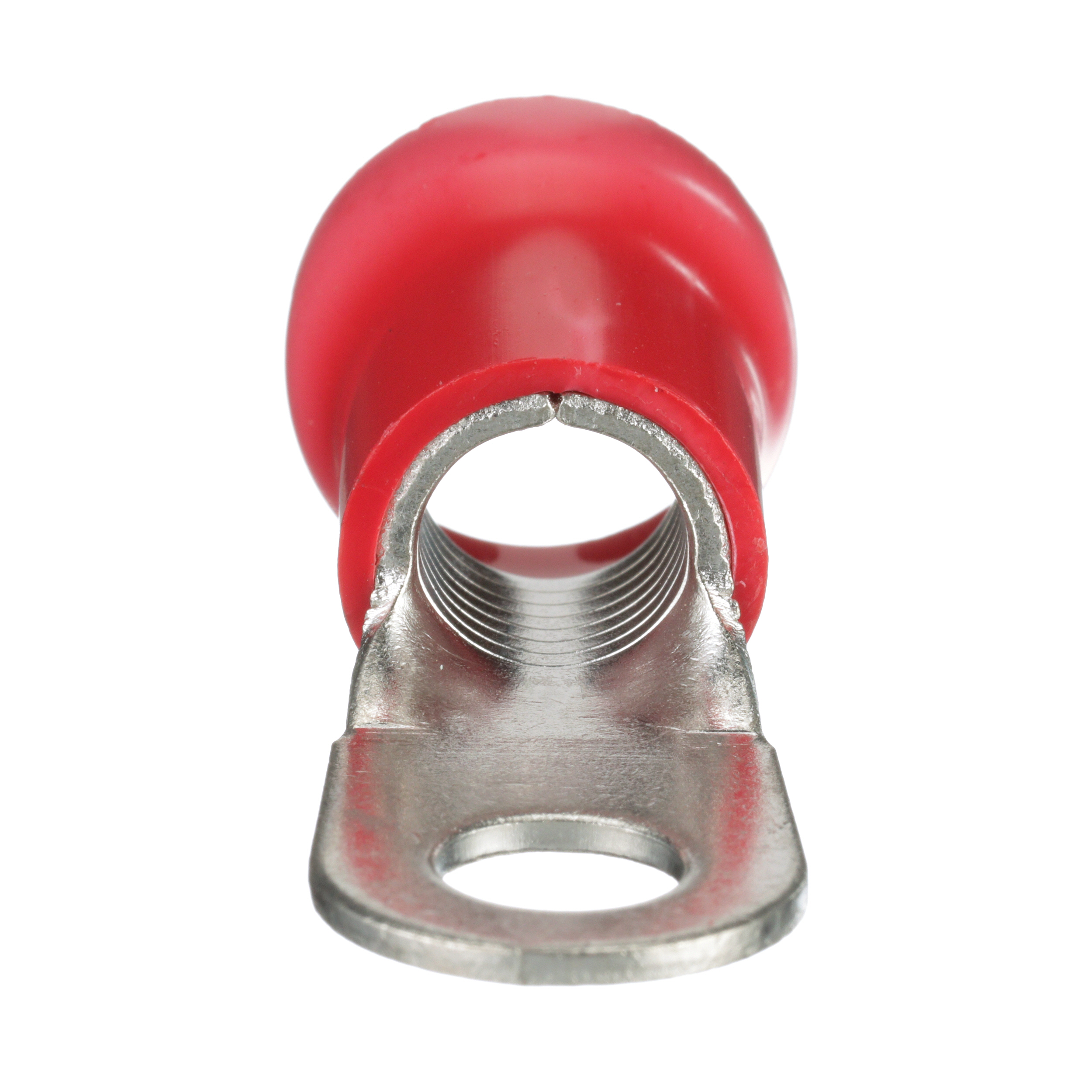

Ring Terminal, large wire, 2 AWG, 5/16" stud size, vinyl expanded insulation, standard package.

Technical Information

Barrel Length
0.8 in
Barrel Type
Brazed Seam,Insulation Support
Base Material
Copper
Color Coding
Red
Enclosure
Ring shape
Insulation Type
Vinyl
Material
Copper
Max Operating Temperature
105 degrees C
Max Voltage
600 V
Size
M8
Stud Hole Size
M8
TC Connection
Expanded Entry
Temperature Rating
221 F
Tongue Thickness
0.06 in
Tongue Width
0.68 in
Type
Ring Terminal
Wire Size
2 AWG

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-term

General Product Info

12-Digit UPC
074983695027
Color
Red
Finish
Tin-Plated
GTIN
00074983695027
Product Type
Terminals

Dimensions

Length
1.94 in
Outer Diameter
0.63 in
Overall Length
1.93 in
Width
.68 in

Certifications & Compliance

ARRA Compliant
Yes
BAA | Buy American Compliant
Y
CE Compliant
No
Country of Origin
Mexico
Hazmat Flag
No
