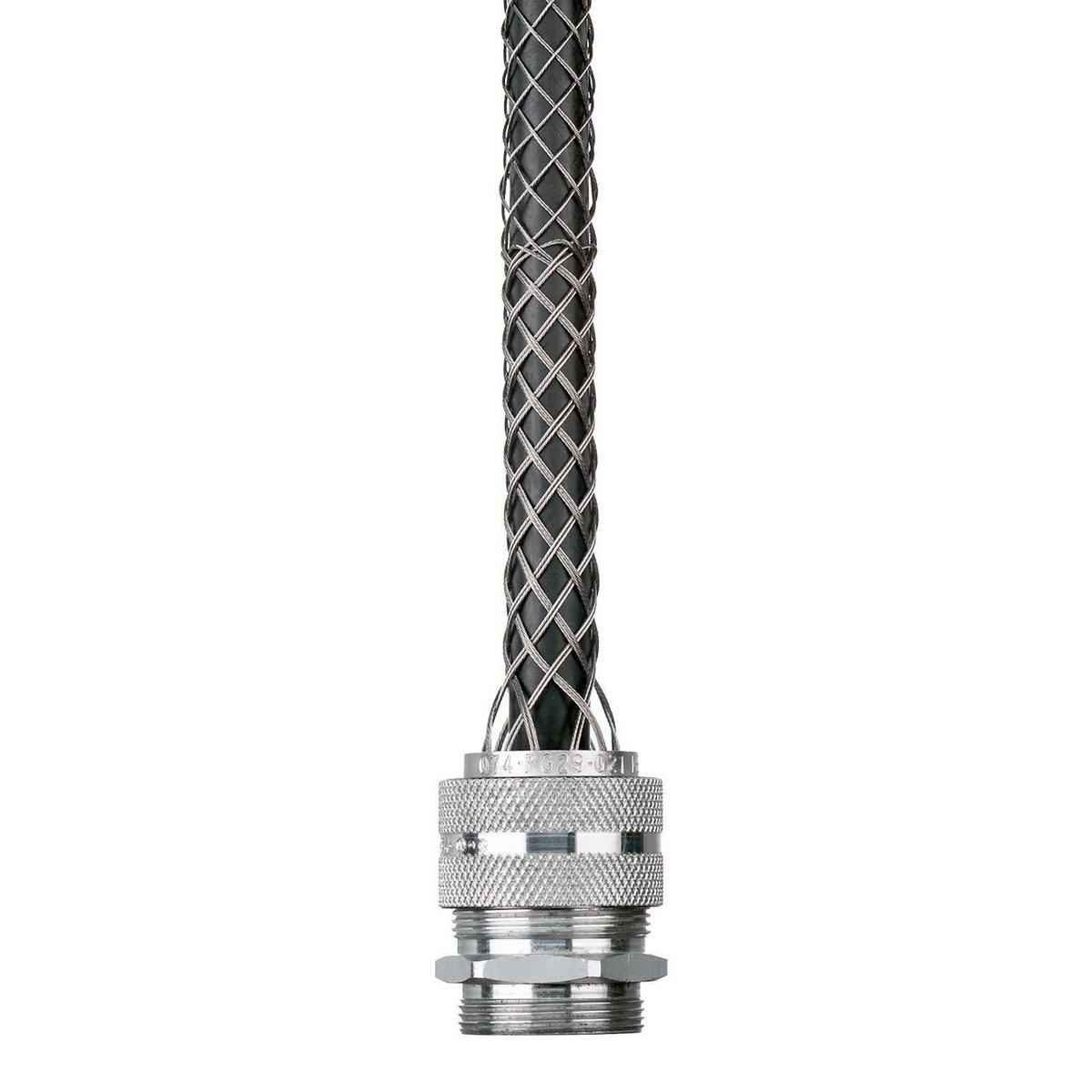

Grip cord straight male PG21 aluminium 0.5-0.625"

Manufacturer: Kellem | Catalog # 074PG21010 | Electrozad South Part # 298177
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
KELLEMS® Deluxe cord grip. Completely eliminate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out. Aluminium fittings. Stainless steel mesh. Liquidtight for insulated cables. Straight male thread PG21 hub size.

Technical Information

Applications
For Use in Wet Locations When Used with a Listed Nylon Washer Between Box and Fitting
Cable Size
0.5 - 0.625 in
Cable Type
Jacketed UL Listed Cable Only
Material
Aluminum Fitting, Stainless Mesh
Number of Conductors
1
Size
PG21
Style
For Insulated Cables
TC Connection
PG21
Temperature Rating
-30 To 240 degrees F
Type
Standard, Deluxe

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Kellems Wire Management

General Product Info

12-Digit UPC
783585327754
Color
Metallic
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
GTIN
00783585327754
Product Series
PG And Metric Threaded
Product UPC
78358532775
Used With
Straight Male Form 2 Connector
Weight
0.1 lb

Dimensions

Height
1.8 in
Length
8.800 in
Width
1.370 in

Certifications & Compliance

Certifications
UL Listed CSA Certified
Country of Origin
USA
Overview
  • Neoprene bushing is oil and watertight
  • Stainless steel mesh is corrosion resistant
  • Aluminum Fiting
