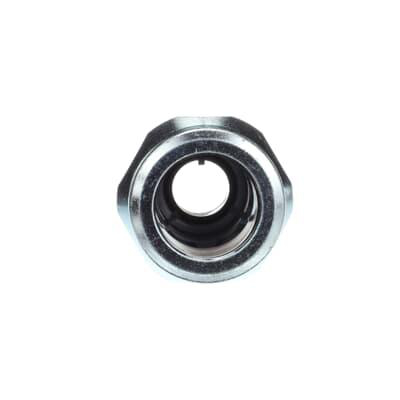

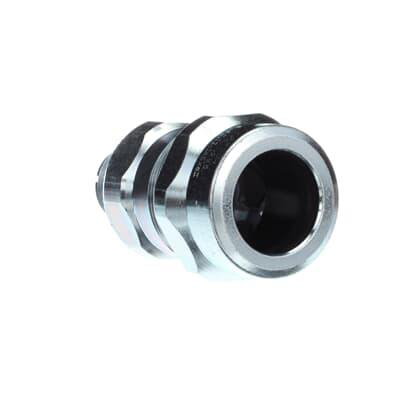

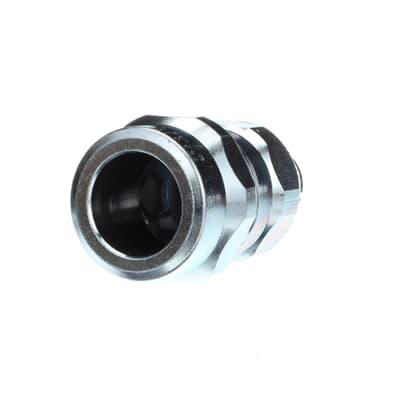

Product image for Connector cable str steel 1in 0.95 to 1.375in
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Connector cable str steel 1in 0.95 to 1.375in

Manufacturer: ABB | Thomas & Betts | Catalog # STE100S | Electrozad South Part # 298027
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing
STAR TECK EXTREME® fittings are designed to accommodate a broad range of cables and each hub size overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field. Built-in sealing device provides 360O seal even when enclosure surface is rough or uneven. Sharp biting teeth provide superior electrical bonding and allow corrosive liquids to drain away quickly. Exclusive power-grip provides a grip that...s high up on the cable... not on the first convolution...so jacket strip length of cable is not critical. Built-in jacket stripping gauge on each fitting. Low profile gland nut fits tight spaces. Has grooves for screwdriver installation, and flats for a wrench. Durable and reusable with funnel entry for easy cable insertion.

Technical Information

Material
Steel
Size
1 in
Standard
CSA,E2186,UL
Thread Type
NPT
Trade Size
1 in
Type
Straight

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210879659
Box Quantity
10
Color
Silver
Finish
Silver
GTIN
05415022460384
Overview
  • The STAR TECK EXTREME fitting was the industry's first range-taking teck fitting. This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried.
  • Now one STAR TECK EXTREME fitting could cover the range of three conventional STAR TECK fitting hub sizes. With the STAR TECK EXTREME fitting also came the invention of removable armour stops another feature that has since become an industry standard.
