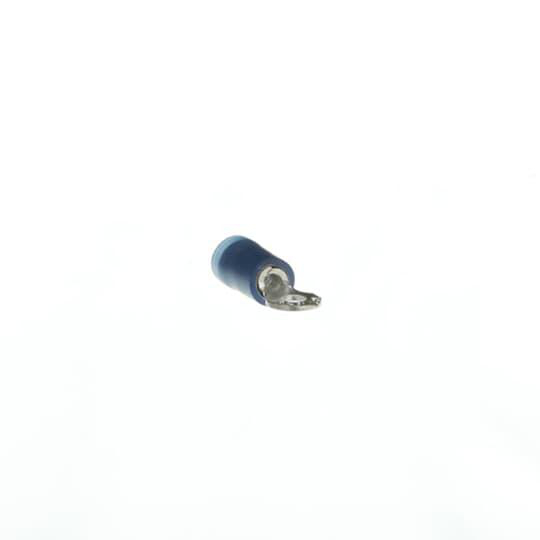

Terminal ring cu nylon blue 18-14AWG #4 Sta-Kon

Manufacturer: ABB | Thomas & Betts | Catalog # RB14-4 | Electrozad South Part # 298024
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Sta-Kon® insulated nylon ring terminal which is constructed of electrolytic copper for high conductivity. Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#4
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 V
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803999
Color
Blue
Finish
Electro Tin-Plated
GTIN
05414363131939

Dimensions

Height
3 in
Thickness
.03 in
Width
1.1 in
