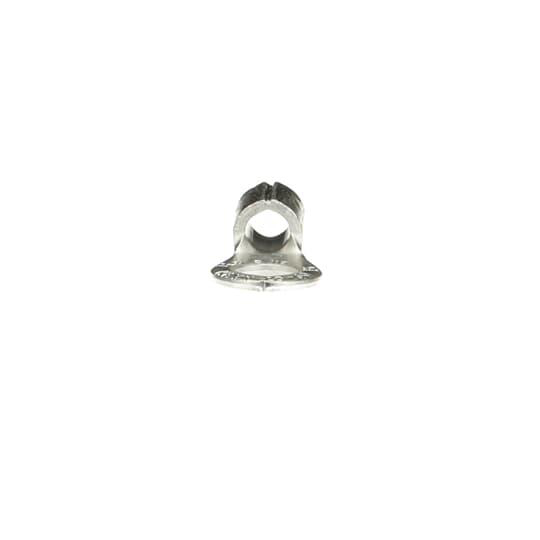

Image thumbnail 2
To:
CC:

Terminal ring large cu mtlc 6AWG 5/16in Sta-Kon

Manufacturer: ABB | Thomas & Betts | Catalog # E6-516 | Electrozad South Part # 298004
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Sta-Kon® non-insulated large ring terminal with brazed seam is constructed of electrolytic copper for high conductivity. It can be installed with crimping tools having a single indentor or double indentor. Wire range identification on the tongue of each terminal.

Technical Information

Barrel Type
Brazed Seam
Conductor Size
6 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Standard
UL E9809
Stud Size
5/16 in
Temperature Rating
150 degrees C
Terminal Type
E
Type
Short Sleeve
Voltage
600 V
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803609
Color
Metallic
Finish
Electro Tin-Plated
GTIN
05414363150534

Dimensions

Height
2.9 in
Thickness
.06 in
Width
1.1 in
