Connector mechanical 3conductor 2hole 2AWG-600kcmil | Electrozad South

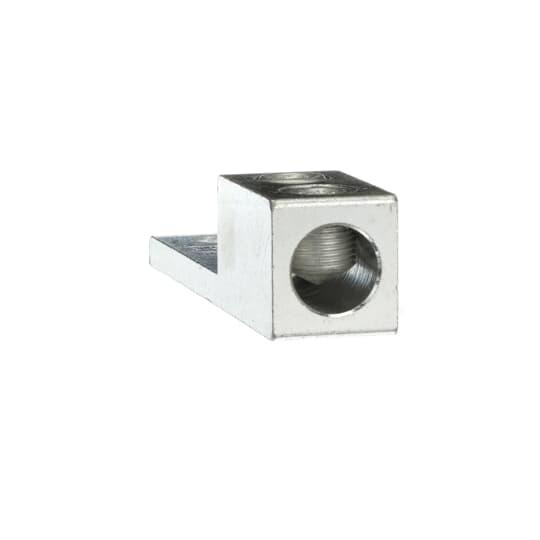

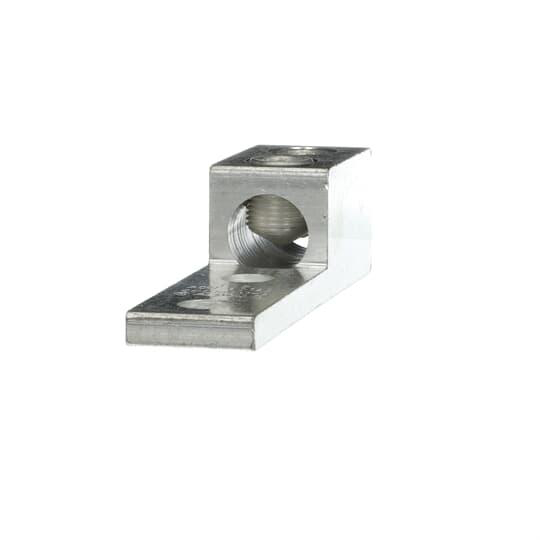

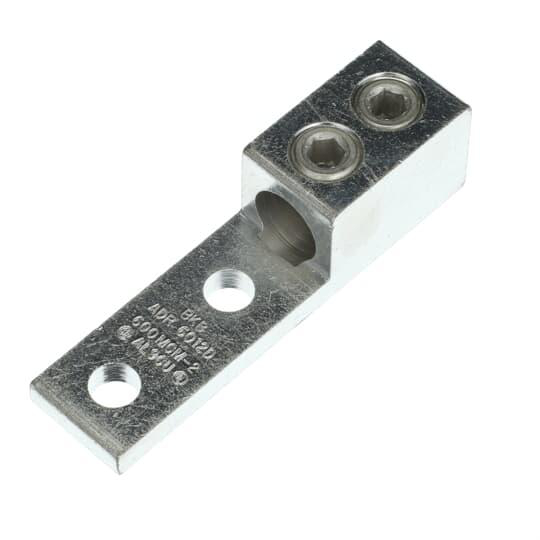

Product image for Connector mechanical 3conductor 2hole 2AWG-600kcmil
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Connector mechanical 3conductor 2hole 2AWG-600kcmil

Manufacturer: Blackburn Service Connectors | Catalog # ADR60-12D | Electrozad South Part # 298002
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing
ADR...ALC..L™ Dual-rated mechanical connector for copper and aluminum conductors. Easy installation -no special tools required. Tin-plated for low contact resistance. CSA Certified and UL Listed, AL9CU, 600 V Rated.

Technical Information

Conductor Size
2 AWG-600 kcmil
Material
Aluminum
Number of Conductors
1
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610327
Finish
Tin Plated
GTIN
05415022245097

Dimensions

Length
5-5/16 in
