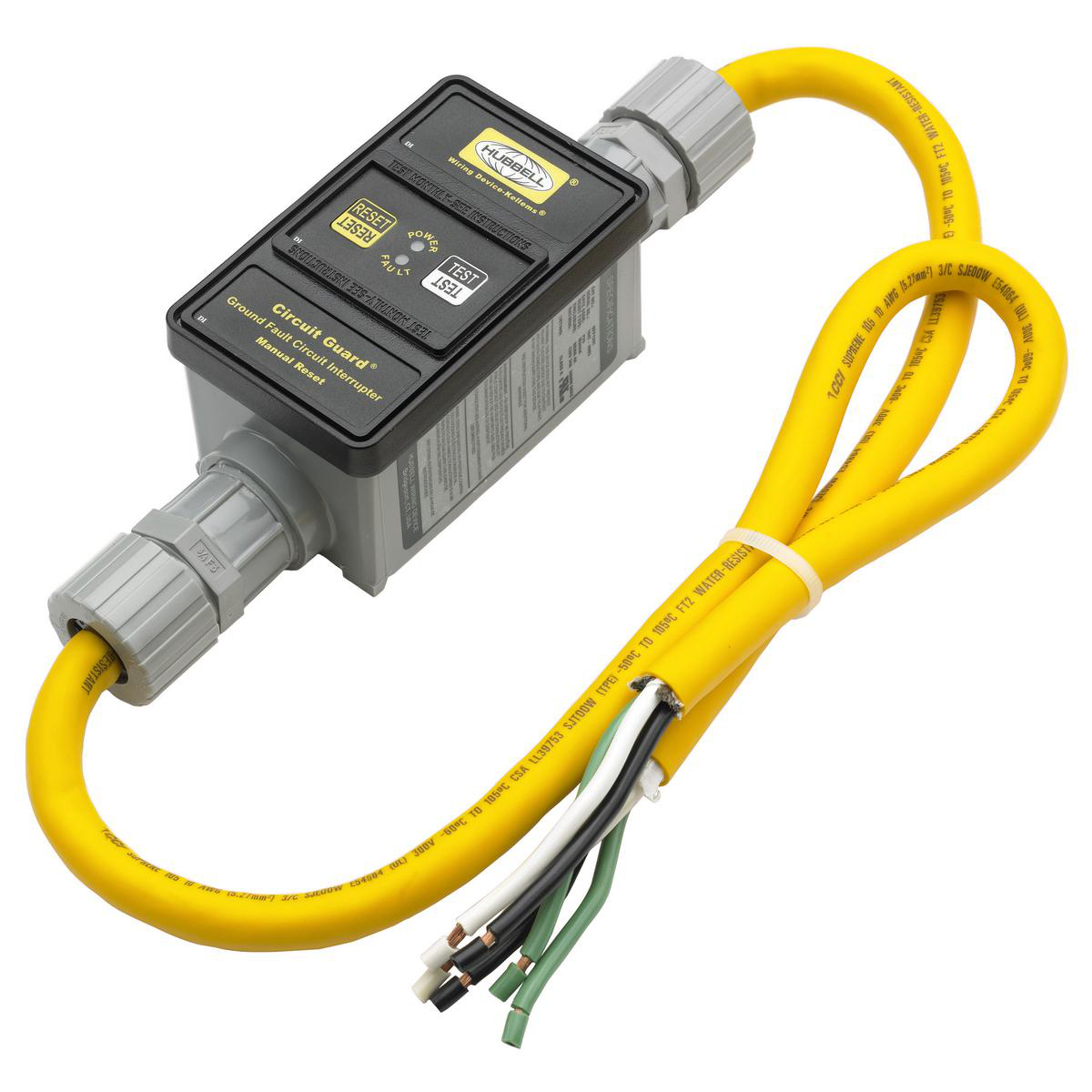

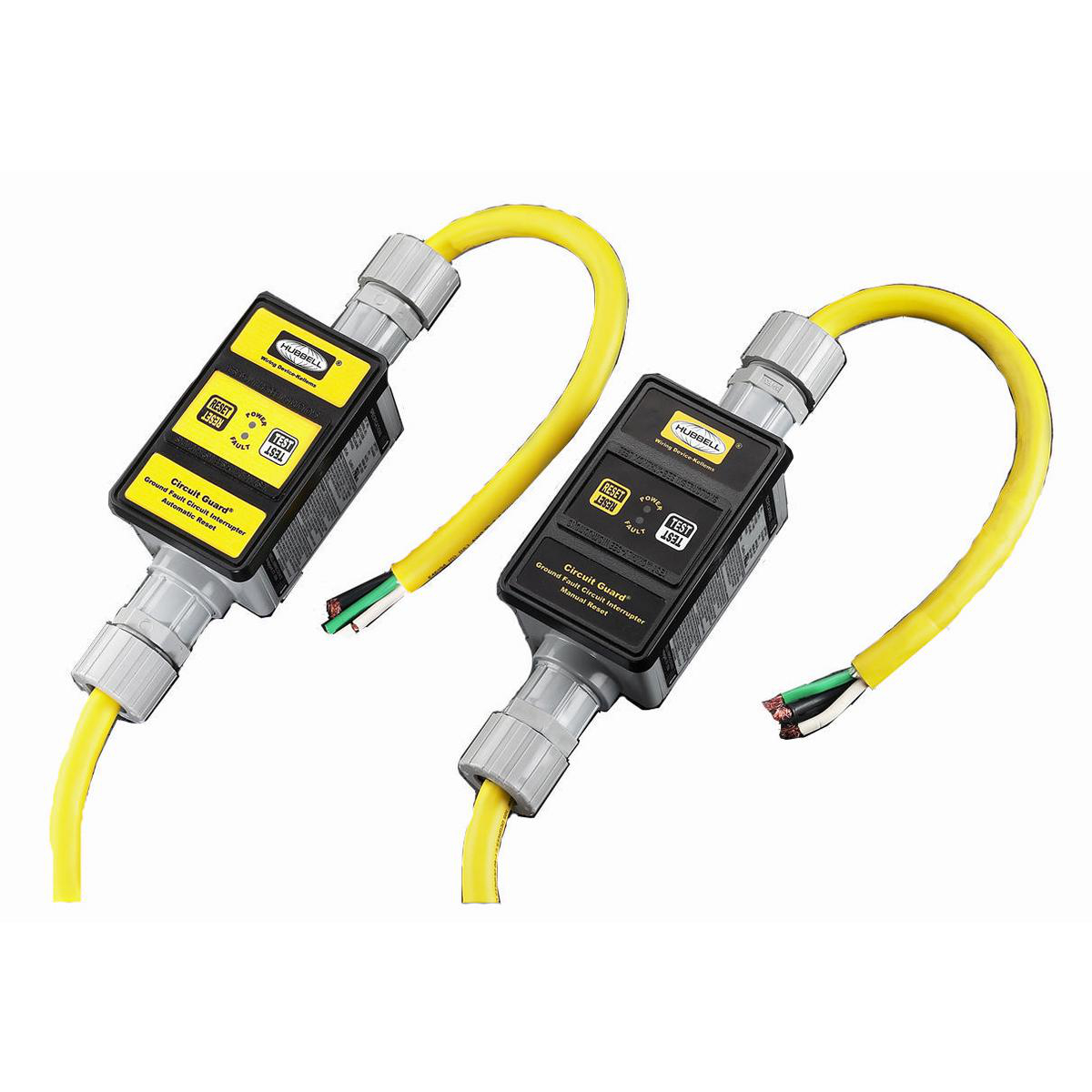

Product image for GFCI portable 240V AC 30A manual 2'
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

GFCI portable 240V AC 30A manual 2'

Manufacturer: Hubbell Wiring Devices | Catalog # GFP2301 | Electrozad South Part # 297439
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Circuit Guard® Portable 30 Ampere GFCI. UL Type 4X housing. Industrial grade design. Meets UL943 2003 Class A GFCI. Operating Temperature: -35..C to +66..C.

Technical Information

Amperage
30 A
Applications
Line Cord Only No Devices
Conductor Material
Copper
Conductor Size
#10AWG
Conductor Type
Copper
Cord Length
2 ft
Current
30 A
Frequency
60 Hz
Insulation Material
Elastomer
Number of Conductors
3
Operating Temperature
-30 To 150 degrees F
Standard
UL
Style
Manual Set
Temperature Rating
-35 degrees C to 66 degrees C
Type
Portable, Straight Blade, Manual, Industrial Grade, Extra Heavy-Duty
Voltage
240 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Circuit Guard®

General Product Info

12-Digit UPC
783585005614
Color
Black
Construction
Fabricated
GTIN
00783585005614
Jacket Material
PVC
Product Series
Extra Heavy Duty
Product UPC
78358500561
Weight
2.15 lb

Dimensions

Height
4.5 in
Length
2 ft
Outside Diameter
0.335 in
Width
10.0 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Red blinking light plus optional audible alarm
  • Trips if ground and neutral touch at load side
  • Electromagnetic Latching Mechanism
  • Open neutral protection Trips upon loss of neutral
