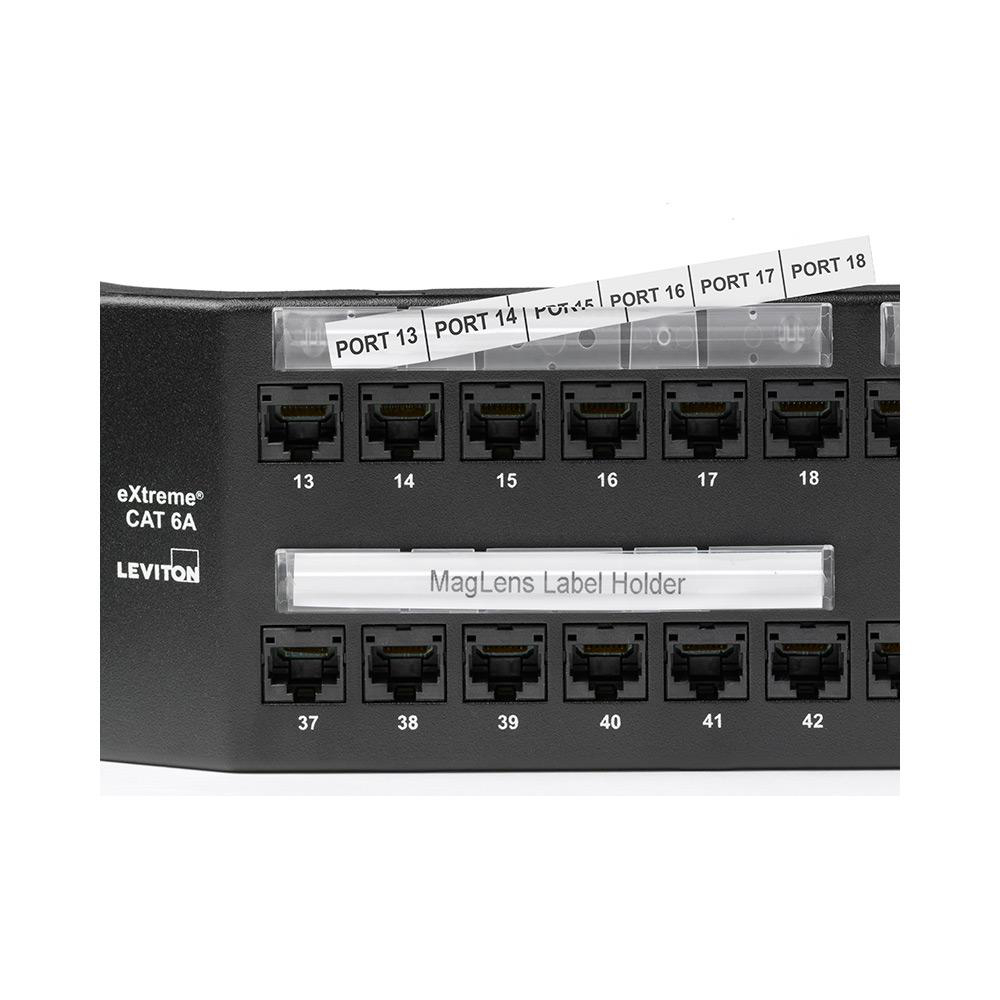

Category-6A 110-style angled patch panel. 16-gauge steel, painted black, PCB and plastics components are UL94 V-0. 2RU 48-port configuration. In-line IDC field is consistent with traditional 4-pair IDC terminations flexible circuit enhances link and channel performance. Patented isolation gap on circuit board minimizes alien crosstalk between ports. Conductor retention feature holds individual conductors in place during termination. Pair Separation Towers facilitate separation of category-6A conductors. Separated blocks provide room to work with larger category-6A cables and help to identify first-pair position. Terminates up to 50% faster than category-6A panels requiring an additional termination manager. Designed for use with industry-standard 19 inch racks and cabinets for telecommunication room and data centre applications. Patch panels exceed all component performance requirements in the ANSI/TIA-568-C.2 standard and the Class EA component requirements for the ISO 11801 standard from 1 to 500 MHz to support the IEEE 802.3an standard for 10GBASE-T network performance. Patch panels feature industry-standard, in-line IDCs and are component rated, which provides greater category-6A performance margins in link and channel field testing.
