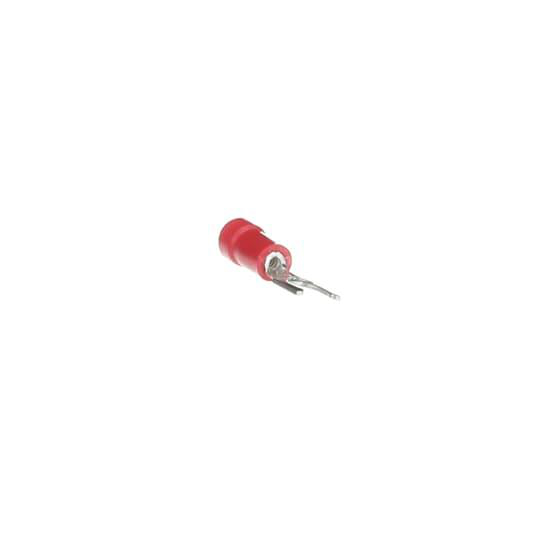

Product image for Terminal fork vinyl lck 22-16AWG red Sta-Kon
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Terminal fork vinyl lck 22-16AWG red Sta-Kon

Manufacturer: ABB | Thomas & Betts | Catalog # 18RA-10FL | Electrozad South Part # 296723
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Sta-Kon® Vinyl insulated locking fork, expanded insulation, enable easy installation because the mounting screw does not have to be completely removed. Brazed-seam barrel is serrated for high pull-out value. Terminal is high-conductivity electrolytic copper, electro-tin plated.

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Locking, Short Sleeve
Voltage
600 V
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806488
Color
Red
Finish
Electro Tin-Plated
GTIN
05414363135081

Dimensions

Height
7.3 in
Thickness
.03 in
Width
8.9 in
