High Speed Fuse Amp-Trap® A15QS 150VAC 150VDC 15A Ferrule | Electrozad South

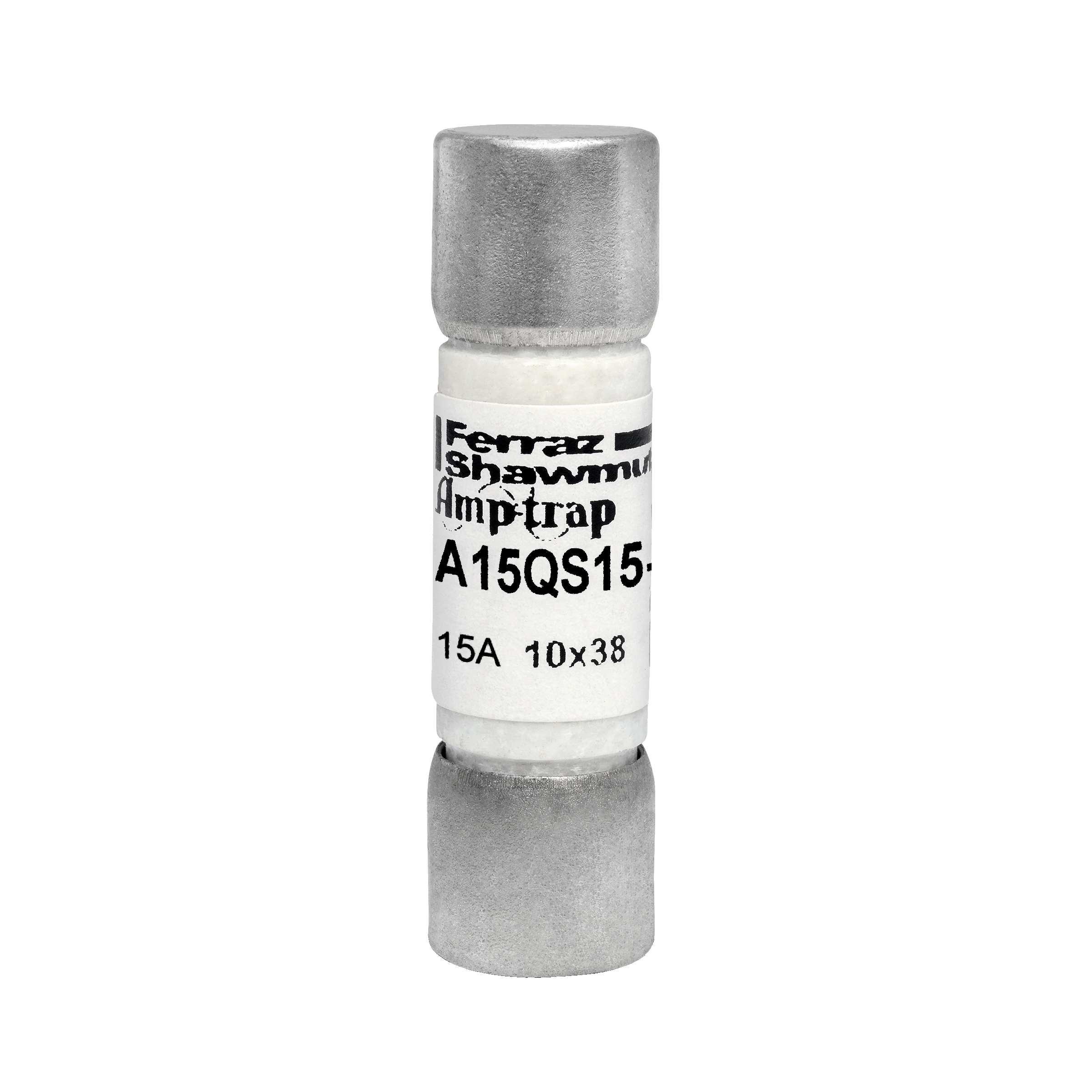

Product image for High Speed Fuse Amp-Trap® A15QS 150VAC 150VDC 15A Ferrule
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

High Speed Fuse Amp-Trap® A15QS 150VAC 150VDC 15A Ferrule

Manufacturer: Ferraz Shawmut Mersen | Catalog # A15QS15-2 | Electrozad South Part # 296635
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line...s compact design is perfect for those applications that have limitations on available space.

Technical Information

Amperage
15 A
Applications
For Protection of AC/DC Drives, UPS, Rectifiers and other Equipment of 150 V or Less
Connection Type
Ferrule
Contact Material
Tin Plated Brass, Silver Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
150 V
Rated Voltage DC
150 V
Response Time
10 Millisecond
TC Connection
Ferrule
Terminal Type
Ferrule
Type
Form 101, General Purpose, High-Speed, Current Limiting
Voltage
150 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001457792
Construction
Ceramic/GMG
GTIN
30782001457793
Weight
0.02 lb

Dimensions

Diameter
0.41 in
Length
1.5 in

Certifications & Compliance

Country of Origin
Mexico
