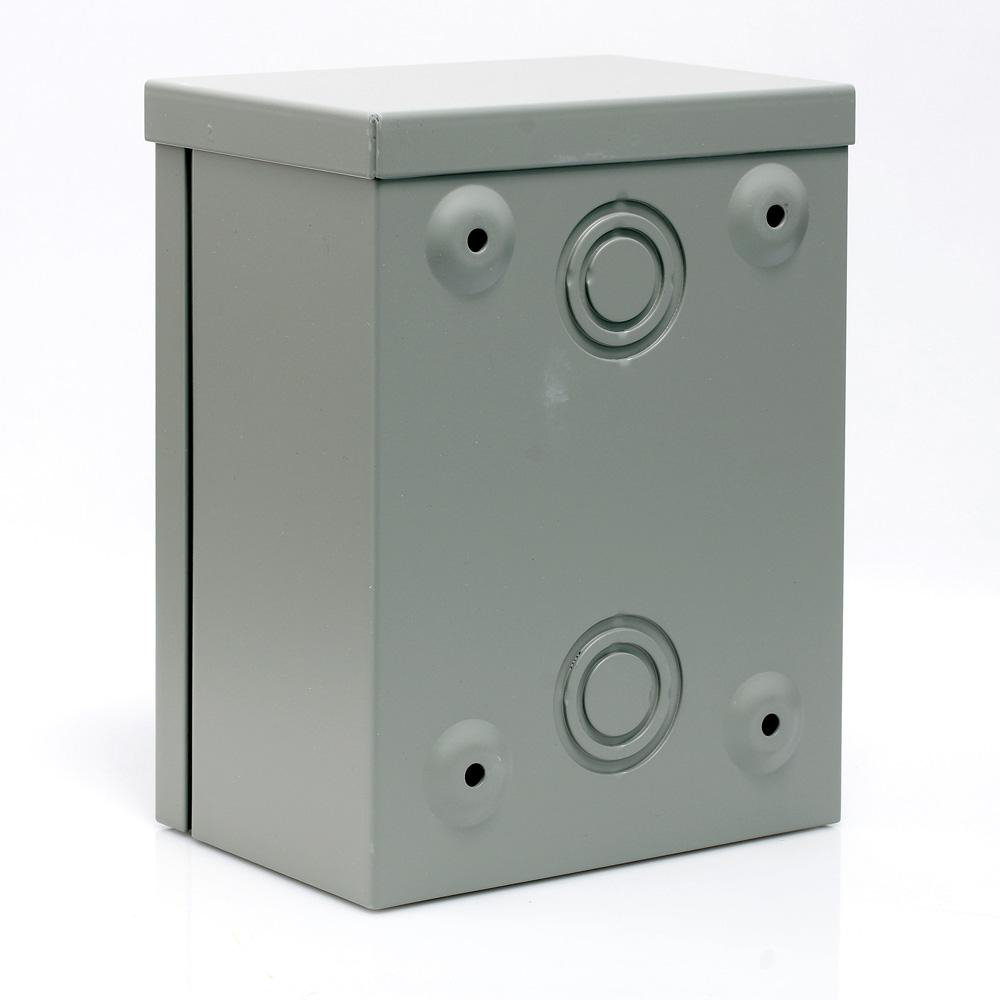

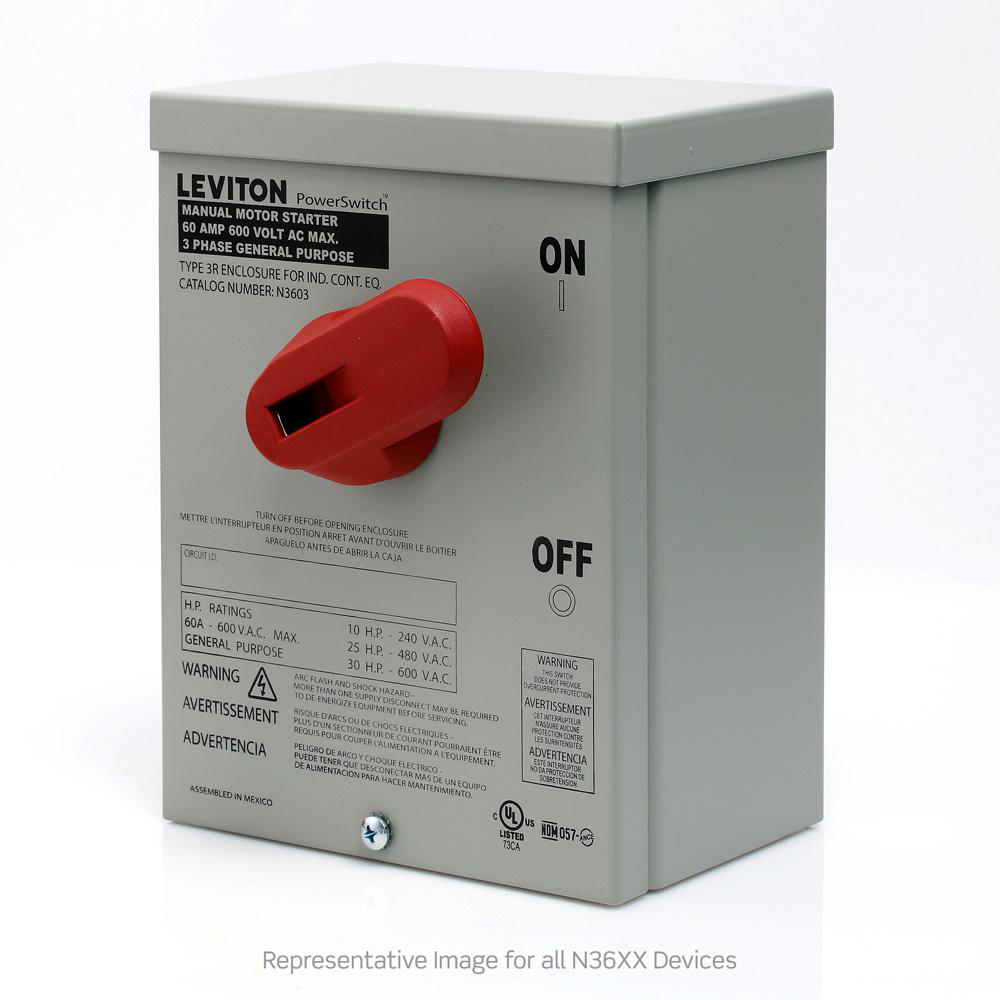

Enclosure NEMA-3R metal 60A grey

Manufacturer: Leviton Manufacturing | Catalog # N36NC | Electrozad South Part # 295808
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Enclosure, type-3R. For use with 60 A motor starter switches.

Technical Information

Actuator
Toggle
Amperage
60 A
Applications
For Commercial use
Connection Type
Back Wired,Side Wired
Device Type
Enclosure
Enclosure
Powder-Coated Steel
Material
Steel
Operating Temperature
-40 To 65 degrees C
Size
8.1 H x 6.3 W x 4.3 D IN
Standard
ANSI (C-73),CUL Per CSA C22.2 No. 111 (File E63969),NEMA (WD-1 & WD-6),NOM Certified (057),UL508 (File E63969)
TC Connection
Back Wired;Side Wired
Type
Enclosure

Manufacturer Information

Brand
Leviton
Sub Brand
Motor Starter Switches

General Product Info

12-Digit UPC
078477101339
Color
Gray
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Finish
Powder Coated
GTIN
00078477101339
Used With
MS602-FW/MS603-FW Motor Controller Switch

Dimensions

Depth
4.3 in
Height
8.1 in
Warranty Length
10 yr
Width
6.3 in

Certifications & Compliance

Certifications
CULus
Country of Origin
Please Contact Customer Service
