BIBD2502

Manufacturer: Burndy | Catalog # BIBD2502 | Electrozad South Part # 295451
$76.76 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

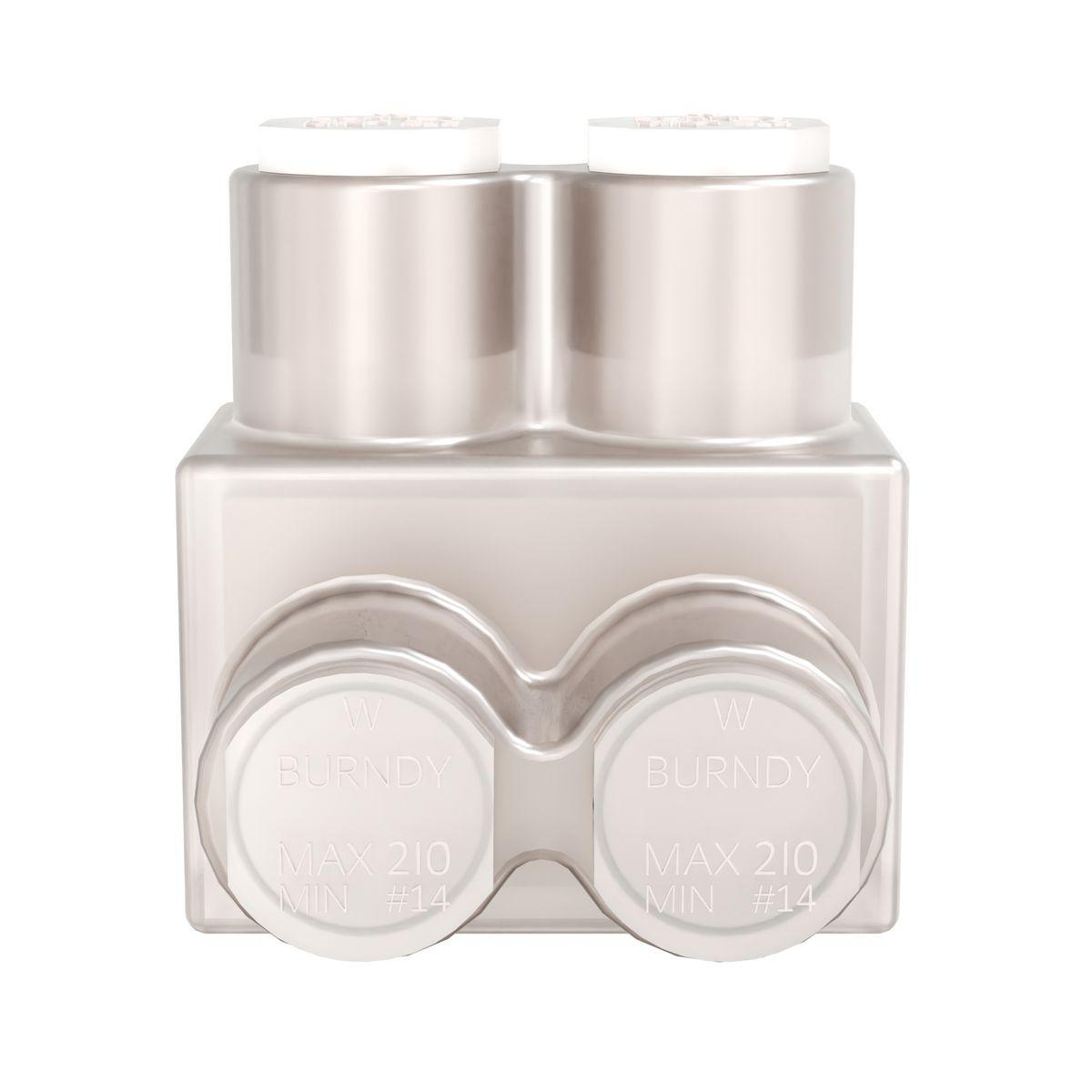

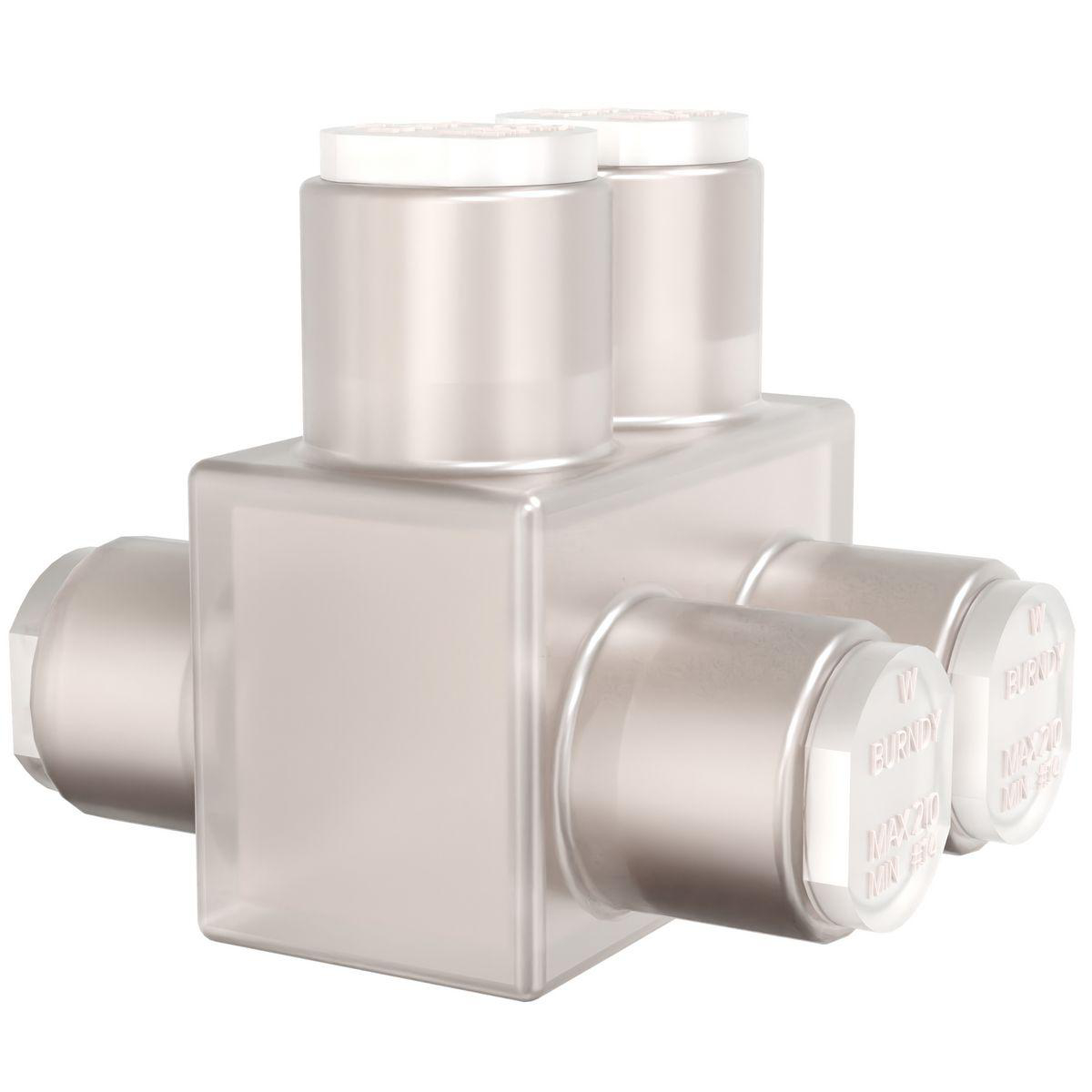

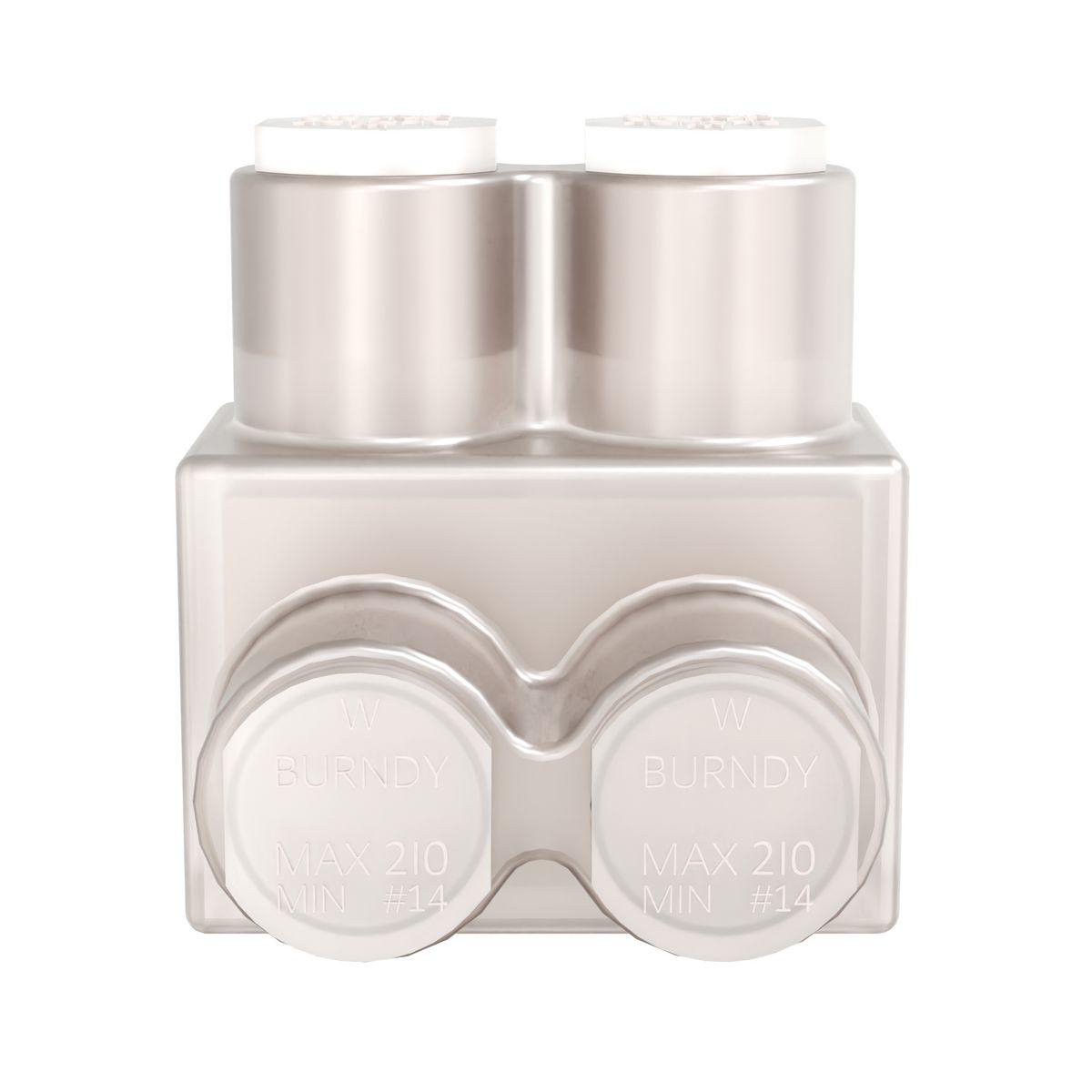

Clear Plastisol Covered Double Sided Entry, 2 Ports, #10 AWG-250 kcmil, Al/Cu Rated. Oxide inhibitor is pre-installed.

Technical Information

Applications
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
Conductor Size
1 AWG
Connection Type
Multi Tap
Insulation Type
Plastisol
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size
2.14 IN Height X 2.64 IN Width X 23 IN Length
Standard
CSA,E2186,UL
Temperature Rating
194
Type
BIBD, Multi-Port, Two Side
Voltage
600 V

Manufacturer Information

Brand
Burndy
Sub Brand
Mole™, Unitap™

General Product Info

12-Digit UPC
781810224052
GTIN
00781810224052
Product UPC
78181022405

Dimensions

Height
2.13 in
Length
2.03 in
Overall Length
2.03 in
Width
2.64 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
Overview
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • Clear plastisol allows visual confirmation that conductor is properly inserted
  • Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping
  • Range-taking capability reduces number of connectors necessary to carry in inventory
