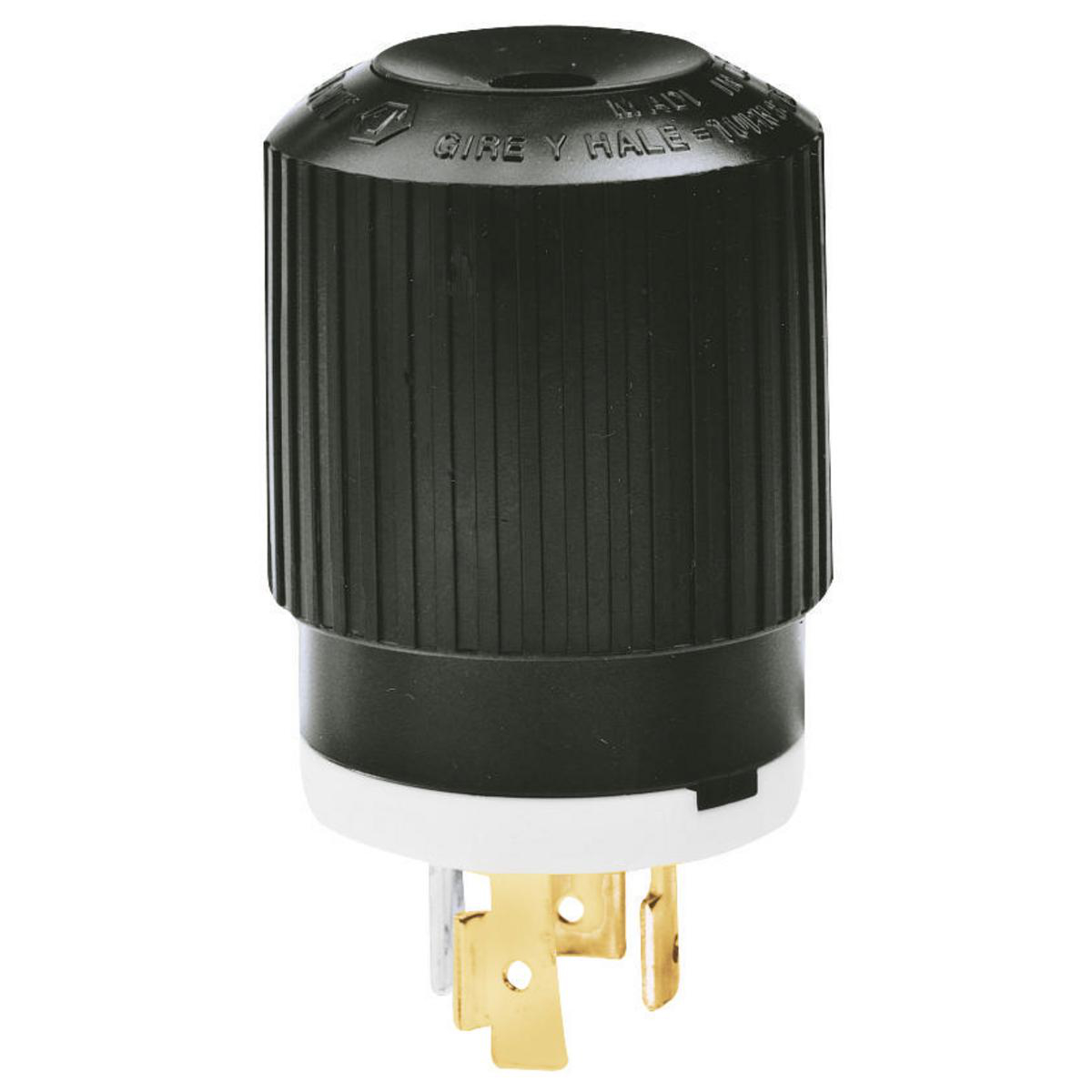

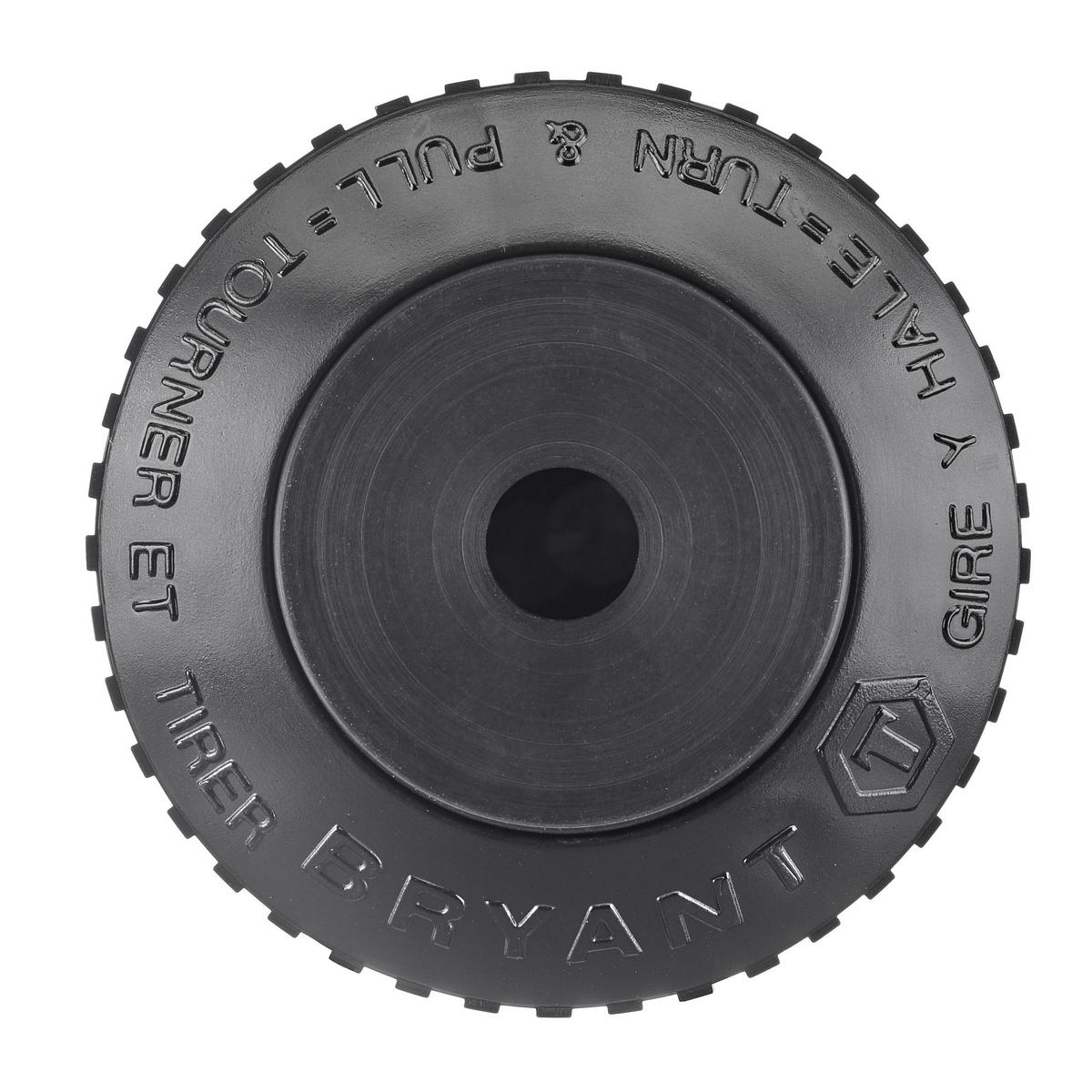

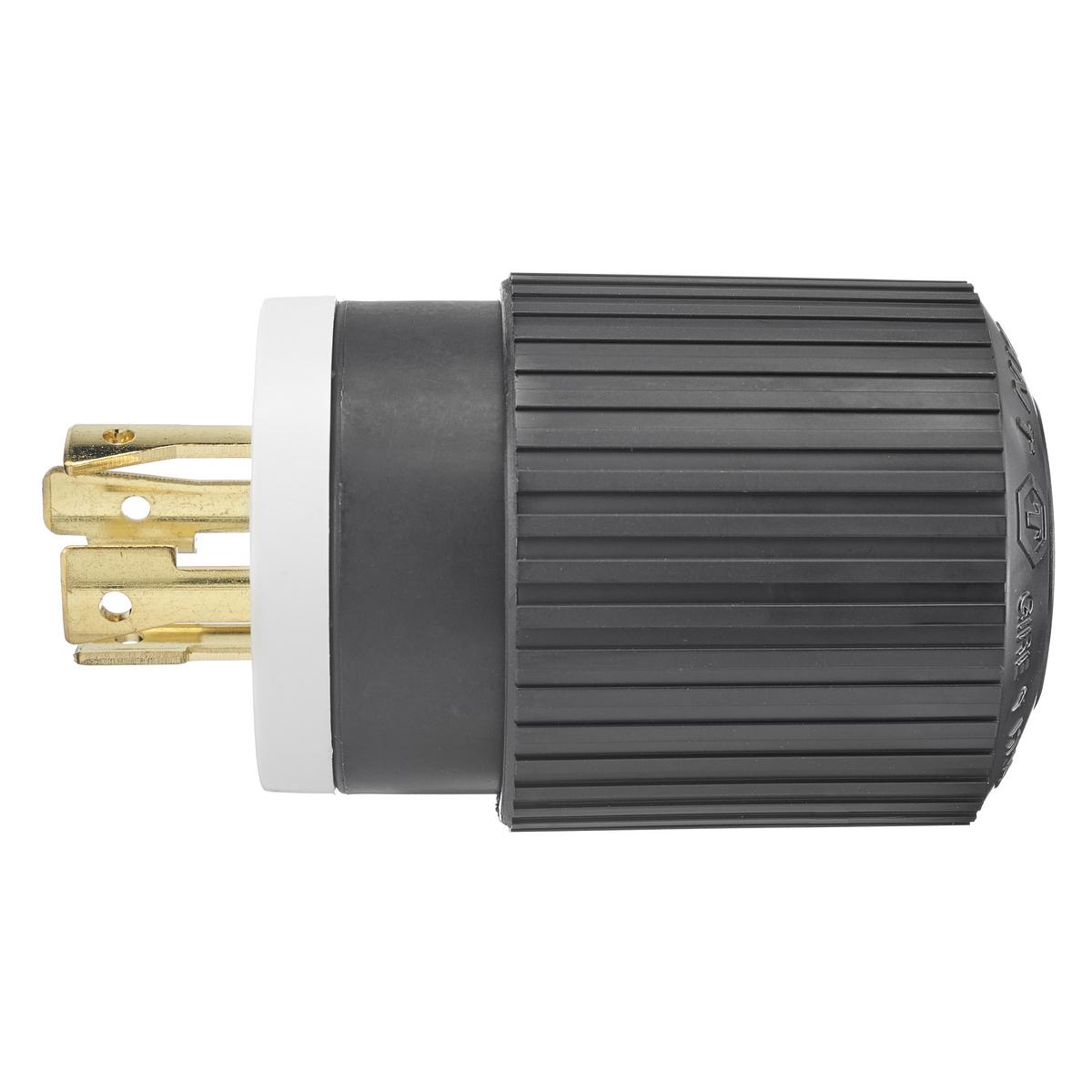

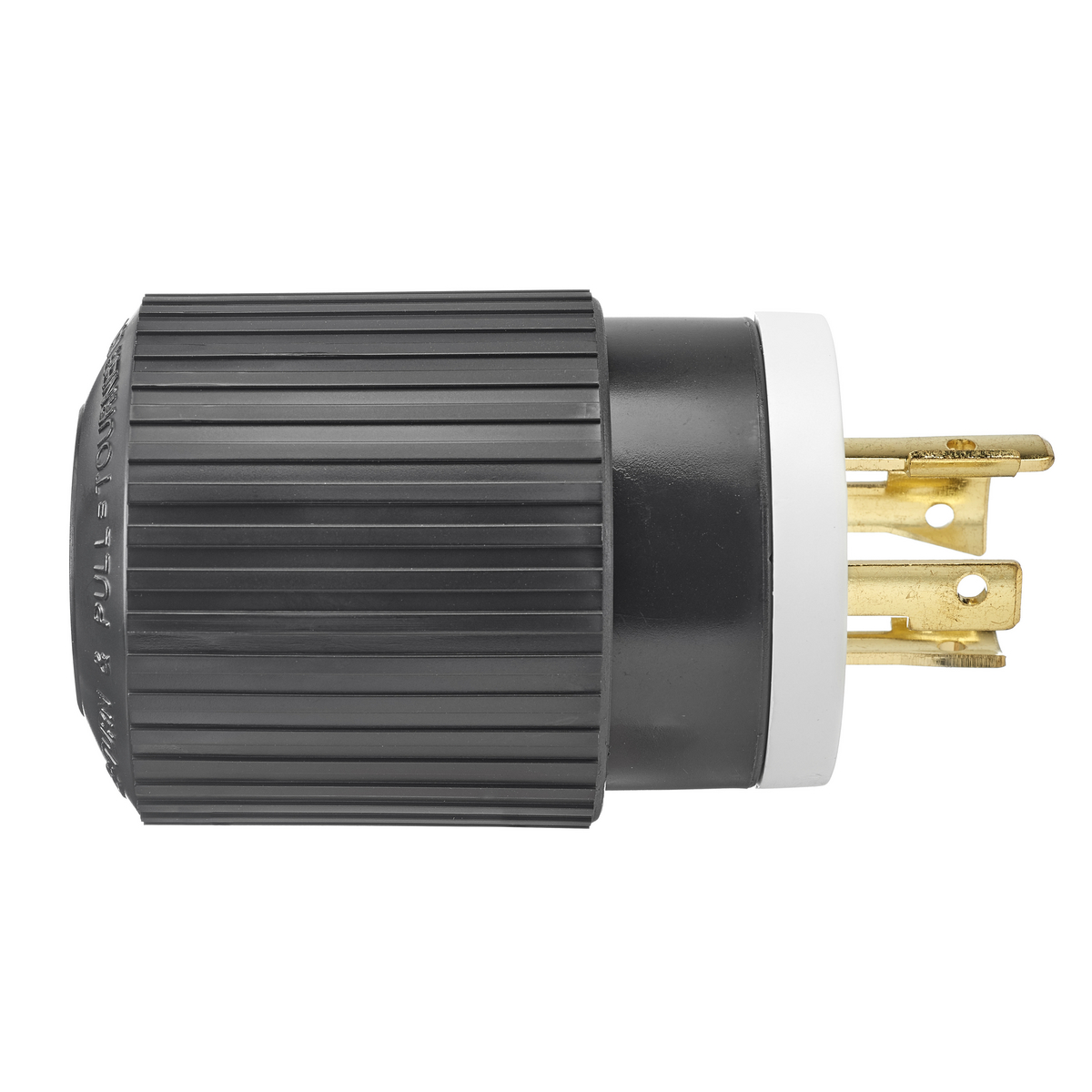

LKG PLUG, 20A 3PH 250V, L15-20P,B/W

Manufacturer: Bryant Wiring Device | Catalog # 71520NP | Electrozad South Part # 295393
*Call For Price*
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Locking Devices, Industrial, Male Nylon Plug, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black and White

Technical Information

Amperage
20 A
Applications
Extra Heavy Duty Industrial
Cord Type
All Listed Portables
Current
20 A
Material
Composite
NEMA
L15-20P
Number of Phases
3
Number of Poles
3,3
Number of Wires
4,4
Size
Standard Sized
Style
Internal Cord Clamp
TC Connection
Screw Terminal
Type
Tripple Gripper Cord Grip
Voltage
250 V
Wattage
5000 W
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786695924
Color
Black,White
GTIN
00781786695924
Product UPC
78178669592

Dimensions

Height
2.86 in
Length
2.13 in
Width
2.13 in

Certifications & Compliance

Country of Origin
China
Overview
  • Neutral blade is nickel-plated for easy identification
  • Captive, combination Slot/Phillips assembly screws
  • Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
  • Hand grip features wide-rib, non-slip design
  • Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention
  • Double wall construction for extra durability
