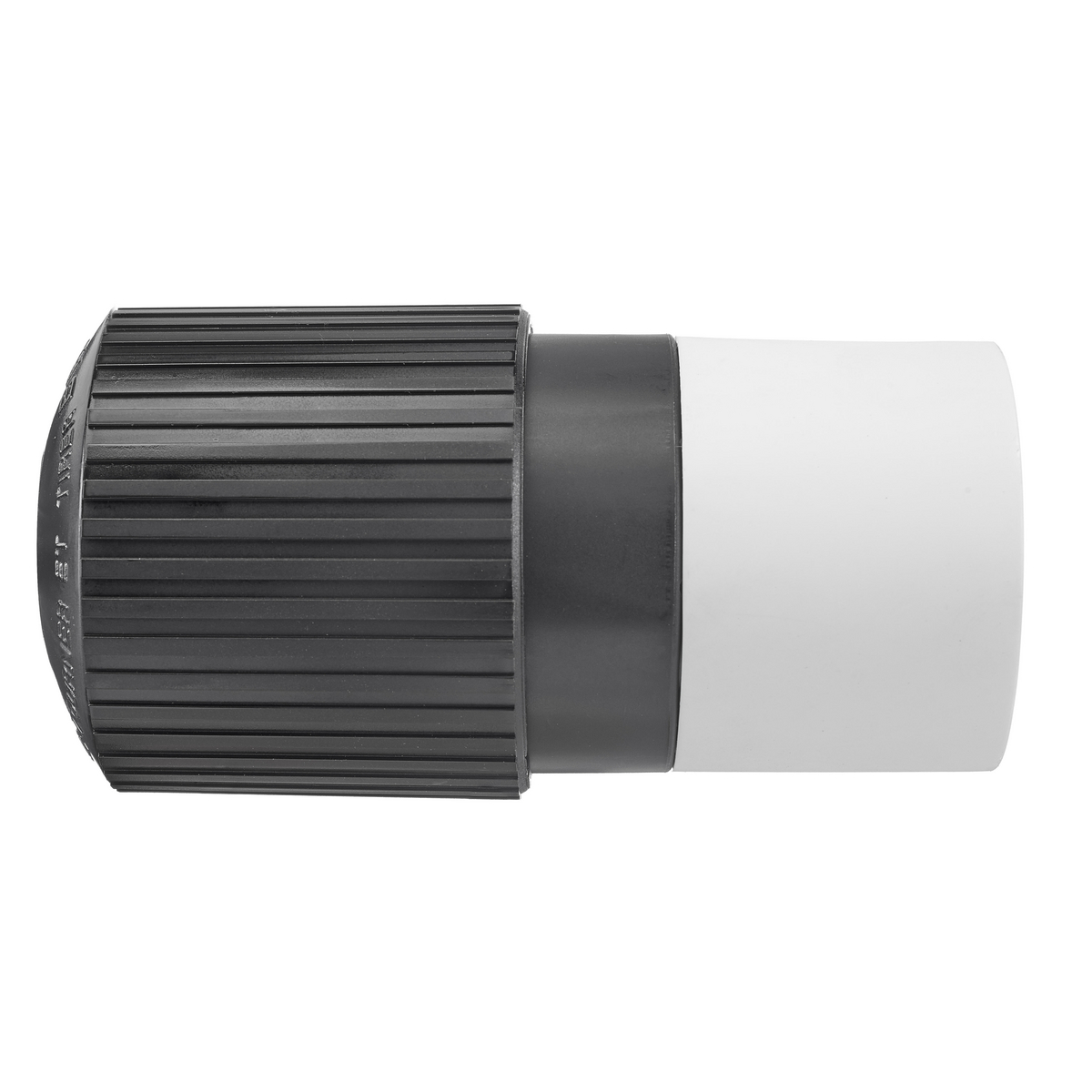

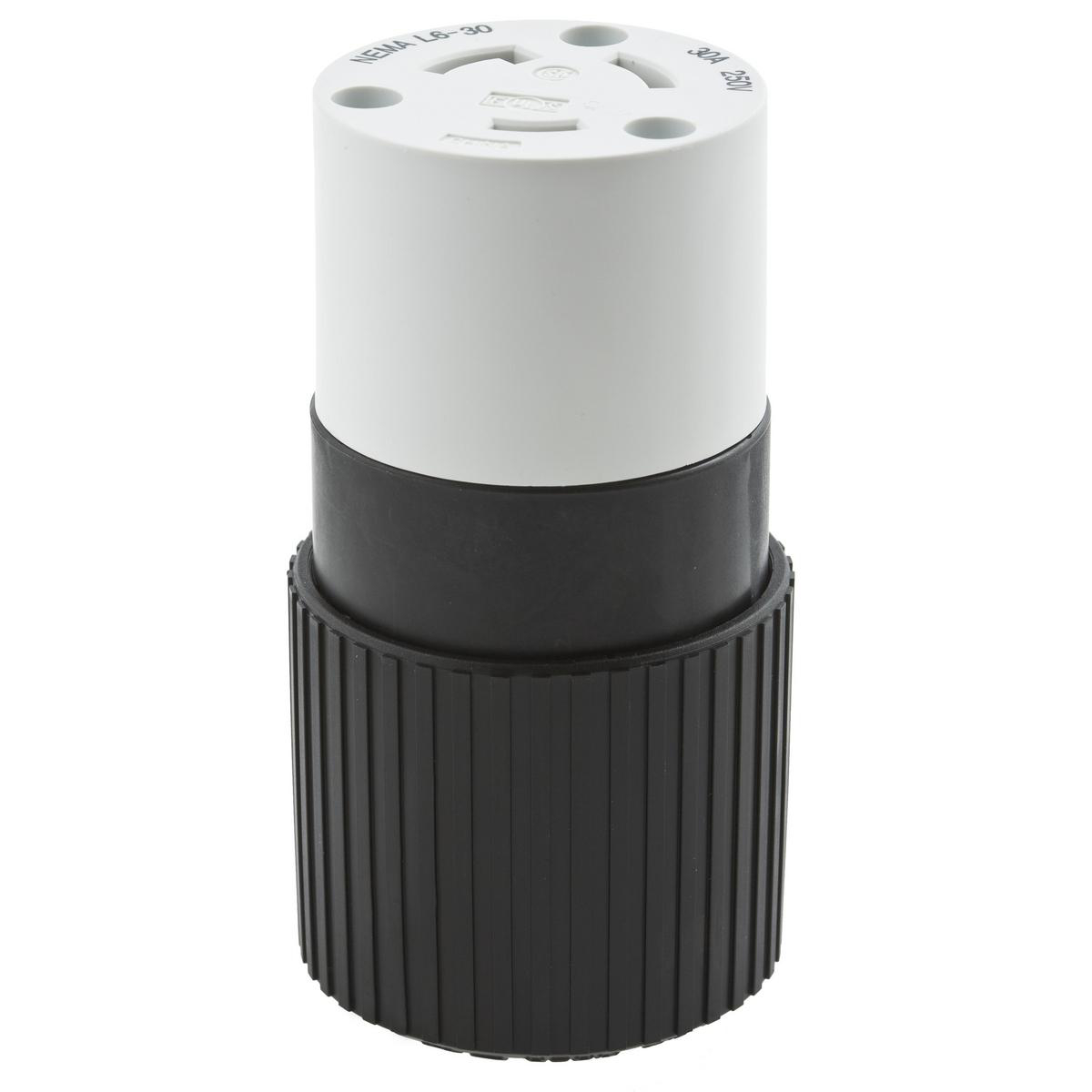

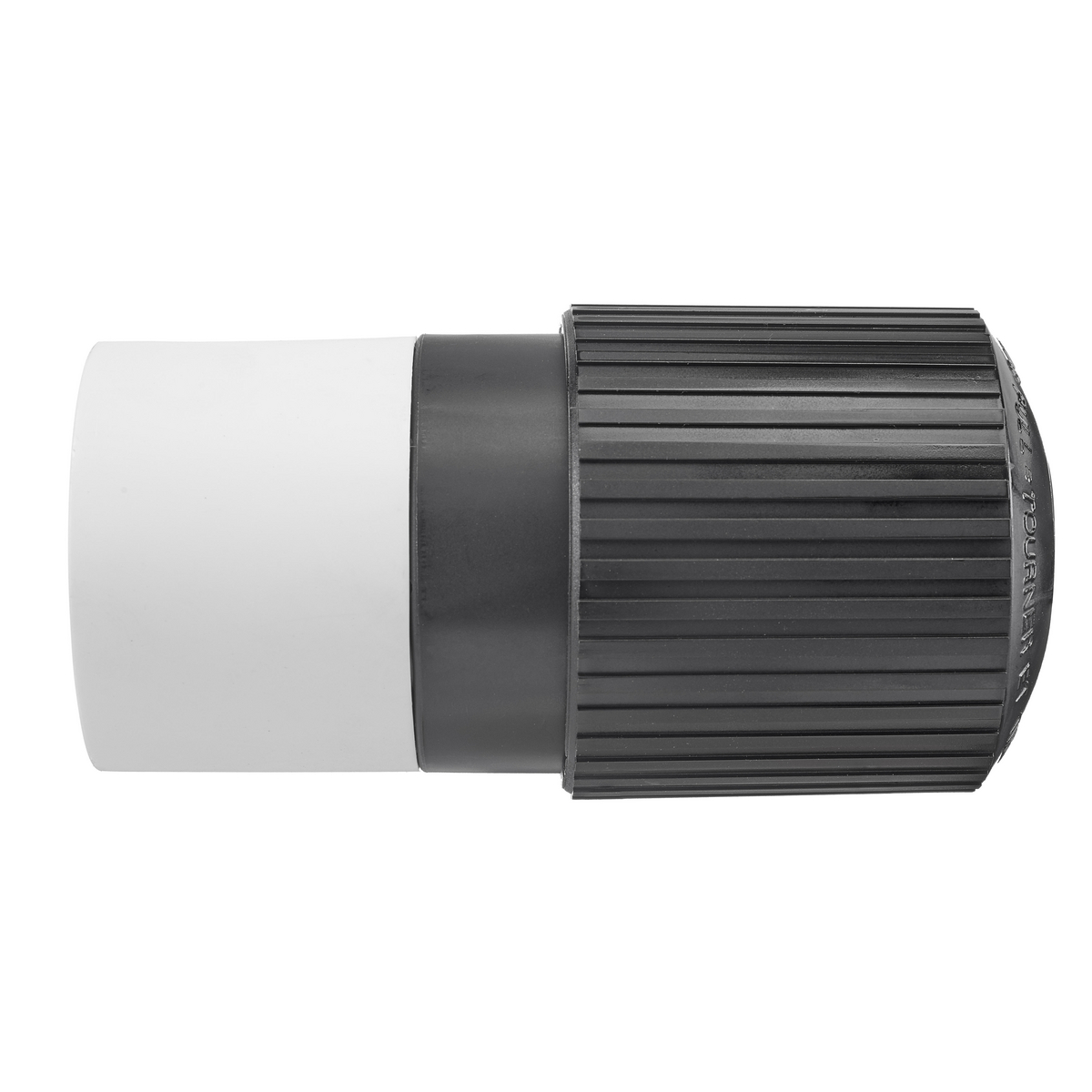

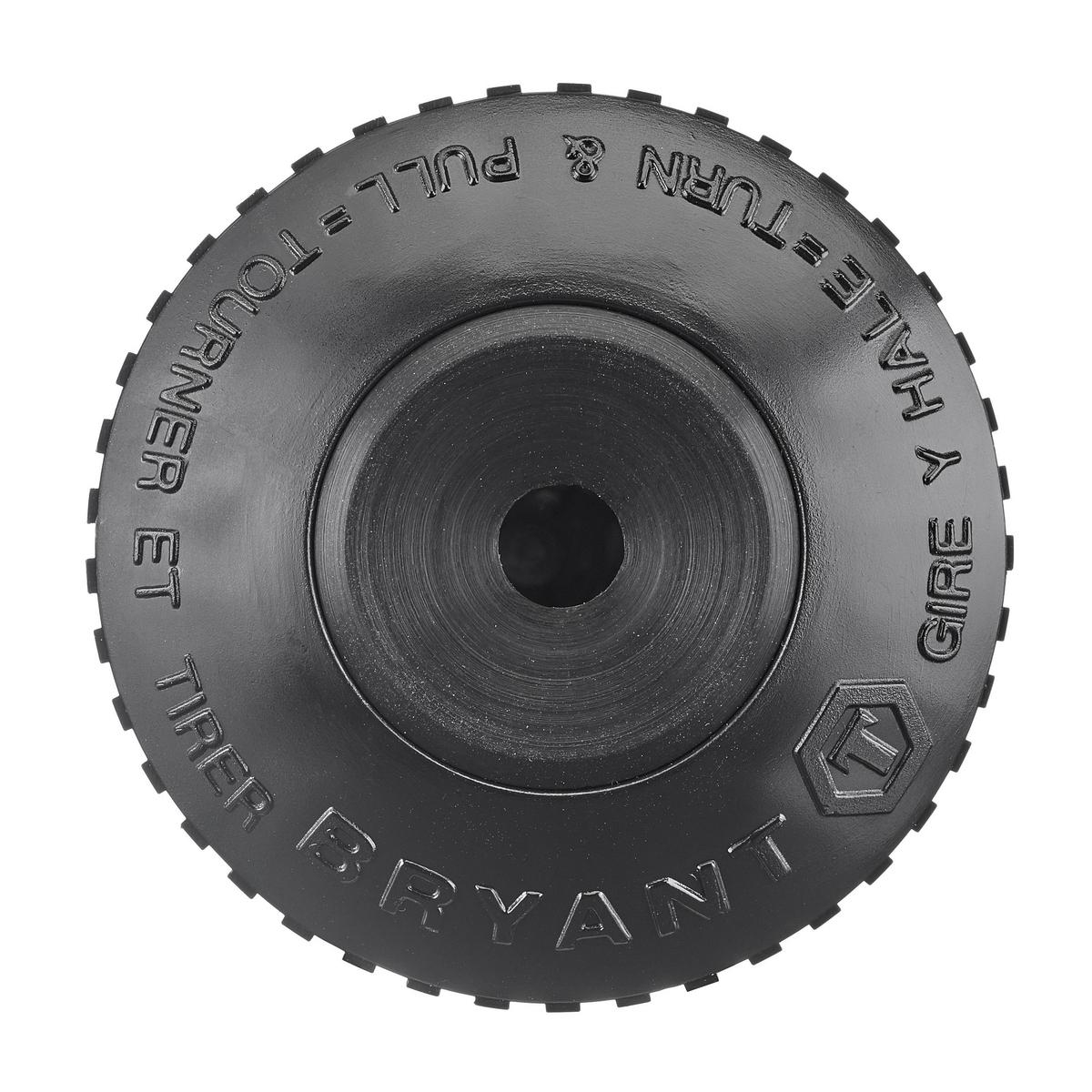

LKG CONN, 30A 250V, L6-30R, B/W

Manufacturer: Bryant Wiring Device | Catalog # 70630NC | Electrozad South Part # 295386
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Locking Devices, Industrial, Female Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black and White.

Technical Information

Amperage
30 A
Applications
Heavy Duty Industrial
Current
30 A
Material
Composite
NEMA
L6-30R
Number of Conductors
3-Wire Grounding
Number of Phases
1
Number of Poles
2,2
Number of Wires
3
Size
Standard Sized Product
TC Connection
Screw Terminals
Temperature Rating
-40 to 75/-25 to 75 C
Type
Tech-Spec Triple Gripper
Voltage
250 V
Wattage
7500 W
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786689497
Color
Black,White
GTIN
00781786689497
Product UPC
78178668949

Dimensions

Height
3.90 in
Length
2.13 in
Width
2.13 in

Certifications & Compliance

Country of Origin
China
Overview
  • Impact/chemical resistant, toughened nylon construction

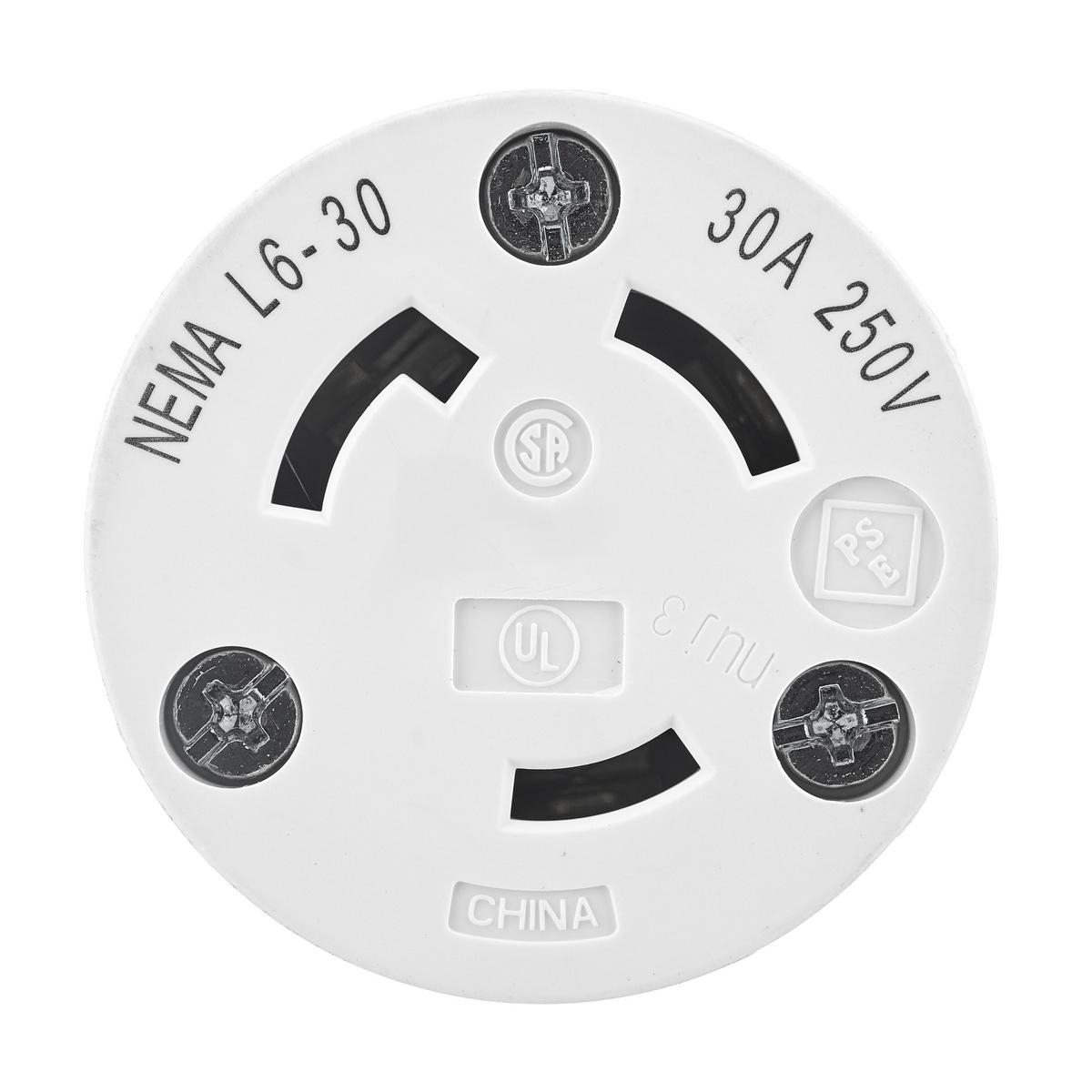

  • Amperage, voltage and NEMA configuration imprinted on face for easy identification
  • Face and body feature alignment keys for easy assembly
  • Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention
