Box conduit feed stocked pre-wired 20A 125V

Manufacturer: Hubbell Wiring Devices | Catalog # MCWF2020 | Electrozad South Part # 295371
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing

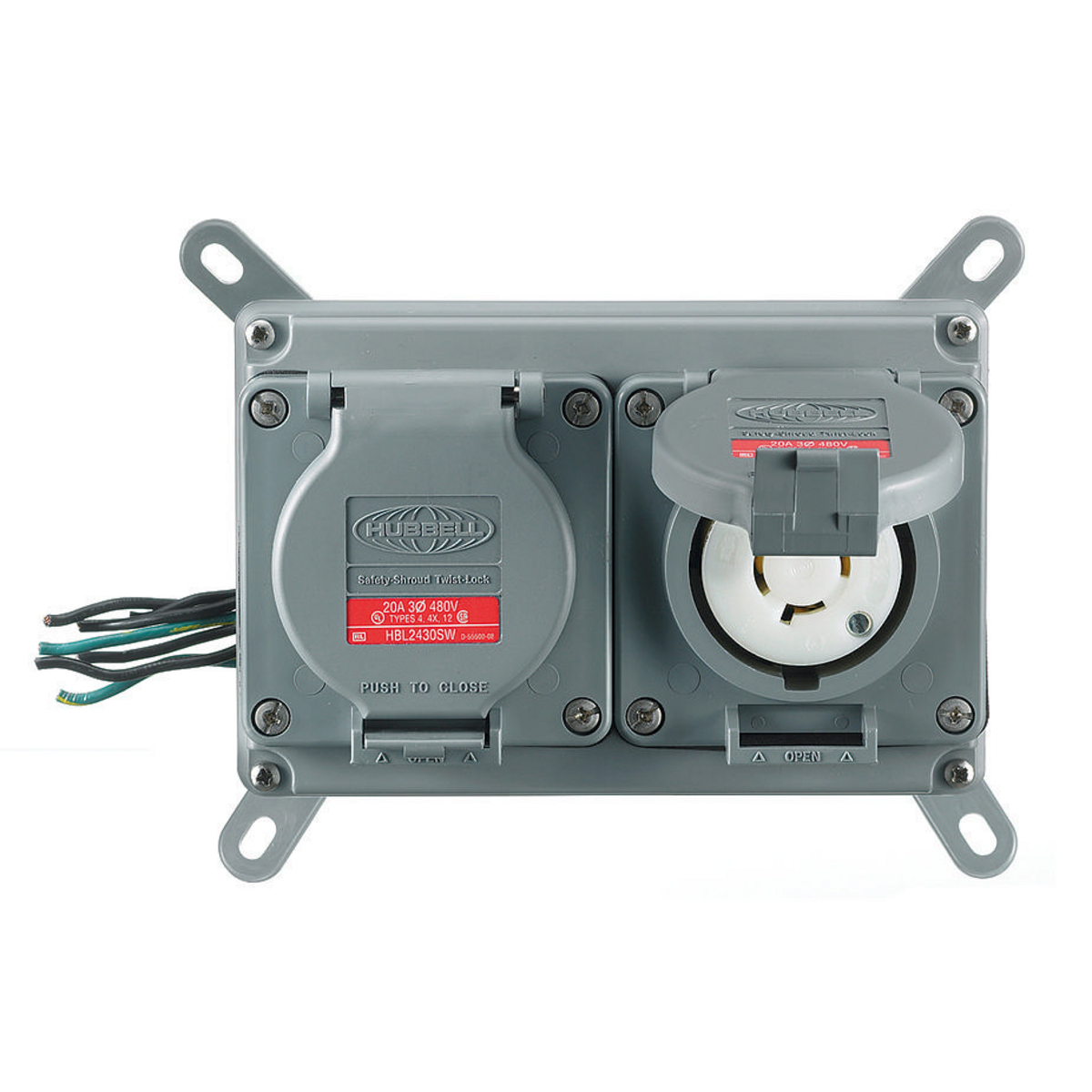

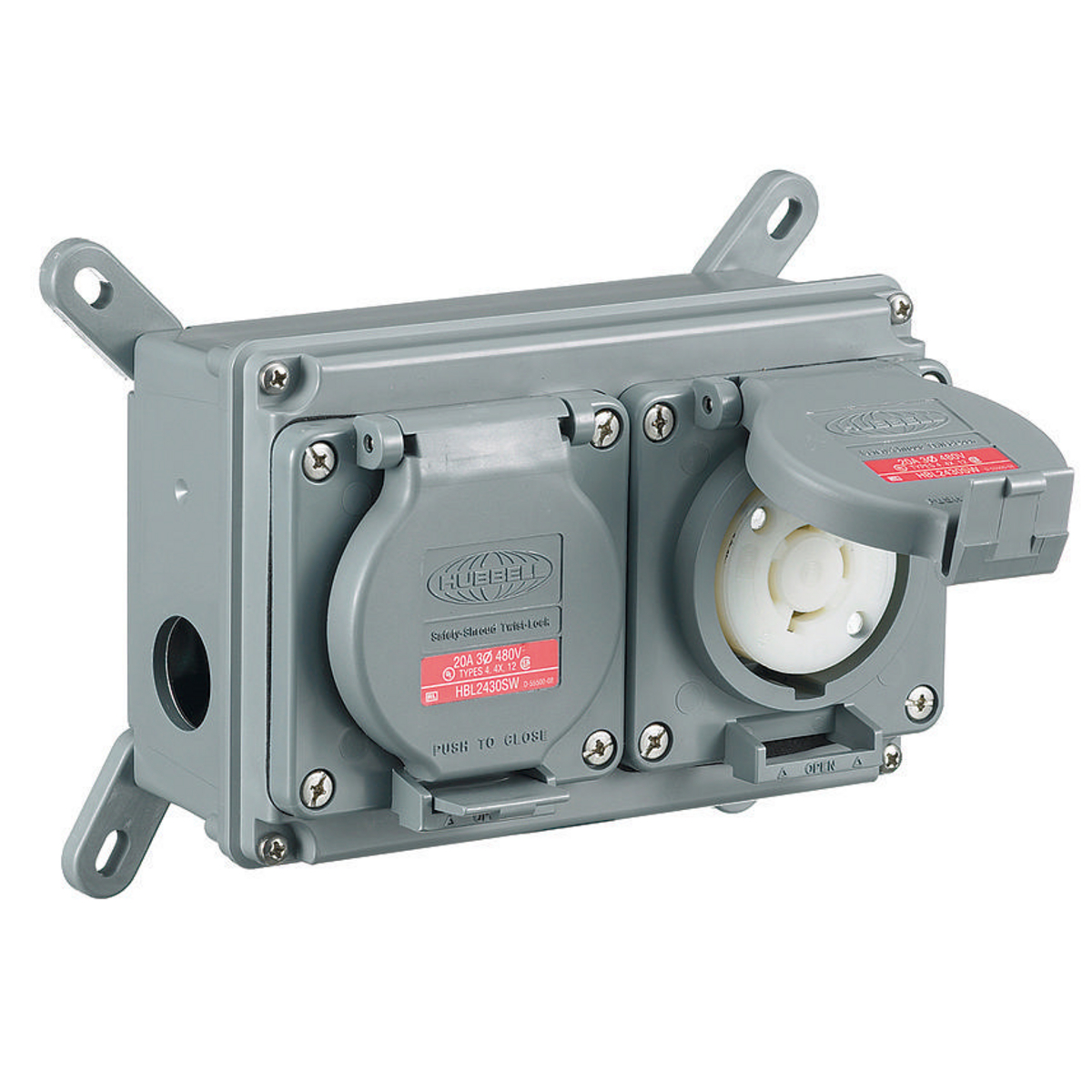

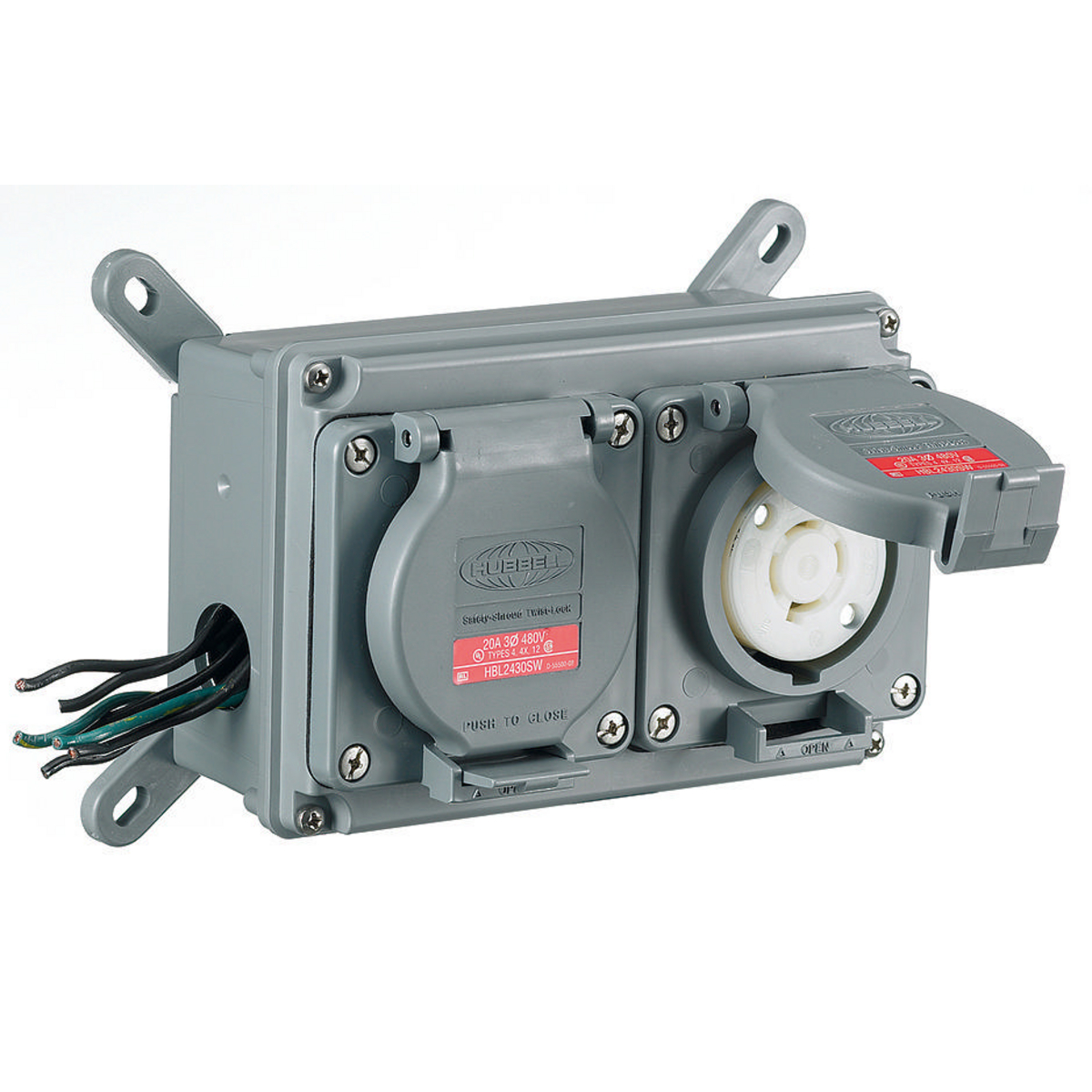

Pre-wired weatherproof conduit feed stocked box. Device type-M. Watertight Safety-Shroud receptacles. NEMA type, 20 A at 125 V Twist-Lock. Conduit feed UL type-4X convenience power. Pre-wired devices for installation simplicity. Corrosion, impact and chemical resistant VALOX enclosure. External feet provide mounting adjustability. Rigid, PVC, flexible conduit supply options.

Technical Information

Applications
Plug Together Power Distribution, No Pass Thru
Material
Thermoplastic
Mounting Type
Screw
Number of Poles
2 Pole
Number of Wires
3
Size
Standard Sized Product
TC Connection
Terminal Screws
Type
2-Pole, 3-Wire, 1-Phase, Standard
Wattage
2,500 Watt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
LINKOSITY Power Distribution

General Product Info

12-Digit UPC
783585364056
Color
Black
Environmental Conditions
NEMA 4X Weather Resistant
GTIN
00783585364056
Product UPC
78358536405
Used With
Watertight Safety Shroud Receptacle
Overview
  • No Power pass thru option
  • LINKOSITY® connection
  • Device identification marking
