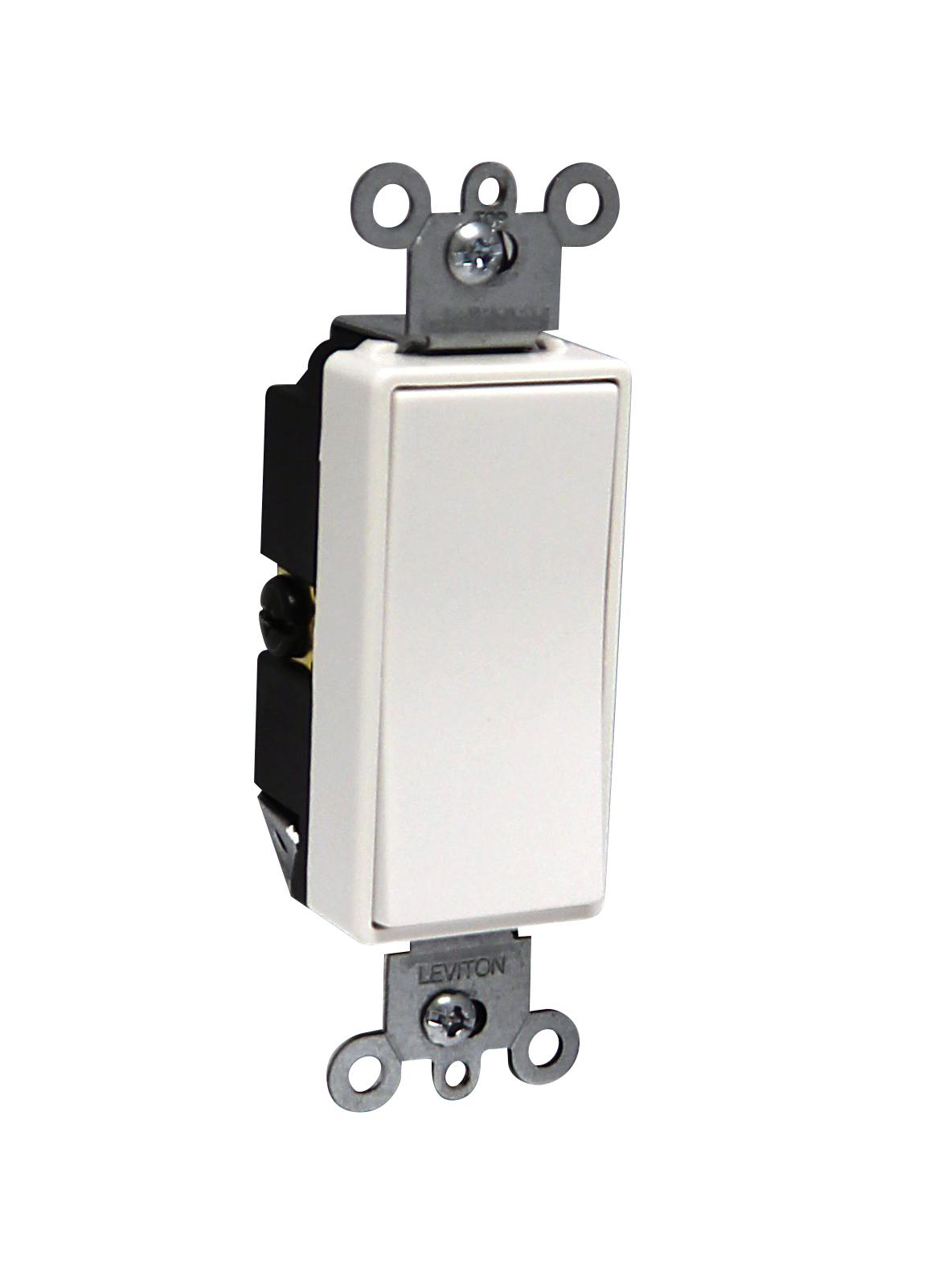

Product image for Switch Decora commercial 3way 347V 15A white
Image thumbnail 0
Image thumbnail 1
To:
CC:

Switch Decora commercial 3way 347V 15A white

Manufacturer: Leviton Manufacturing | Catalog # 5693-CW | Electrozad South Part # 29454
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet
Decora plus™ AC quiet commercial specification grade rocker switch features Full rated current capacity with tungsten, fluorescent or resistive loads. Back and side-wiring terminals accept both solid and stranded wire to ease installation. New architecturally-styled smooth-action concave rocker.

Technical Information

Actuator
Rocker
Applications
For Commercial use
Contact Rating
347 VAC, 15 A
Horsepower
1/2 @ 120 V;2 @ 240 V HP
Material
Thermoplastic
Number of Poles
3
Operating Temperature
-40 to +120 DEG C
Power Rating
1/2 hp at 120 V, 2 hp at 240 V
Size
4.31 H x 1.30 W x 1.60 D IN
TC Connection
Back and Side Wire
Temperature Rating
-40 to 120 degrees C
Terminal Type
Screw, Grounded
Type
3 Way

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
068679180751
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
50068679180756
