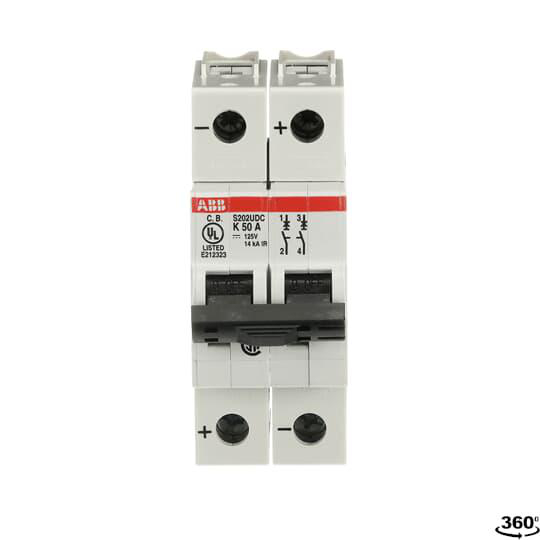

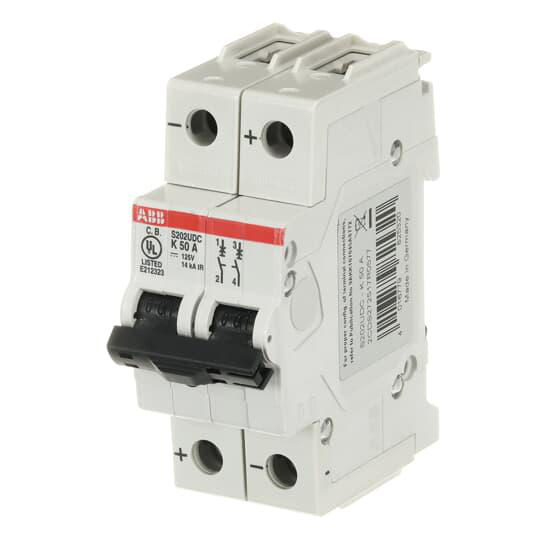

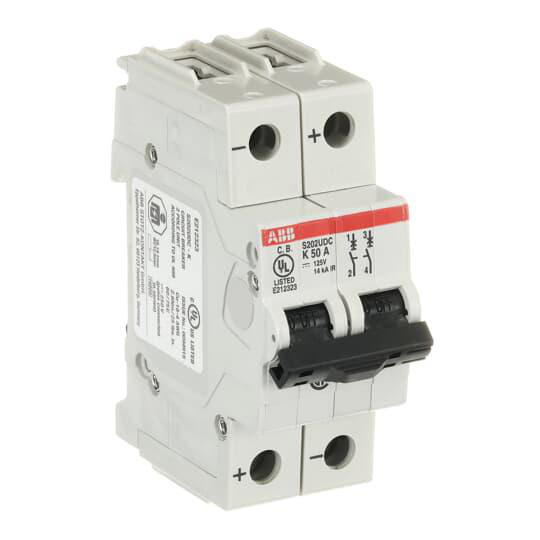

Product image for S200UDC MCB 2P K 50A 60 VDC BCPD
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

S200UDC MCB 2P K 50A 60 VDC BCPD

Manufacturer: ABB Inc | Catalog # S202UDC-K50 | Electrozad South Part # 293803
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Miniature Circuit Breaker, Supplementary Protector, Rated Current 50 Amps, 2 Pole, Interrupt Rating 14 kA, Trip Curve K, Electromechanic Tripping Mechanism for Short Circuit Protection, Voltage up to 60/125 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
50 A
Applications
Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Interrupt Rating
14 kA
Number of Poles
2
Operating Temperature
-25 to +55 C
Standard
UL 489
Trip Type
K
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325570015
GTIN
04016779825320

Dimensions

Height
3.6221 in
Length
71 mm
Width
1.378 in
