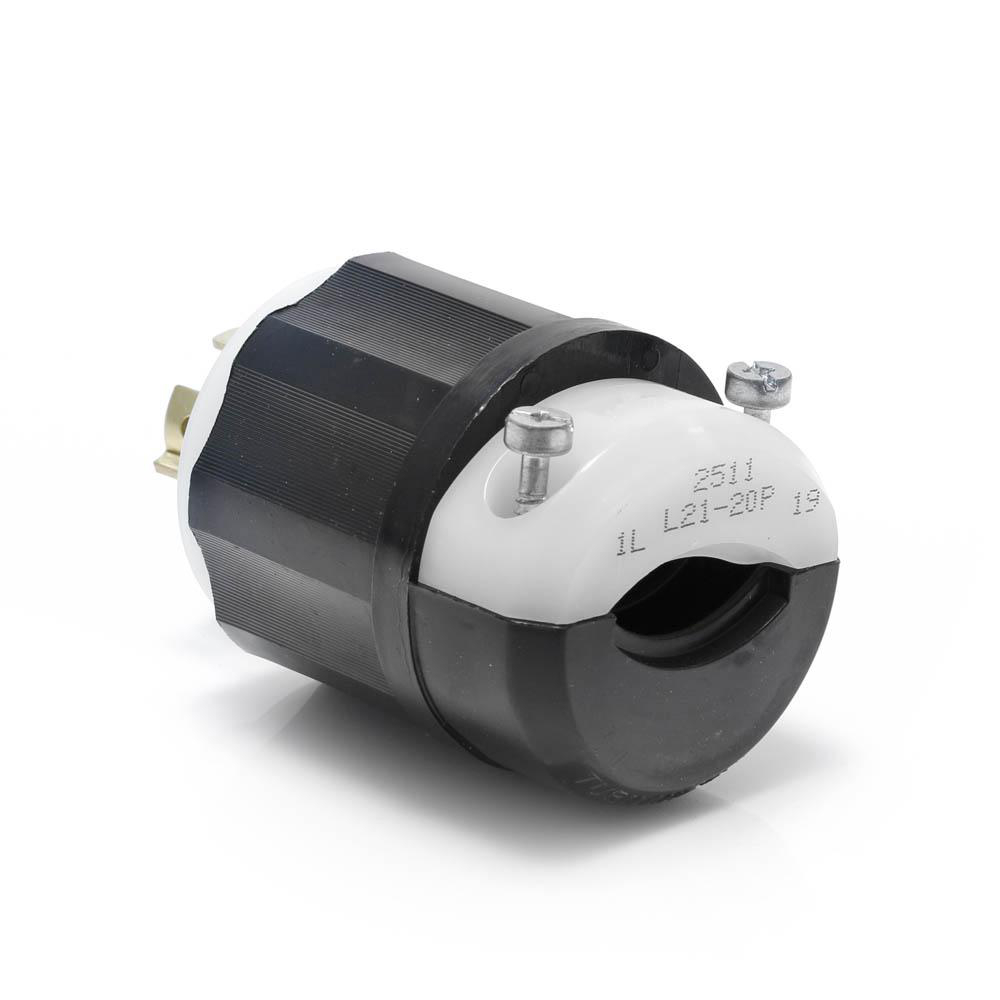

Plug locking ind grade nyl 4P5W 208V 20A blk/wht

Manufacturer: Leviton Manufacturing | Catalog # 2511 | Electrozad South Part # 292393
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing
Locking plug offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. It is constructed of nylon with solid brass blades or contacts and steel, zinc plated assembly screws.

Technical Information

Amperage
20 A
Applications
For Industrial use
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
2 hp
Material
Impact Modified Nylon
Mounting Type
Cable
NEMA

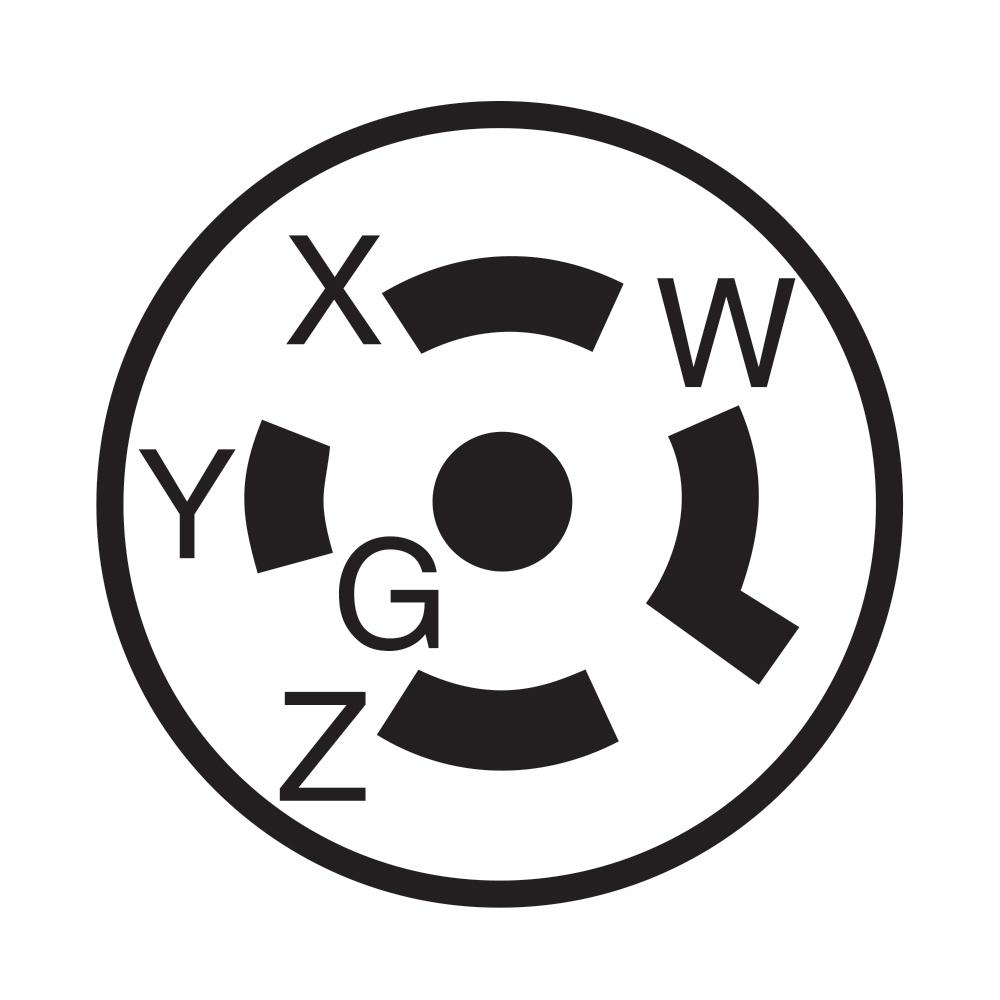

L21-20P
Number of Phases
3
Number of Poles
4
Number of Wires
5
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Diameter X 2.47 L IN
Standard
ANSI C-73
TC Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Plug
Voltage
120/208 V
Wire Count
5
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand

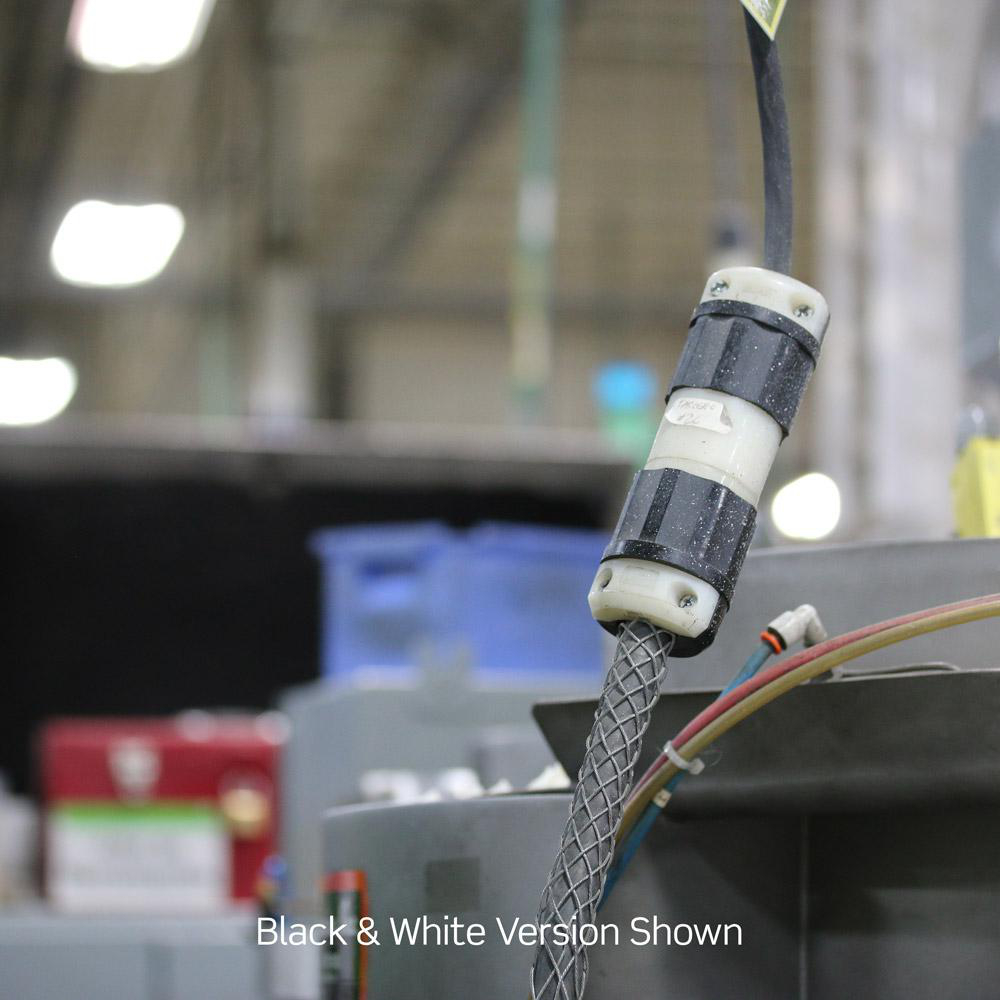

Black & White

General Product Info

12-Digit UPC
078477808511
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477808511

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
