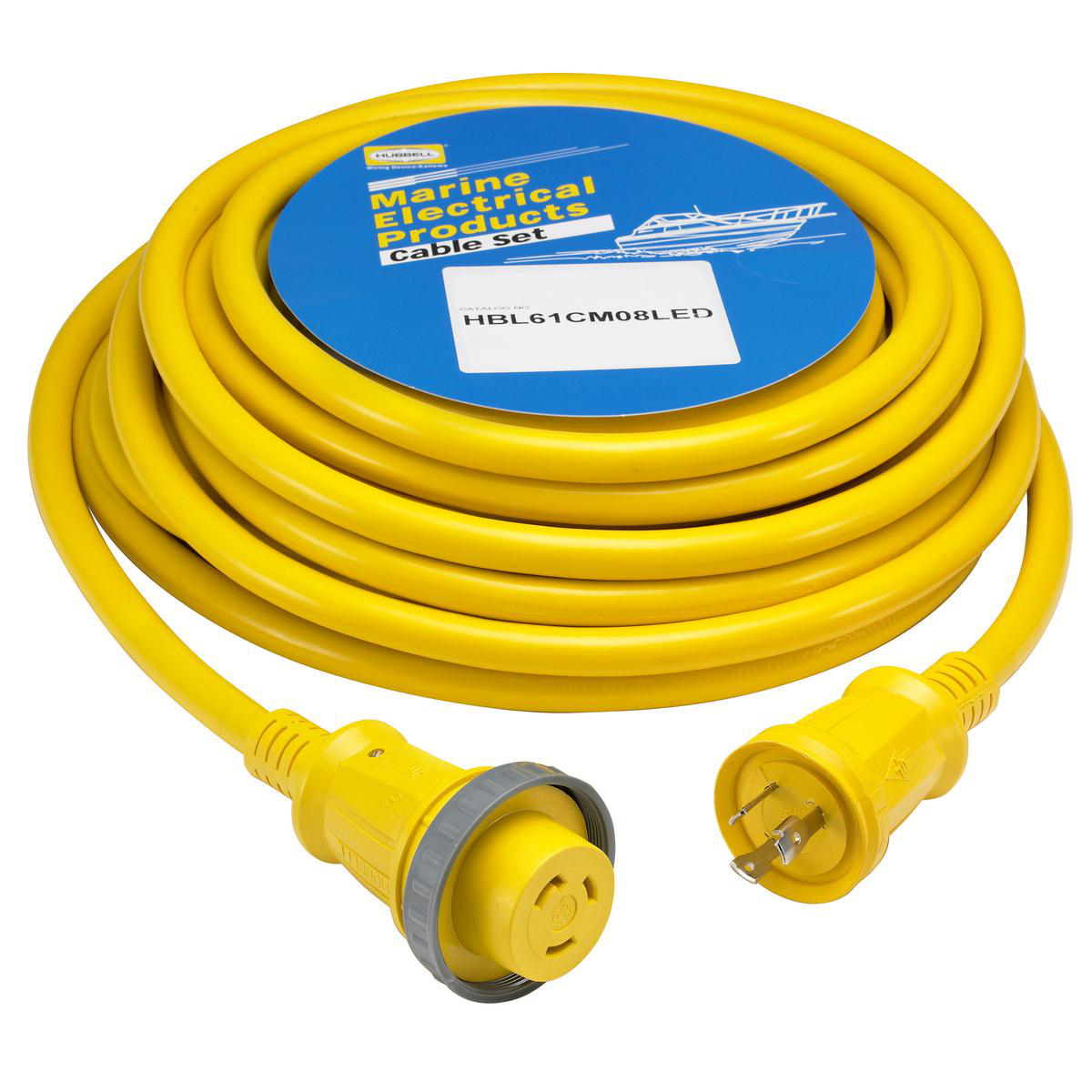

Set cable marine LED power-on indicator 30A 125V yellow 50'

Manufacturer: Hubbell Wiring Devices | Catalog # HBL61CM08LED | Electrozad South Part # 292199
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Manufacturer Warranty

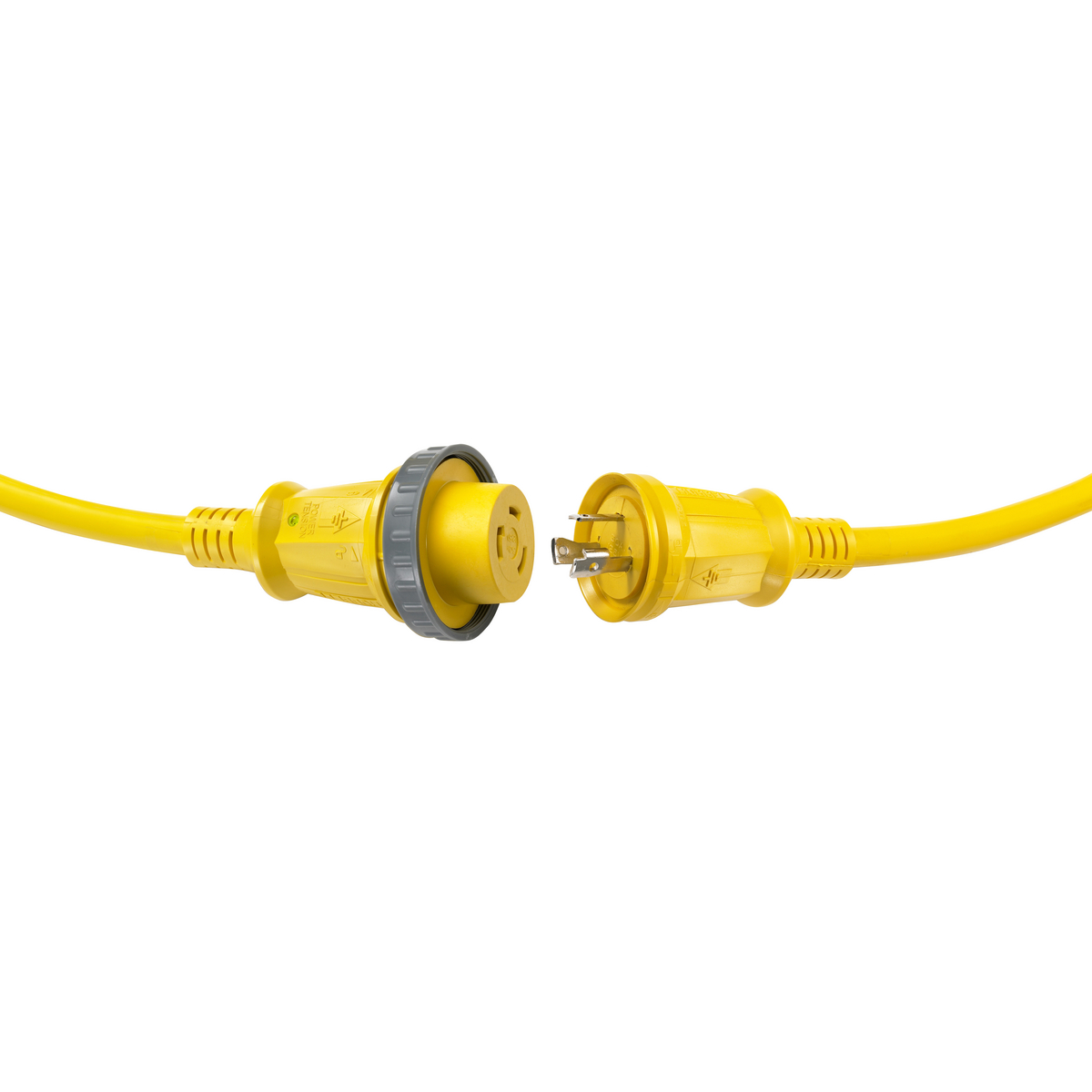

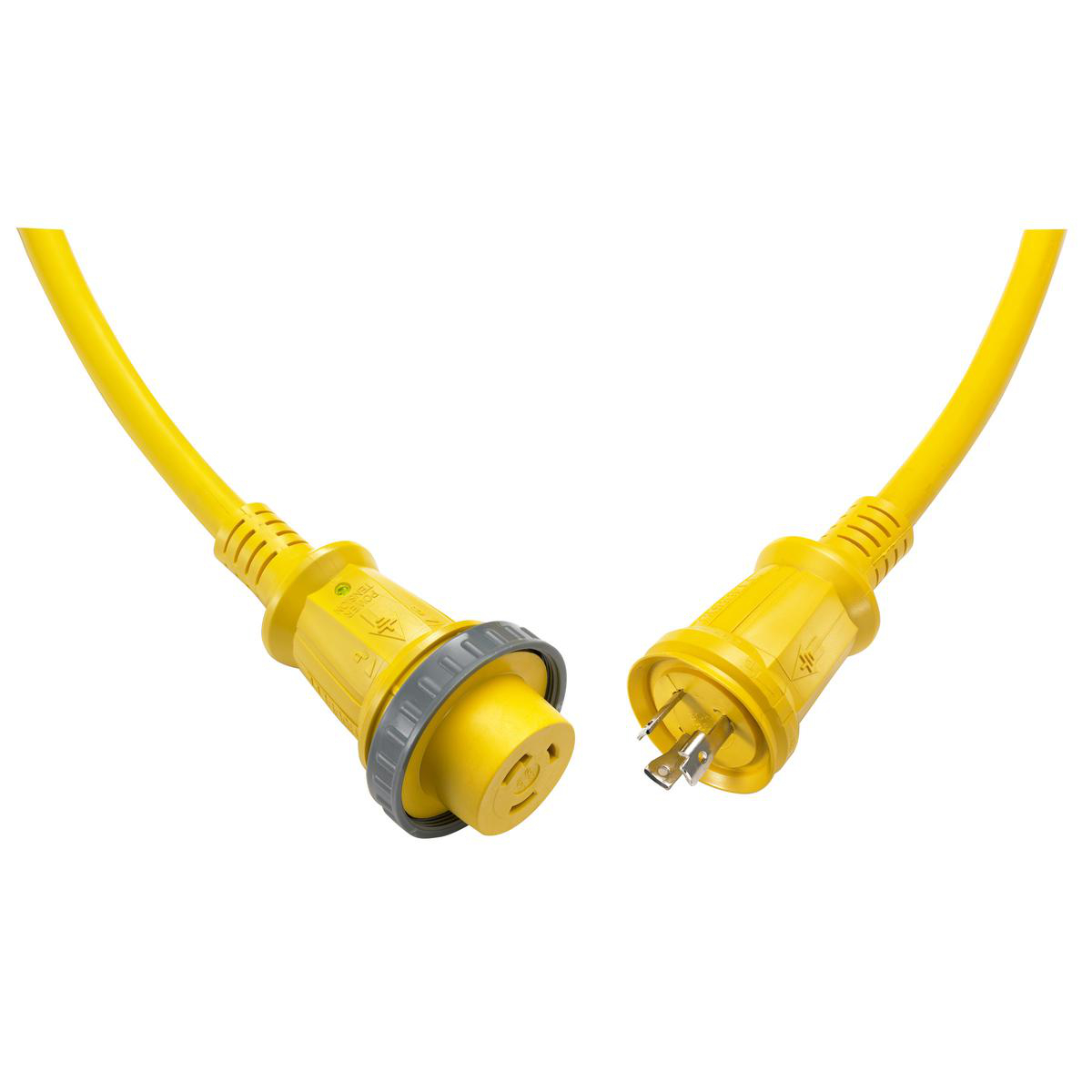

Marine cord with LED's. Vinyl jacketed shore power cable set. No.10 AWG is factory pre-wired with molded-on devices. Connector end has non-metallic threaded sealing ring which makes inlet/connector interface watertight. Bright, durable, LED (green) indicates power-on. High intensity LED is visible even in bright sunlight. Totally molded design for superior waterproofing and durability. Exclusive copper crimp barrel terminations for tighter connections and longer life.

Technical Information

Amperage
30 A
Applications
Ship-To-Shore Cables
Conductor Material
Copper
Cord Length
50' Length
Current
30 A
Material
Copper
Number of Phases
1
Standard
UL
Type
1-Phase, LED Indicator
Voltage
125 V
Wattage
3750 W

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Marine Ship to Shore Cables

General Product Info

12-Digit UPC
783585310824
Color
Yellow
Environmental Conditions
Indoor and Outdoor
GTIN
00783585310824
Jacket Material
PVC
Product UPC
78358531082

Dimensions

Height
4 in
Length
50 ft
Outside Diameter
0.335 in
Width
14.000 in

Certifications & Compliance

Country of Origin
USA
Overview
  • High intensity LED is visible-even in bright sunlight
  • Bright, durable, LED (green) indicates power-on
  • New quick connect with backwards compatibility
  • Totally molded design for superior waterproofing and durability
