GXP1828RF

Manufacturer: Burndy | Catalog # GXP1828RF | Electrozad South Part # 292000
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

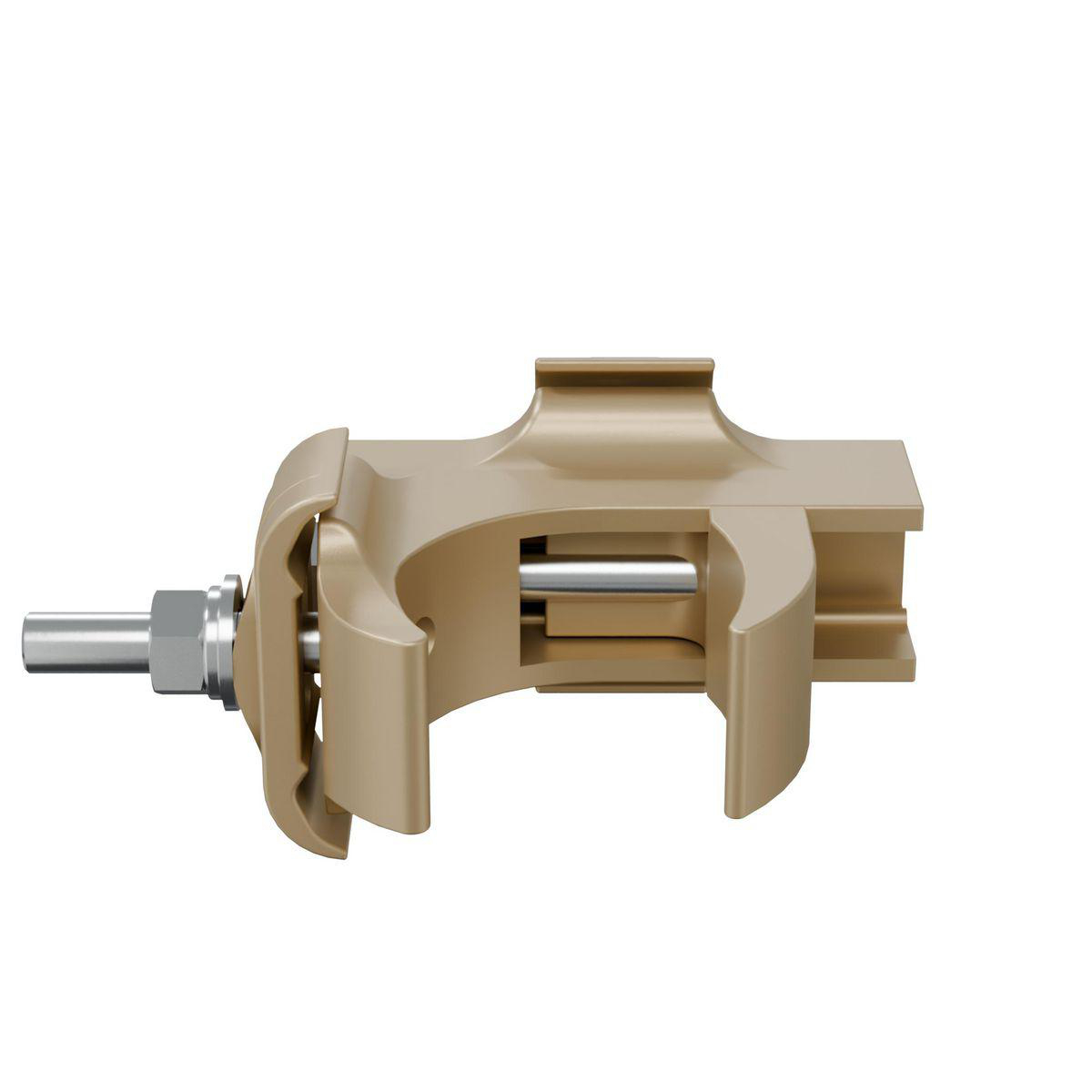

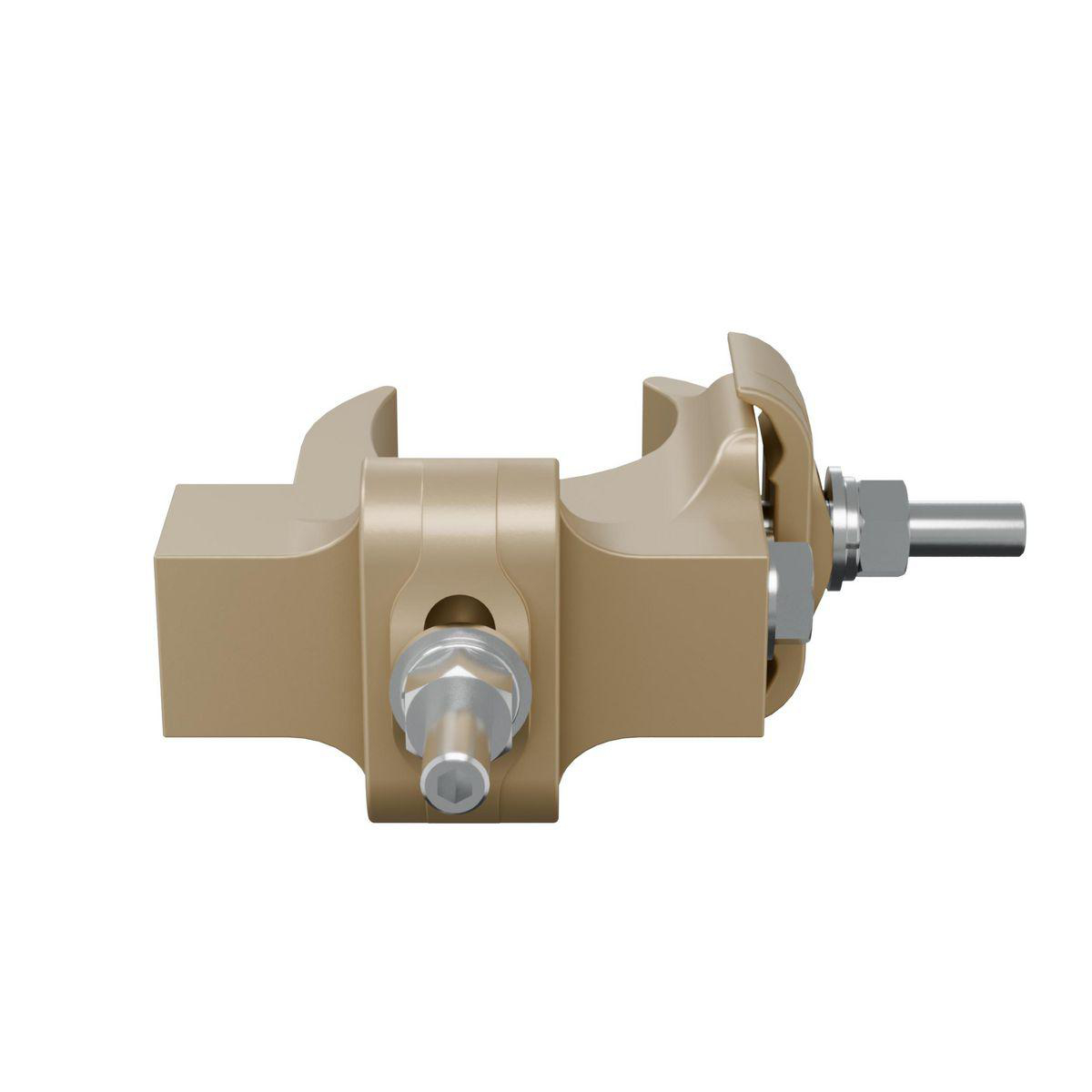

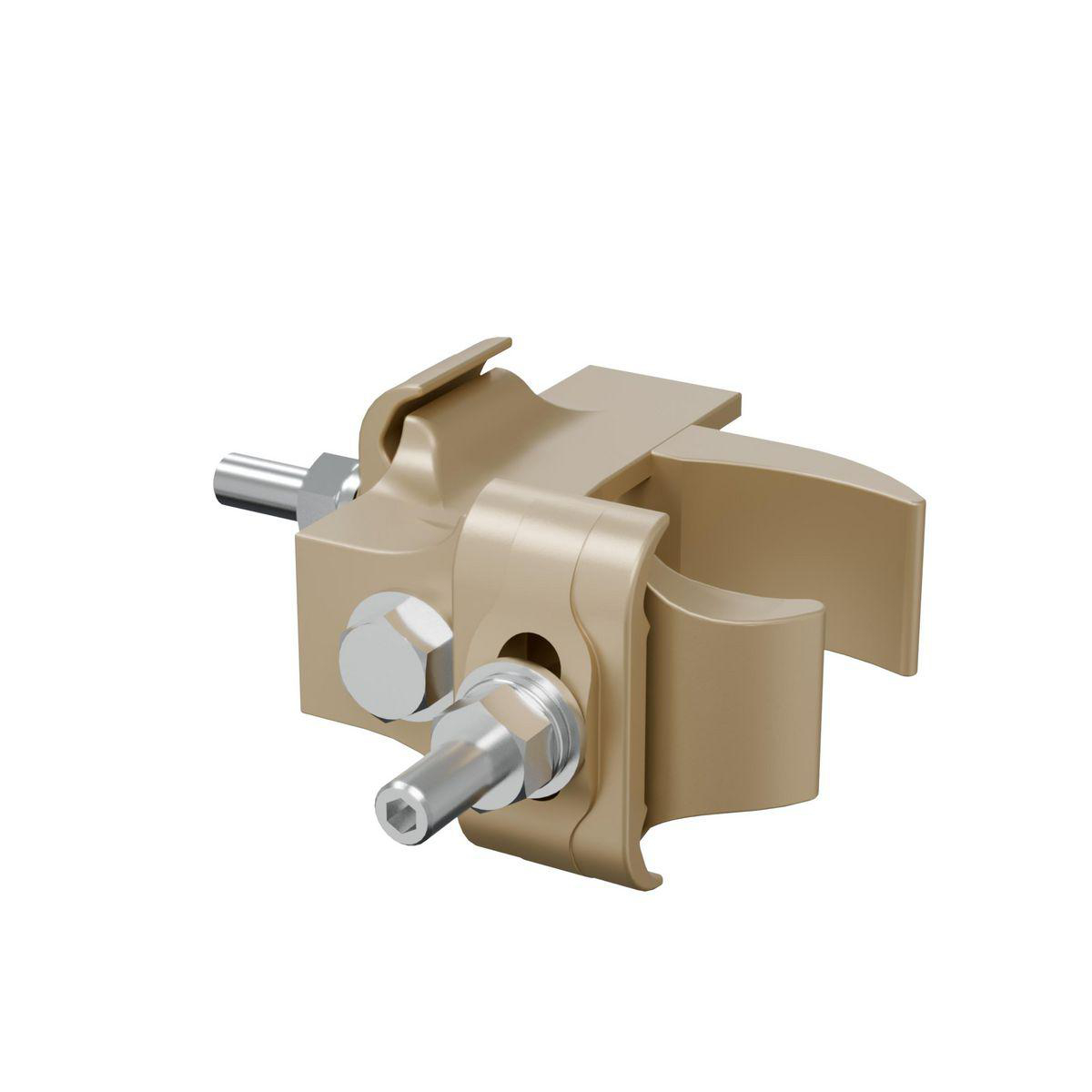

Cast Copper Alloy Raised Floor Ground Connector, #6 Sol.-4/0 Str. , 4.53 in L, 3.94 in W.

Technical Information

Applications
Used on applications which requiring multiple conductor sizes and/or configurations.
Bolt Size
5/16 IN
Material
Copper Alloy
Plated?
No
Plating Type
Unplated
Type
GXP1828RF

Manufacturer Information

Brand
Hubbell
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810503133
GTIN
00781810503133
Product UPC
78181050313

Dimensions

Height
1.96 in
Length
4.53 in
Overall Length
4.53 in
Width
4.300 in

Certifications & Compliance

Country of Origin
Mexico
CSA
No
Overview
  • One socket size (1/2\" socket) fits all hardware
  • Accepts one or two wires in any configuration
  • UL467 Listed for the US and Canadian Markets
  • Can be used for rebar sizes ranging from #7 to #12 size (7/8\" to 1-1/2\" dia)
  • Accepts a wide range of wire sizes, #6 Sol to 4/0 Str
  • Fits a wide range of raised floor pedestals/fence posts from 3/4\" to 2\" (7/8\"-2\" Round, 3/4\" - 1-1/2\" Square)
  • Easy to install open design eliminates the need to disassemble before installing
  • Made of high copper alloy with stainless steel hardware
  • Accommodates parallel wires or cross grid arrangements, wires can be installed in cross grid configuration
