YC4L12

Manufacturer: Burndy | Catalog # YC4L12 | Electrozad South Part # 291900
$5.14 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 4 to 6 days
Specification Sheet Product Brochure Technical Drawing

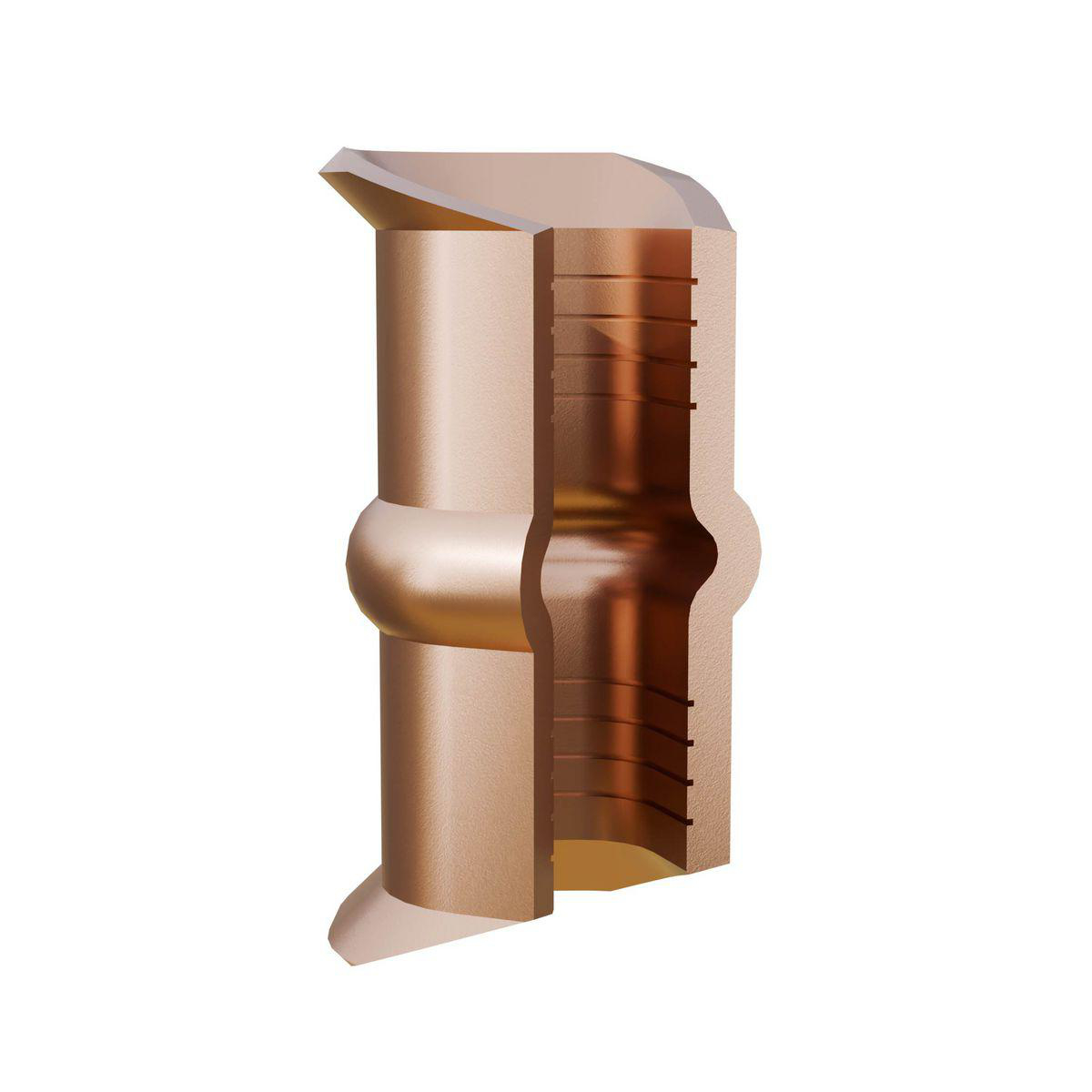

Copper Compression C Tap, Thin Wall, 6 AWG (Run), 6-8 AWG (Tap).

Technical Information

Applications
For Making Copper Tap And Parallel Connections
Color Coding
Brown
Conductor Material
COPPER
Conductor Size
4, 6, 5 AWG Run
Connection Type
C-TAP
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Bright
Size
1.18 IN Length X 072 IN Thickness X 0.38 IN Dimension B X 0.28 IN Dimension C
Tap Size
12, 10, 8, 6 AWG
Temperature Rating
194
Type
YC-L Series

Manufacturer Information

Brand
Hubbell
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810040133
Finish
Tin-Plated,Tin-Plated
GTIN
00781810040133
Product UPC
78181004013

Dimensions

Height
0.39 in
Length
1.18 in
Width
0.39 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
Overview

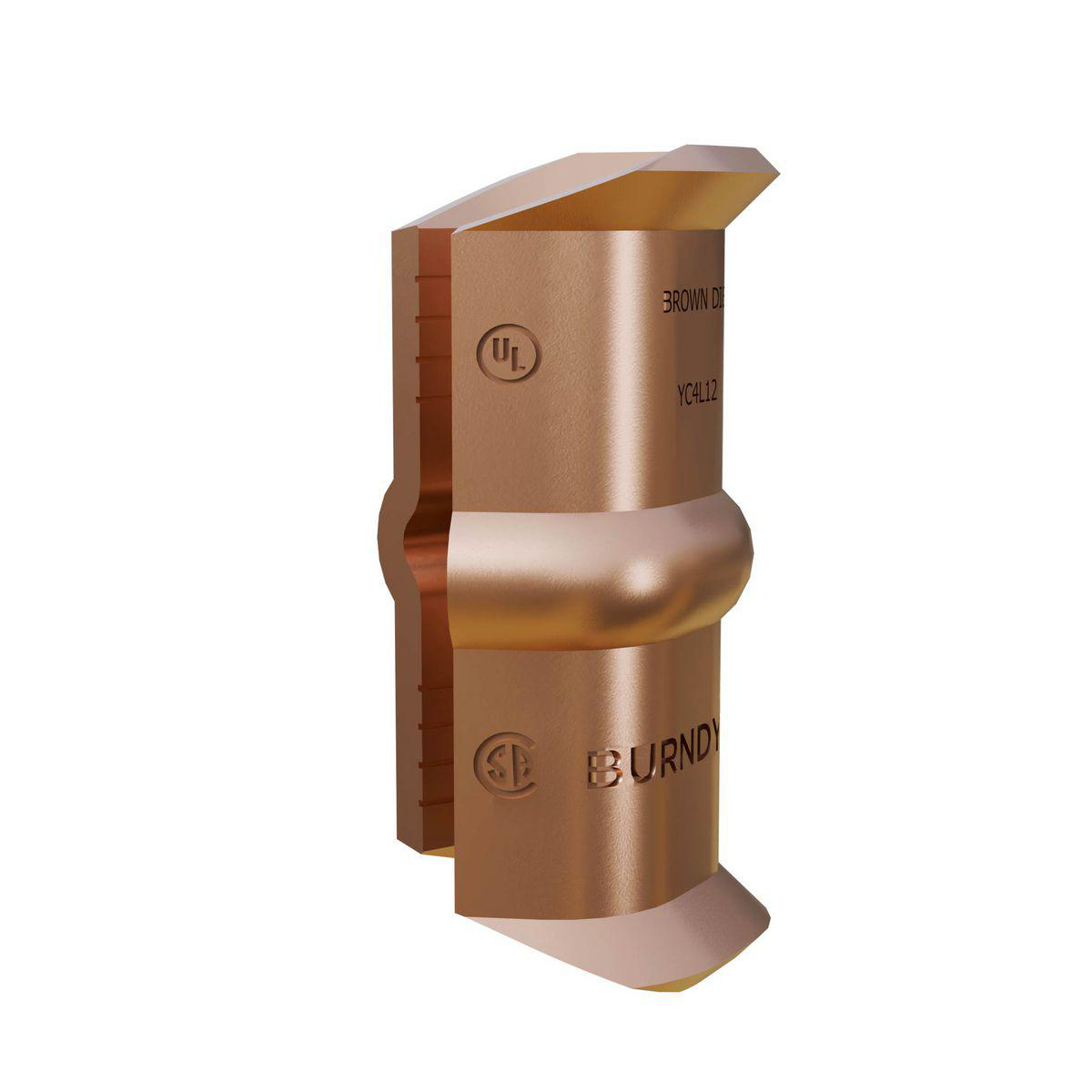

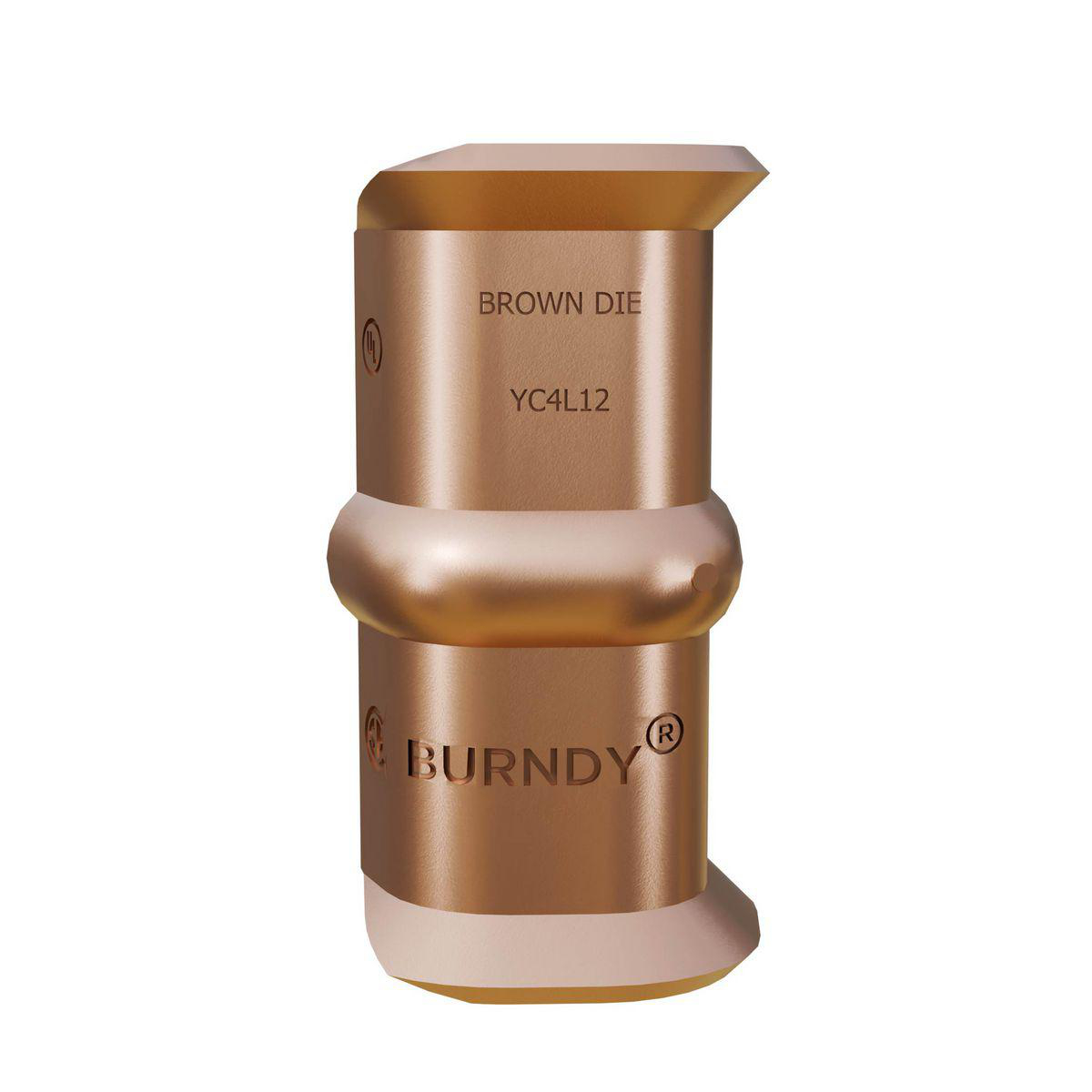

  • Connectors are clearly marked with color code dot, UL and CSA (when applicable), wire size, and die index number
  • Reinforced ribs on the outside of the connector increase the mechanical strength of the connection
  • Bare copper range taking connector allows for less inventory
  • Material is high conductivity wrought copper providing low resistance for excellent electrical conductivity
  • Creates a compact connection that is easy for taping and insulating
