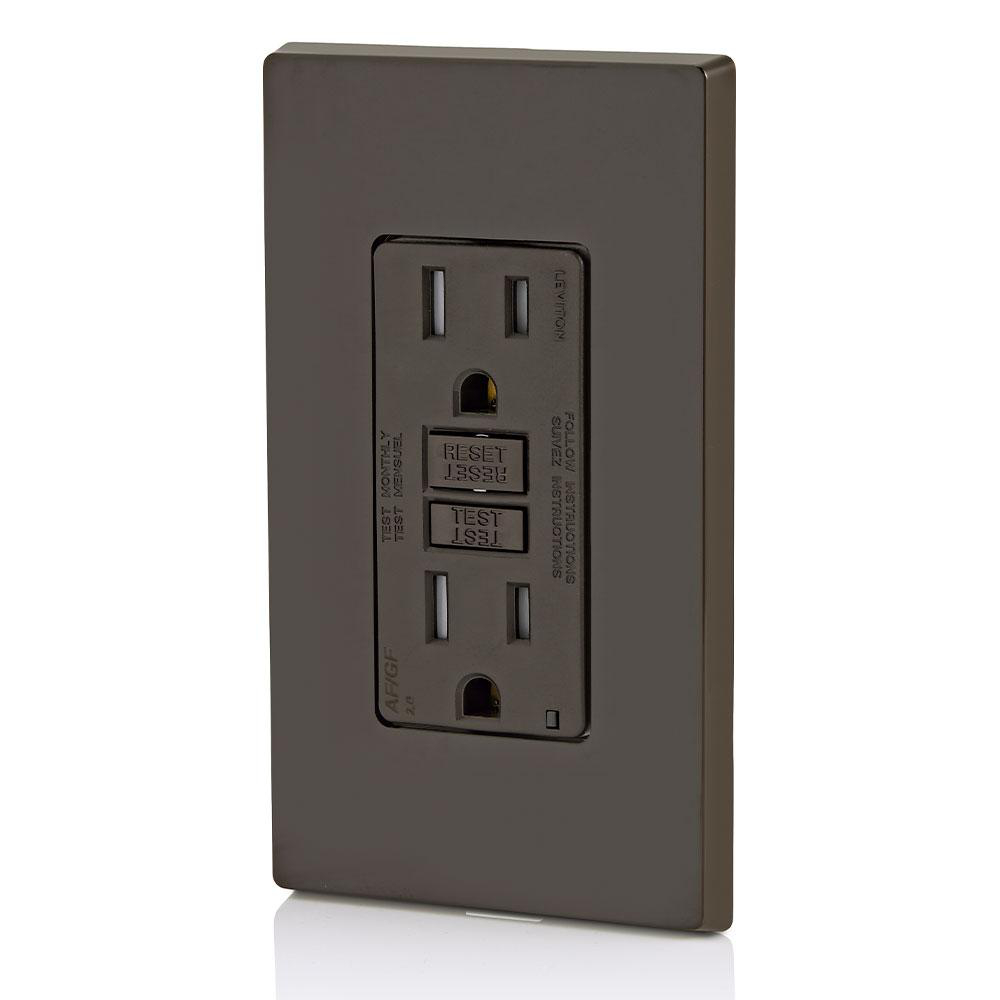

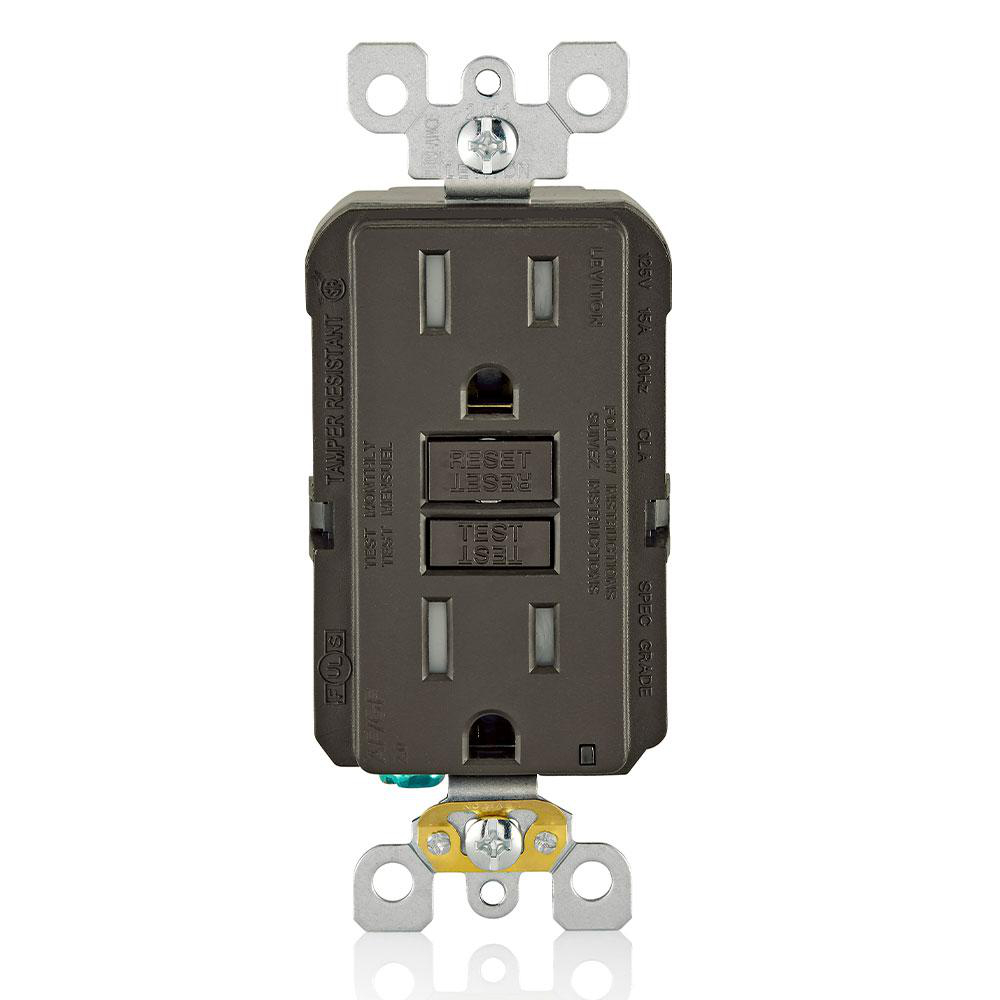

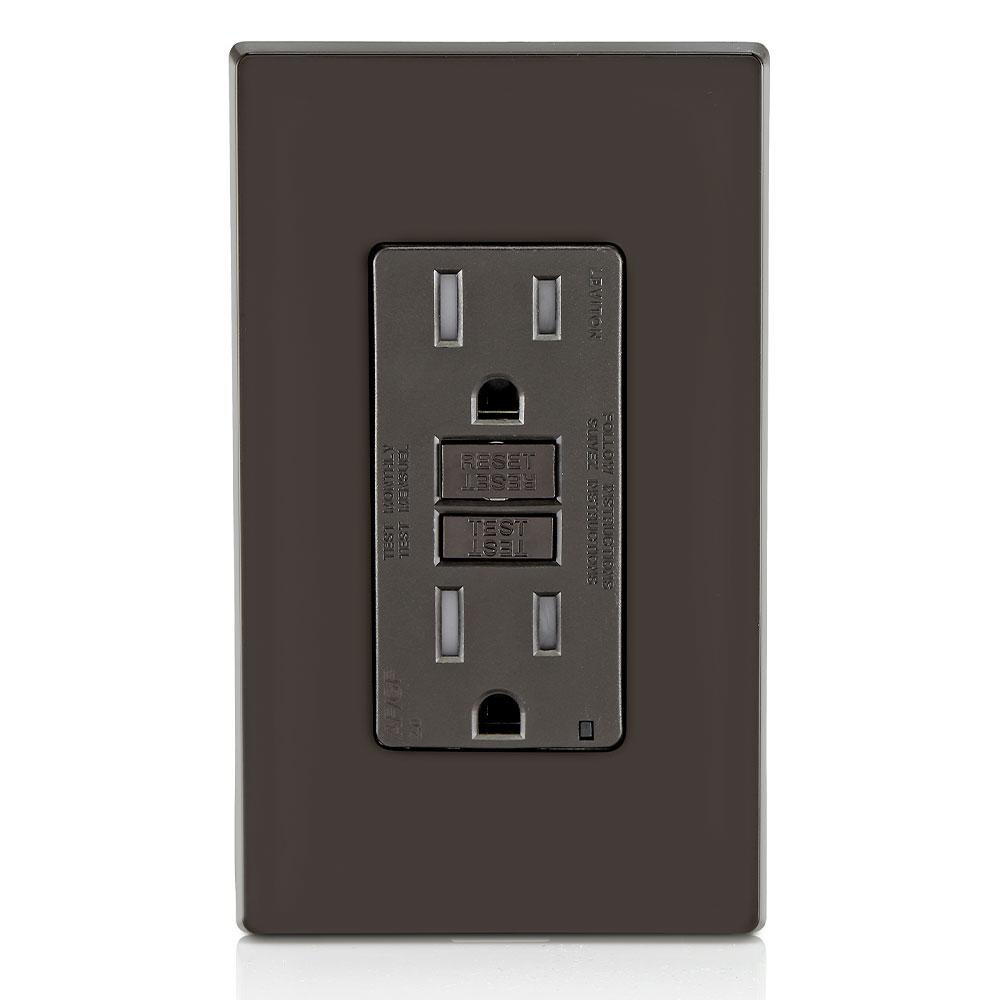

Product image for Receptacle dual function AFCI/GFCI 125V 15A brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
To:
CC:

Receptacle dual function AFCI/GFCI 125V 15A brown

Manufacturer: Leviton Manufacturing | Catalog # AGTR1 | Electrozad South Part # 291511
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
The SmartlockPro AFCI/GFCI Receptacle offers an effective alternative to a Dual Function breaker and features the convenience of localized test and reset. It provides clear visual indication of status making it intuitive for users to assess various conditions such as power availability and GFCI self-test status. The device also distinguishes between a trip caused by a ground fault and a trip caused by an arc fault.

Technical Information

Amperage
15 A
Body Material
Polycarbonate,Polycarbonate
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Dielectric Strength
1250 VAC
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grounding
Self
Horsepower
1 hp
Material
Polycarbonate
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Rated Insulation Voltage
1250 V
Standard
ANSI C-73,CSA,CSA,UL,UL
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Self-Test, Tamper-Resistant
Voltage
125 V
Wire Count
3,3
Wire Type
Grounding

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477744451
Color
Brown
Environmental Conditions
UL 94 V-2 Flammability
GTIN
00078477744451

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
