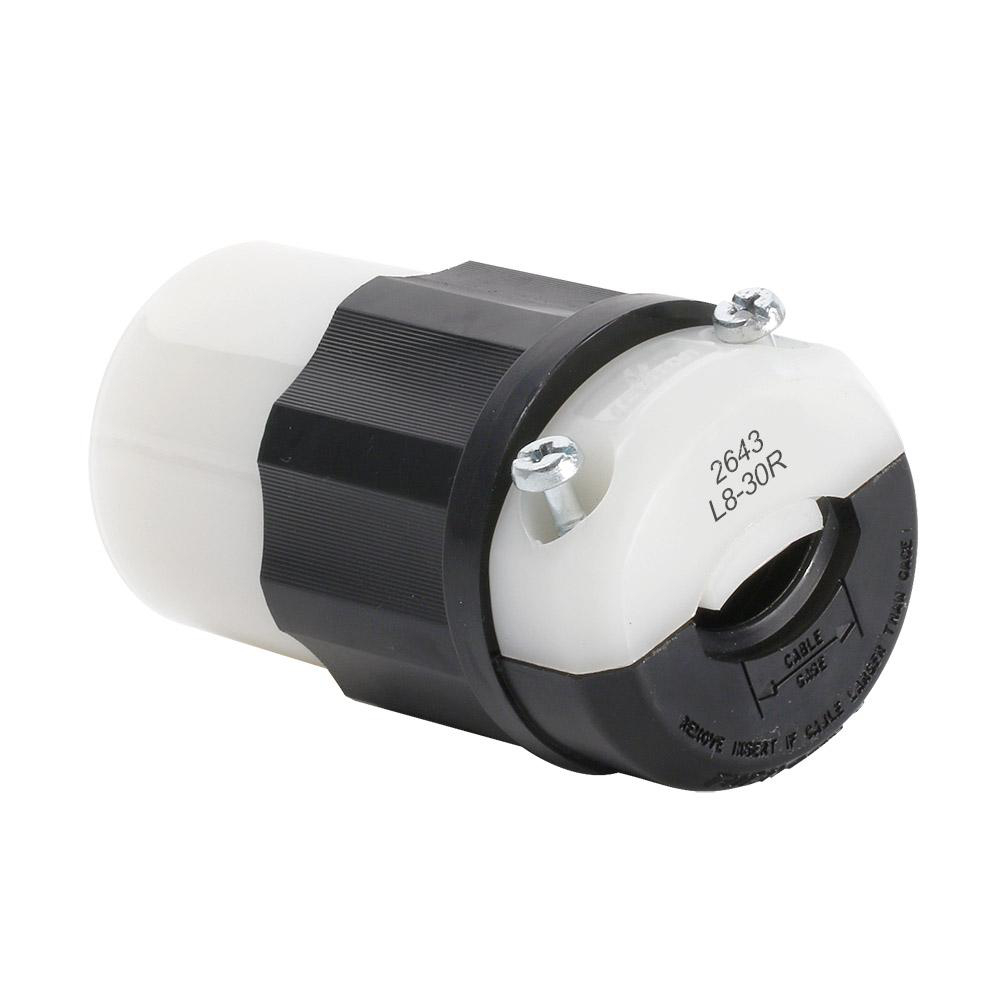

Locking Connector, 30 Amp, 480 Volt, Industrial Grade, Black & White

Manufacturer: Leviton Manufacturing | Catalog # 2643 | Electrozad South Part # 291459
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet Technical Drawing

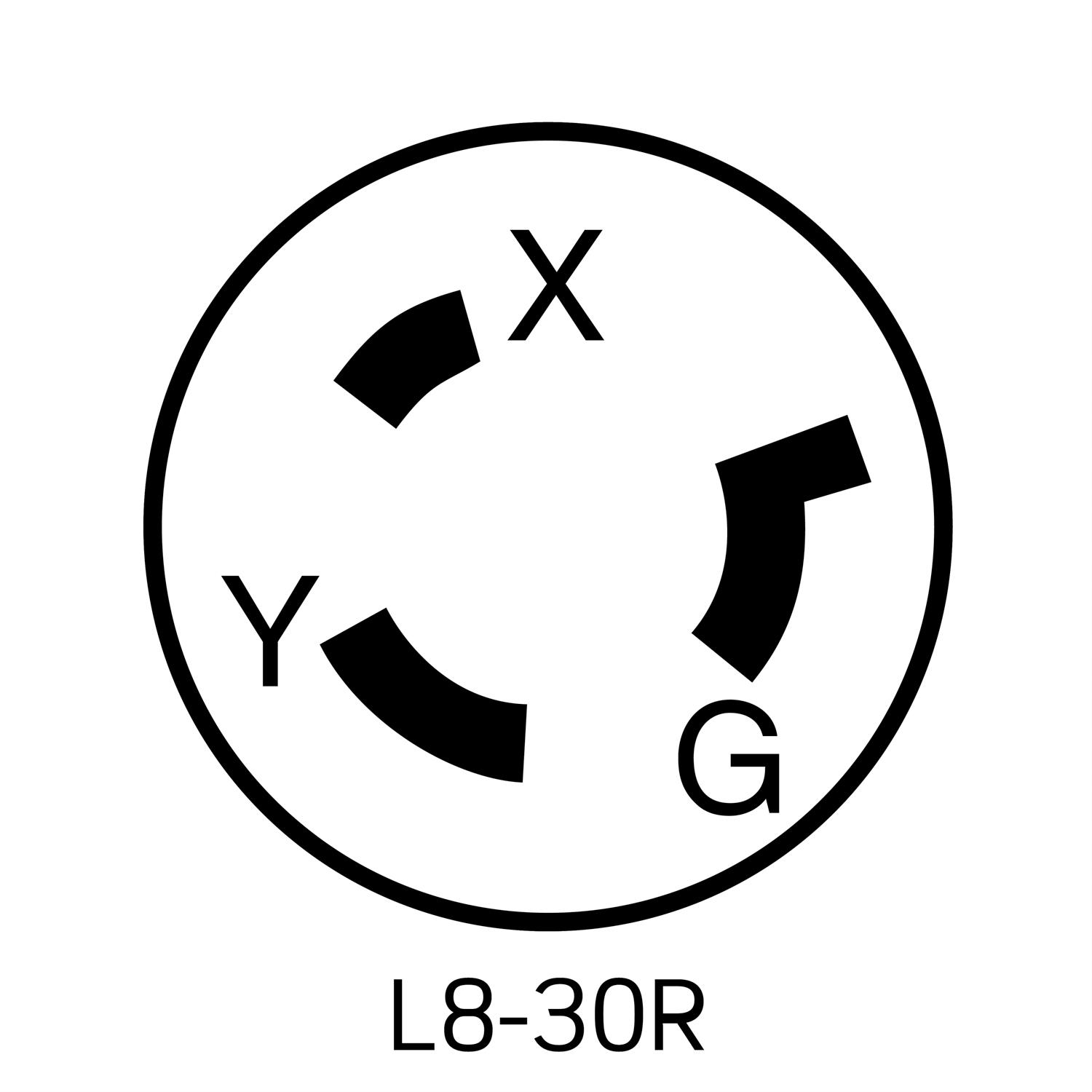

30 Amp, 480 Volt, NEMA L8-30R, 2P, 3W, Locking Connector, Industrial Grade, Grounding - BLACK-WHITE

Technical Information

Amperage
30 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Contact Material
Solid Brass
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
5 hp
Material
Super Tough Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Dia x 2.47 H IN
Standard
ANSI C-73
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Connector
Voltage
480 V
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477807804
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477807804

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
