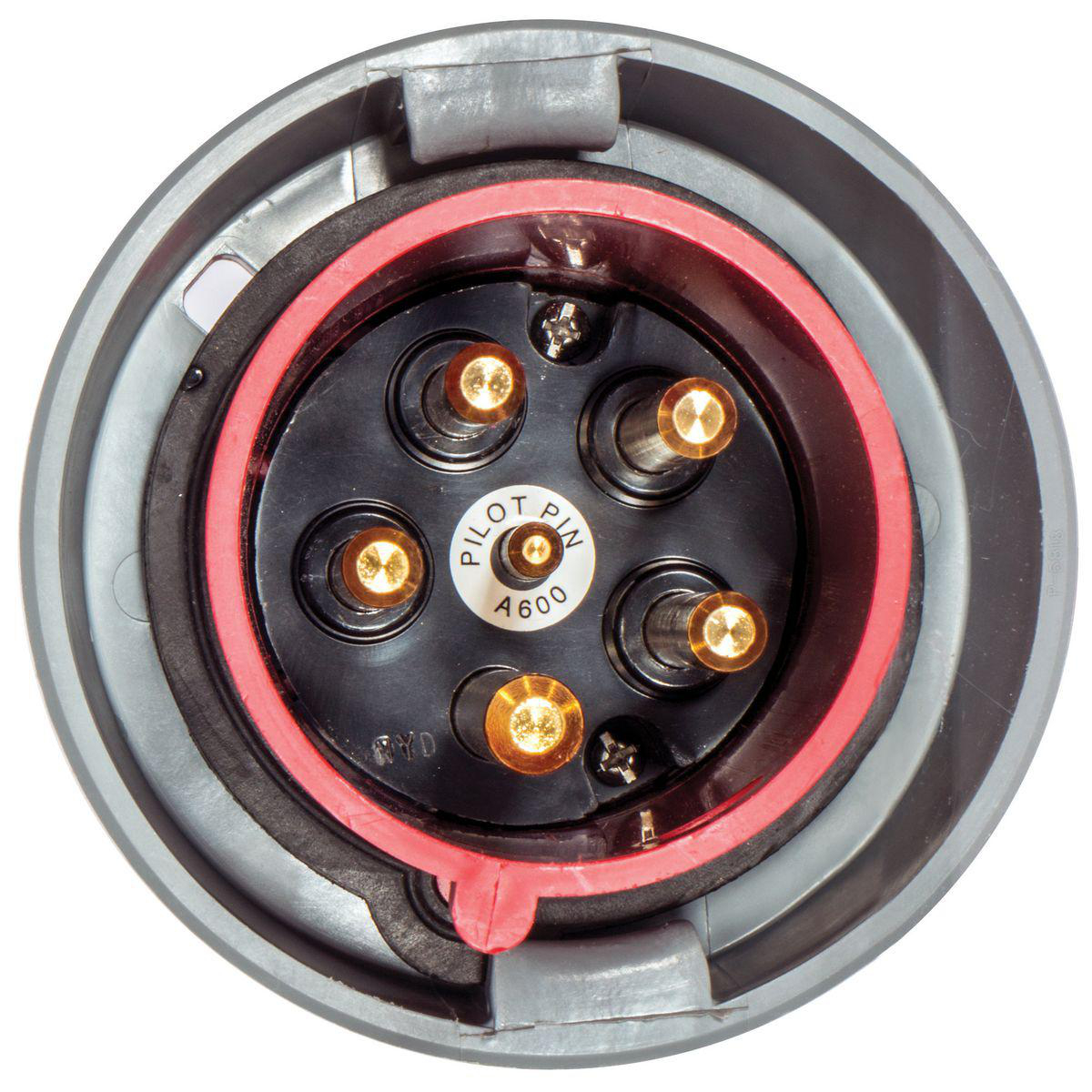

Mating plug 3 pole 4 wire 480V 60A 30HP 4X/IP69k

Manufacturer: Hubbell Wiring Devices | Catalog # HBLS460P7W | Electrozad South Part # 291452
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbell Wiring Device-Kellems Advantage™ Series Pin and Sleeve Switch-Rated Devices are IEC 60309-2 compatible devices that are approved as a disconnecting means for motor and branch circuits. Compact design, this device is similar in size to standard IEC 60309-2 devices. Robust and durable housing, UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Stainless steel hardware provides superior corrosion resistance in wet and harsh environments Receptacles mount to standard Hubbell IEC Pin and Sleeve back boxes.

Technical Information

Amperage
60 A
Current
60 A
Number of Poles
3
Number of Wires
4
Style
IP69k NEMA 4X
Type
Clamshell Packaging
Voltage
480 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585479040
Color
Amber,Green,Red,White
GTIN
00783585479040
Product UPC
78358547904

Dimensions

Height
5.100 in
Length
11.800 in
Width
5.6 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Unswitched ground and power indicating LED lights
  • UL Type 4X, 12 and IP69k environmental ratings
  • Approved as a diconnecting means for motor circuits and branch circuits
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Impact and corrosion-resistant PBT that is color coded by voltage
