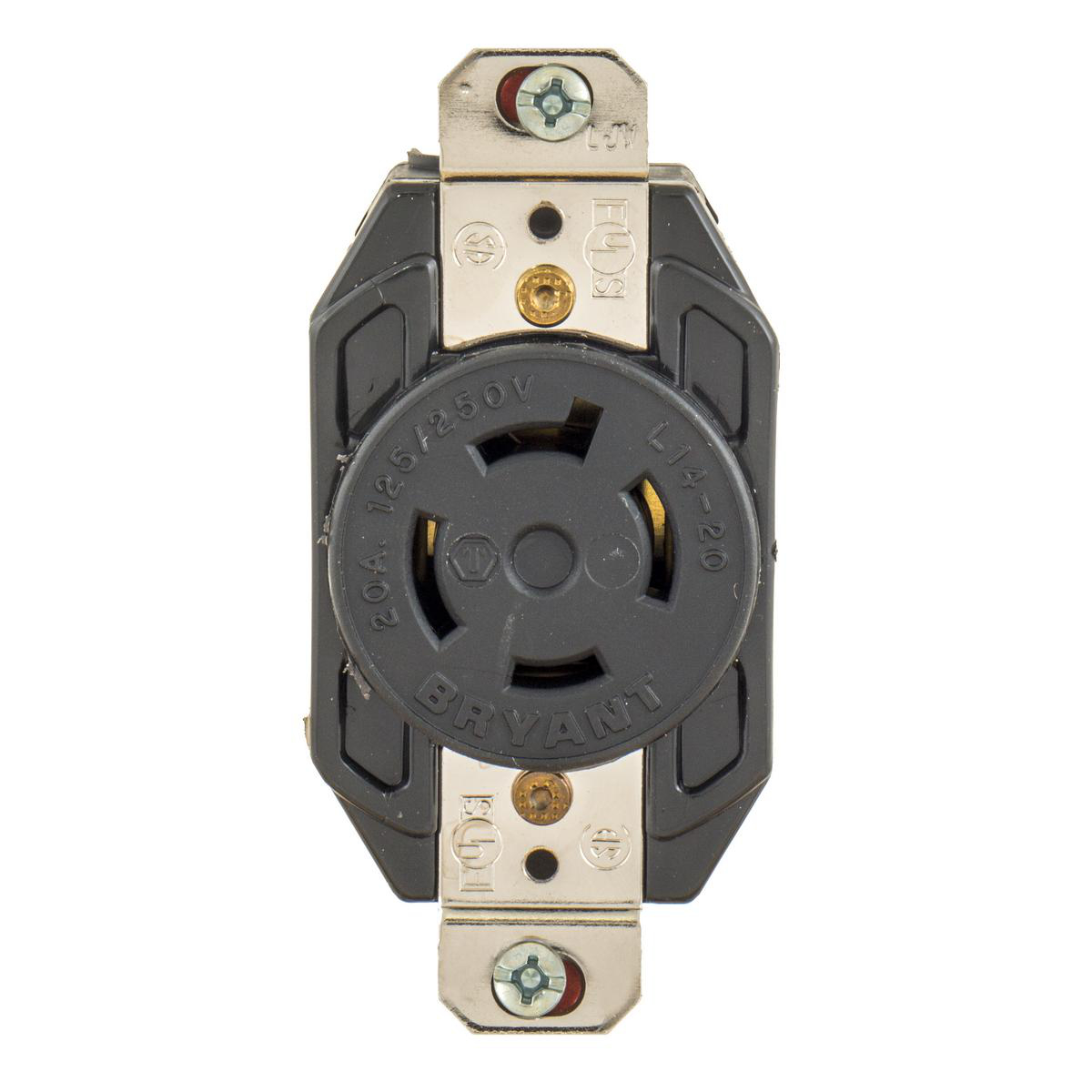

LKG RCPT, 20A 125/250V, L14-20R, BK

Manufacturer: Bryant Wiring Device | Catalog # 71420FR | Electrozad South Part # 291344
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Locking Devices, Industrial, Flush Nylon Receptacle, 20A 125/250V AC, 3-Pole 4-Wire Grounding, L14-20R, Screw Terminal, Black/White

Technical Information

Amperage
20 A
Applications
Extra Heavy Duty Industrial Specification Grade
Current
20 A
Material
Composite
NEMA
L14-20R
Number of Phases
1
Number of Poles
3,3
Number of Wires
4,4
Size
Standard Sized Product
Style
Single Receptacle
TC Connection
Terminal Screws
Type
Single
Voltage
125/250 V
Wattage
5000 W
Wire Size
14-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786695139
Color
Black
GTIN
00781786695139
Product UPC
78178669513

Dimensions

Height
1.14 in
Length
3.28 in
Width
1.70 in

Certifications & Compliance

Country of Origin
USA
Overview
  • NEMA rating and configuration are molded into face for easy identification
  • Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
  • Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
  • One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
