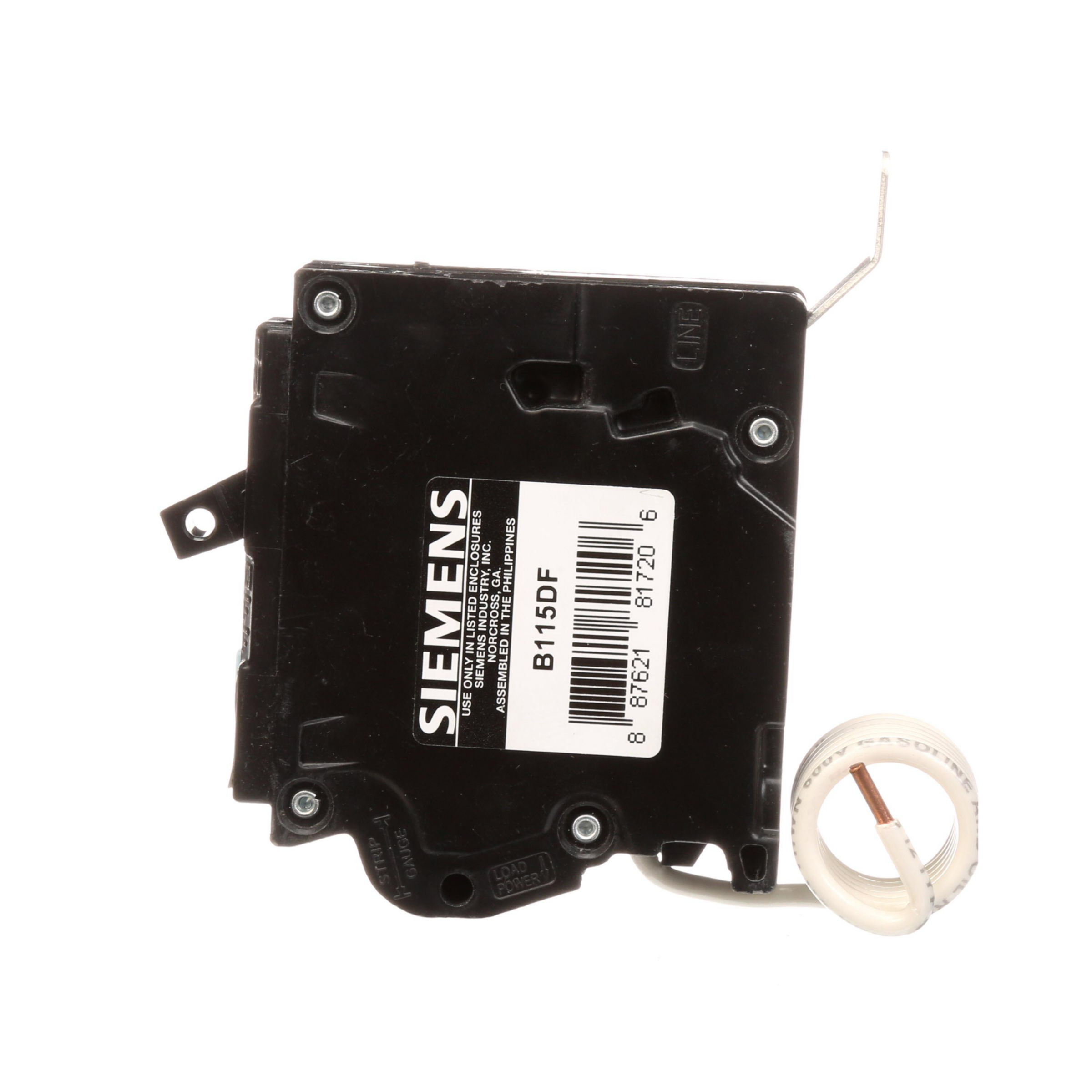

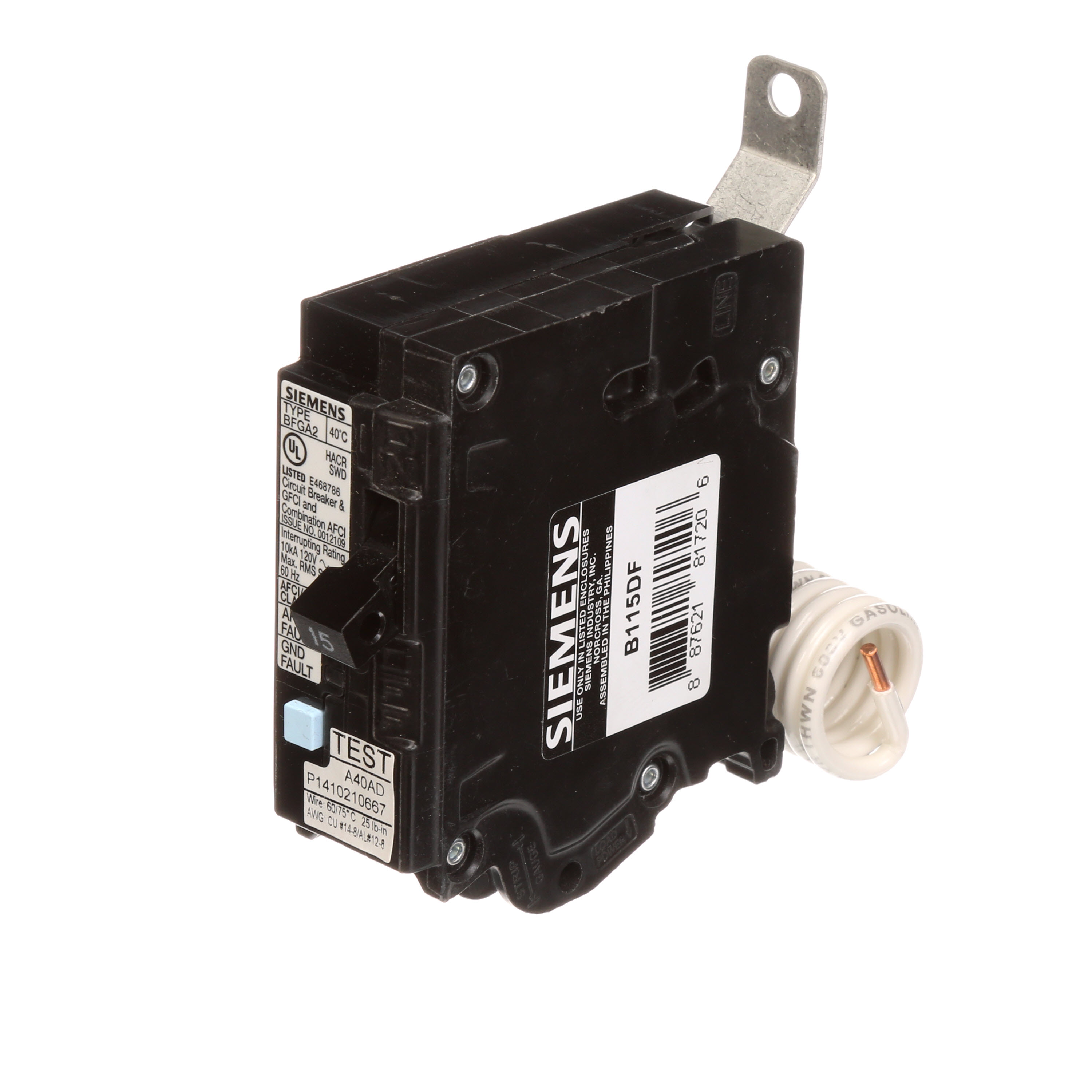

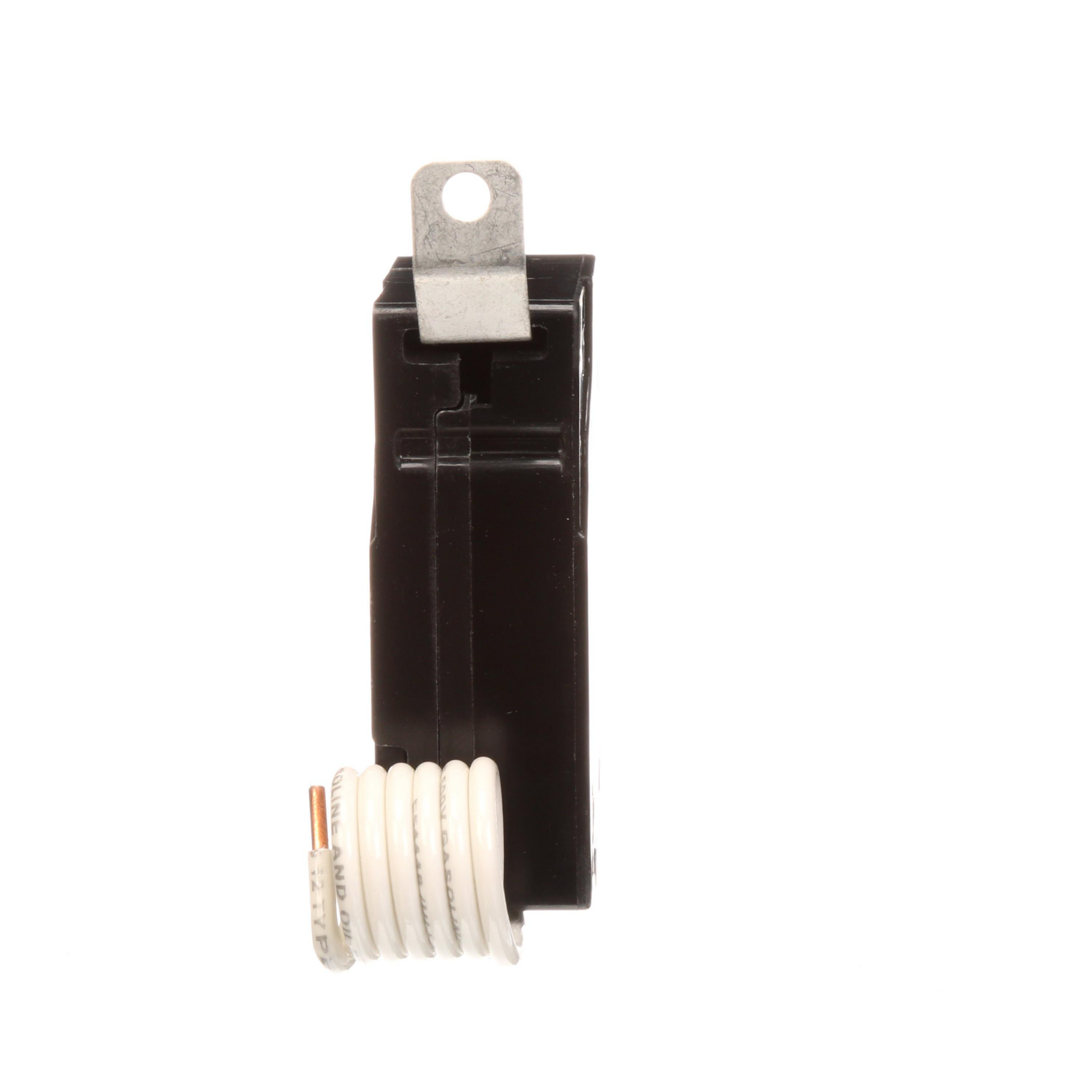

Product image for Circuit breaker molded AFCI/GFCI 1-pole 15A 10kA 120V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Circuit breaker molded AFCI/GFCI 1-pole 15A 10kA 120V

Manufacturer: Siemens Distribution | Catalog # B115DF | Electrozad South Part # 290299
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page G USERS MANUAL URL
Dual function molded case circuit breaker combines type AFCI and GFCI, protecting against both arc faults and 5 mA ground faults. The device includes the self test and lockout feature, making it the first in class in electrical safety for homeowners.

Technical Information

Actuator
Switch Position Knob
Applications
For Electrical Distribution
Enclosure
N/A
Frame
BL
Interrupt Rating
10 kA
Load Rating
N/A
Number of Phases
-99999
Number of Poles
1
Operating Temperature
N/A
TC Connection
BOLT-ON
Trip Range
Thermal Magnetic
Trip Type
Thermal Magnetic
Type
BL

Manufacturer Information

Brand
Siemens
Sub Brand
Circuit Breakers

General Product Info

12-Digit UPC
887621817206
GTIN
00887621817206
Weight
0.250 lb

Dimensions

Height
3.250 in
Length
5.300 in
Width
1.250 in

Certifications & Compliance

Country of Origin
Philippines
