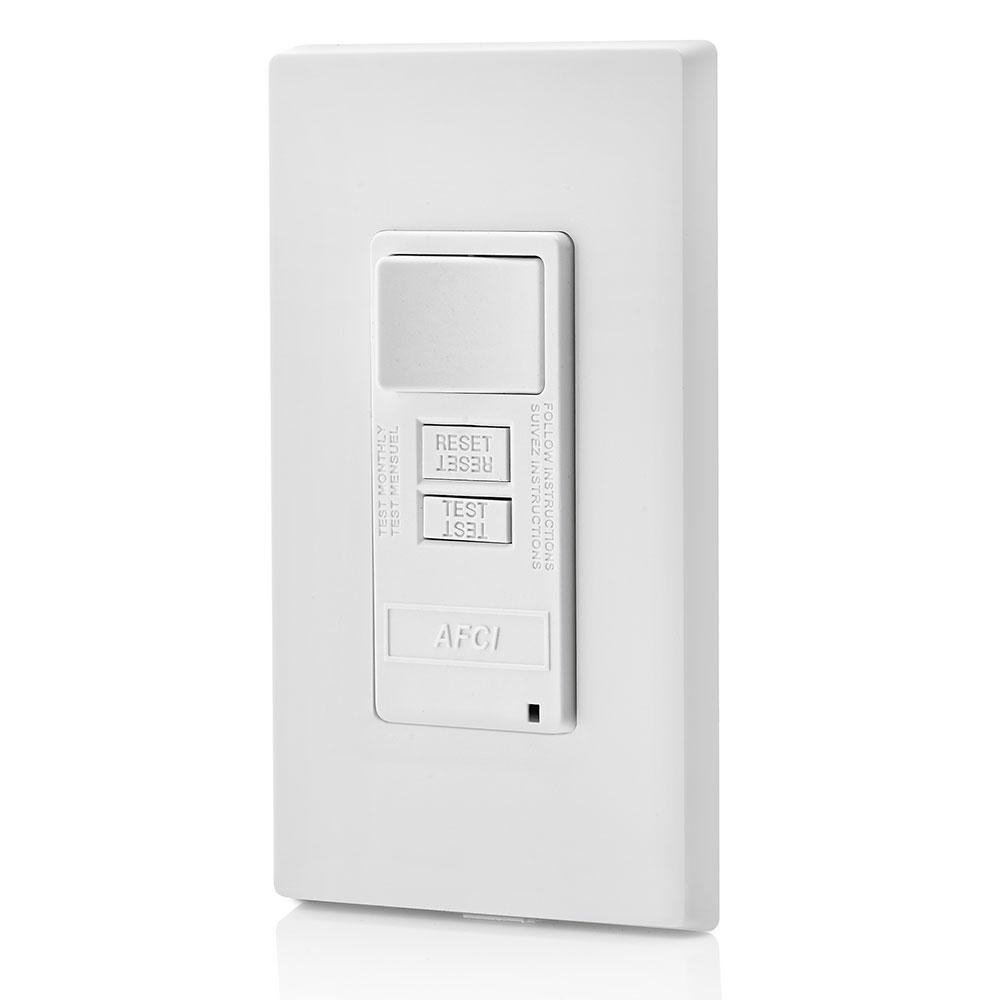

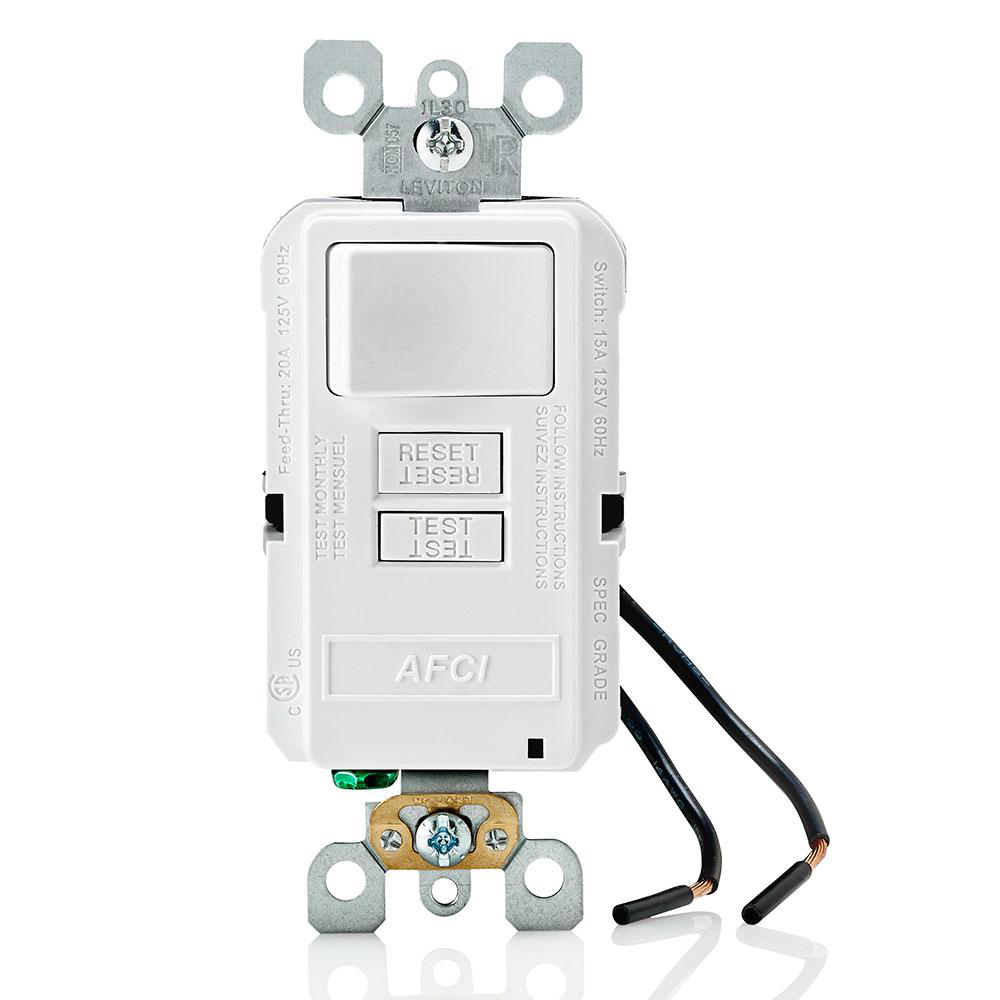

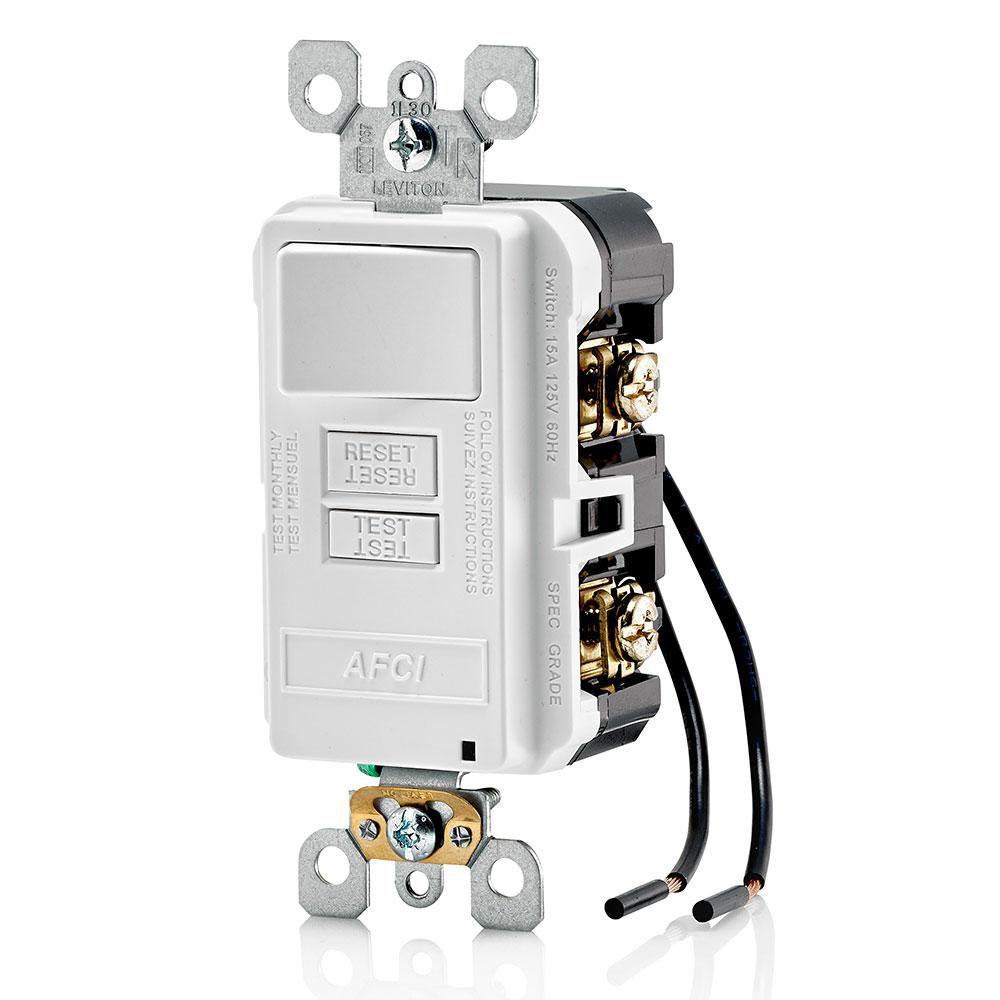

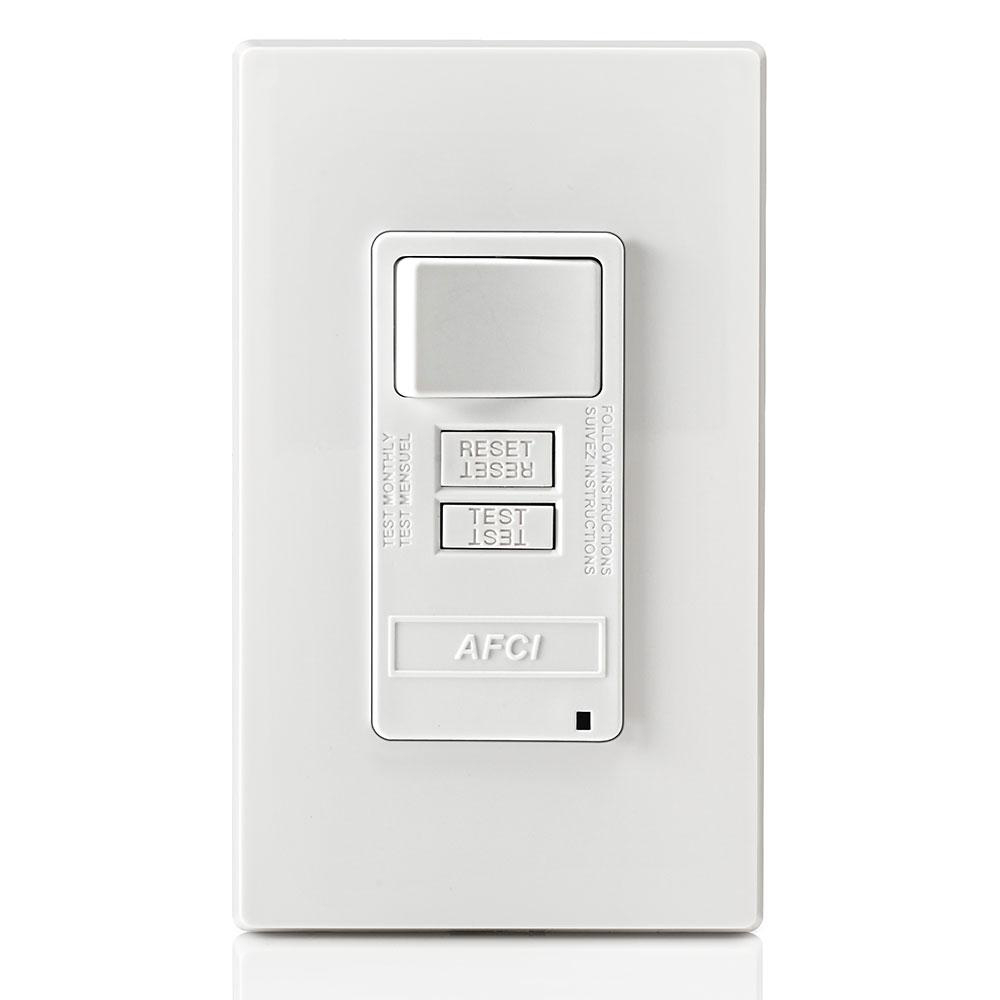

15 Amp, AFCI/Switch Combo with LED Indicator Light

Manufacturer: Leviton Manufacturing | Catalog # AFSW1-W | Electrozad South Part # 289796
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
15 Amp Switch, 20 Amp Feed-Through, 125 Volt OBC AFCI with Switch, Monochromatic, back and side wired, nylon wallplate/faceplate included, self-grounding clip included - White

Technical Information

Amperage
20 A
Applications
For Residential use
Body Material
Polycarbonate,Polycarbonate
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grounding
Self-Grounding
Horsepower
1 hp
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Rated Insulation Voltage
1250 V
Standard
CSA,UL
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Blank Face
Voltage
125 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT GFI RECEPTACLES

General Product Info

12-Digit UPC
078477686508
Color
White
GTIN
00078477686508

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
