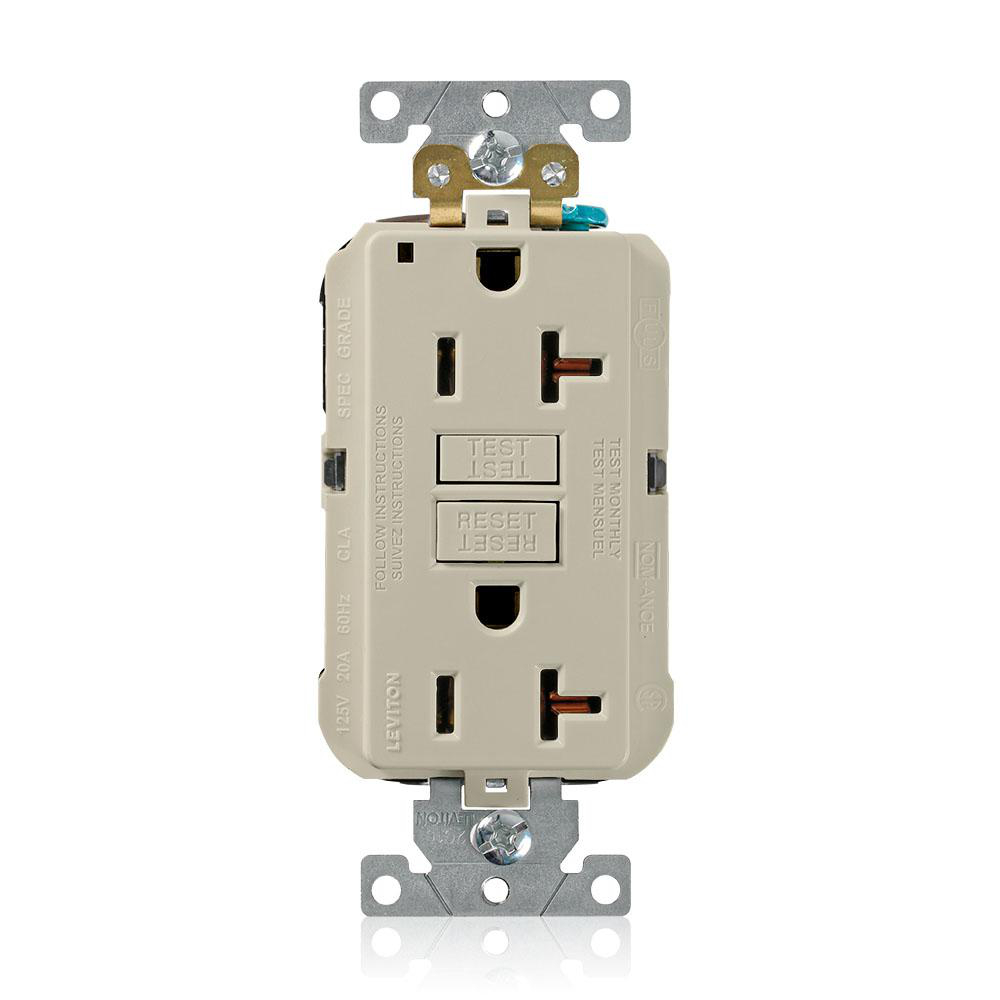

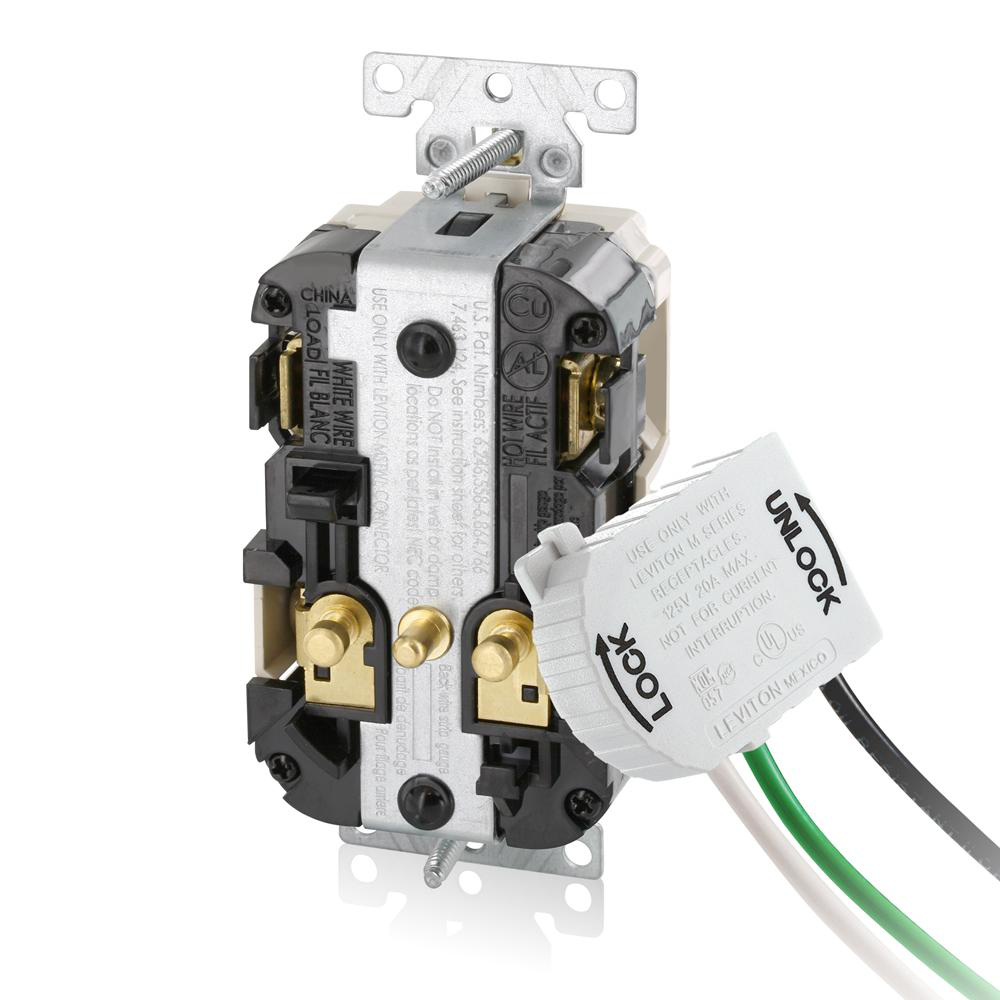

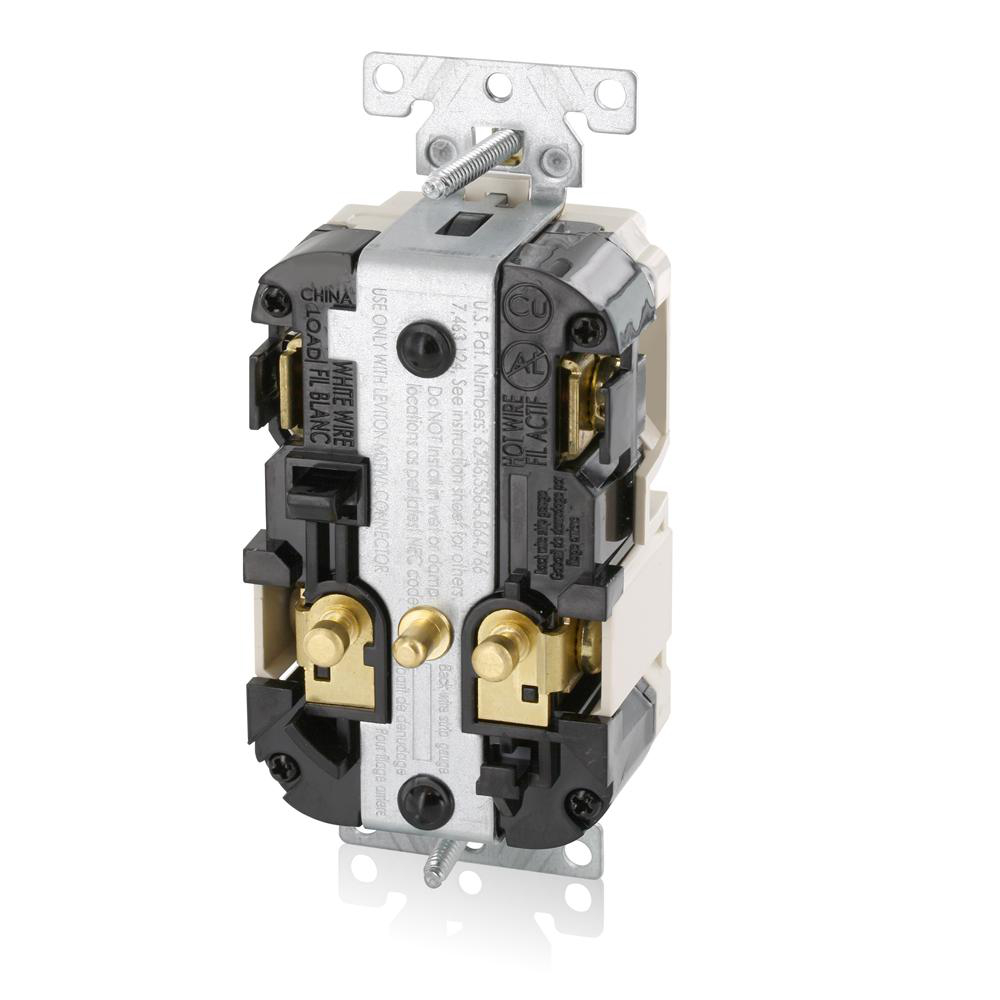

Receptacle GFCI industrial grade 20A 125V ivory

Manufacturer: Leviton Manufacturing | Catalog # MGFN2-I | Electrozad South Part # 289789
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing
Extra-heavy duty industrial grade Lev-Lok® self-test GFCI non-tamper resistant receptacle, NEMA 5-20R. Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Low-profile design is easy to install in all electrical boxes. Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost.

Technical Information

Amperage
20 A
Applications
Extra Heavy Duty Industrial Grade
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Extra Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate/PBT
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Short Circuit Current
2 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 degrees C to 66 degrees C
Termination Type
Back Wire,Modular,Side Wire
Type
Self-Test, Slim
Voltage
125 V
Wattage
1 hp
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477724873
Color
Ivory
Environmental Conditions
UL 94 V-0 Flammability
GTIN
00078477724873

Certifications & Compliance

Country of Origin
China
