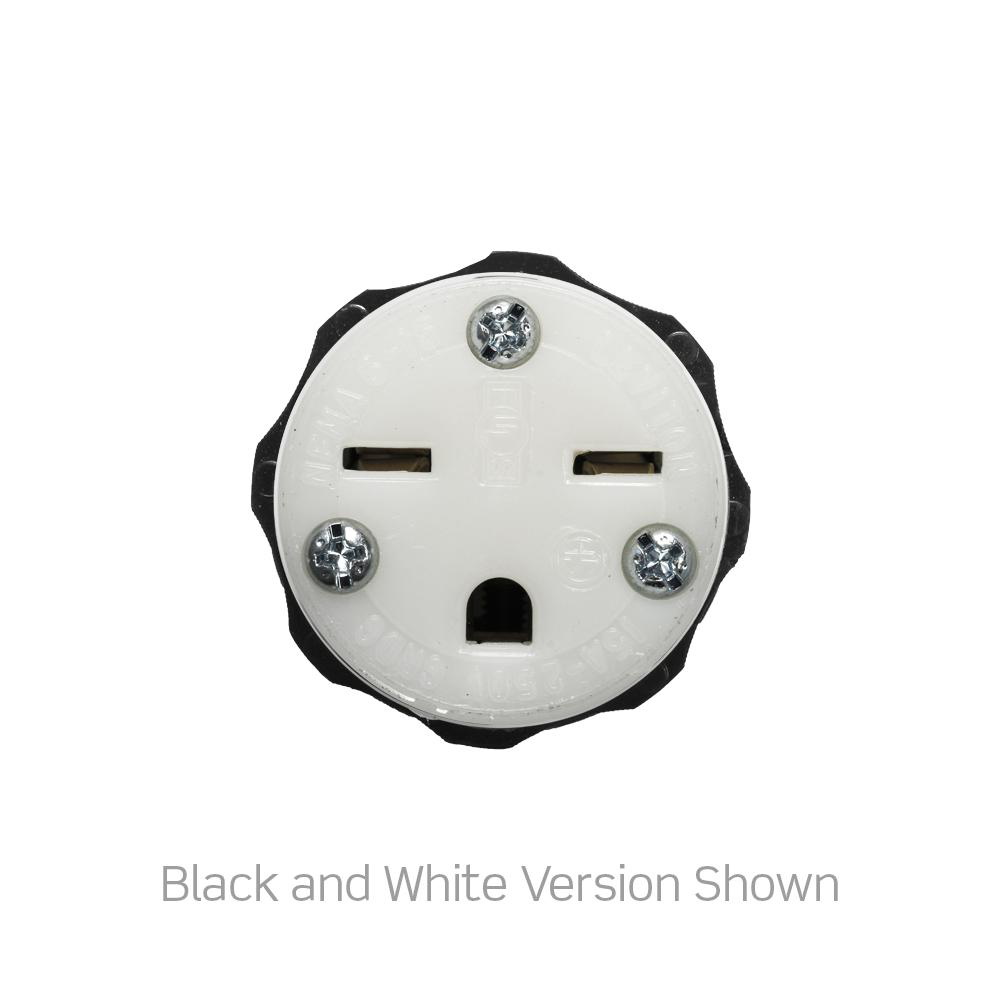

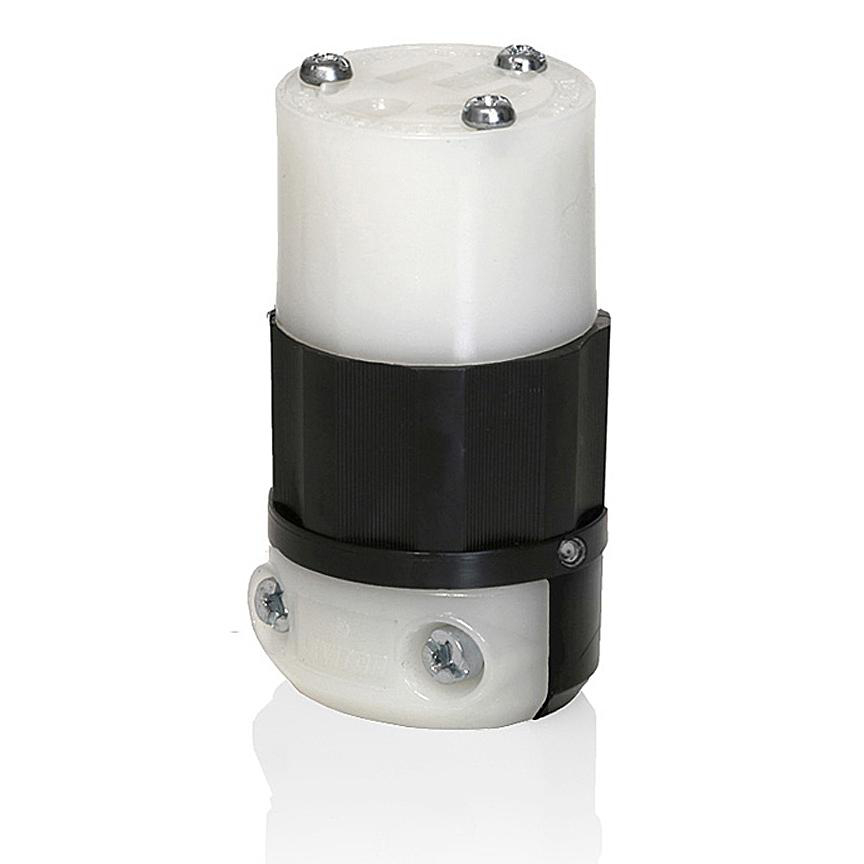

Connector straight 2P 3W 250V 15AMP black-white

Manufacturer: Leviton Manufacturing | Catalog # 5669-PLC | Electrozad South Part # 289656
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
The Leviton line of straight blade plugs and connectors includes: black white industrial grade devices that resist impact, corrosion and chemicals; Wetguard® for water or moisture resistance; Dustgard® for dust and dirt; Python™ with an innovative interlocking design; rugged nylon flanged and outlets; and integrated inlets and outlets with weather resistant covers.

Technical Information

Amperage
15 A
Applications
For Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Device Type
Straight Blade Connector
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Cable
NEMA
6-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
1.49 Dia x 2.76 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Type
Power Light
Voltage
250 V
Wire Count
3
Wire Size
.250-.685 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477139363
Color
Black/White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477139363

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
