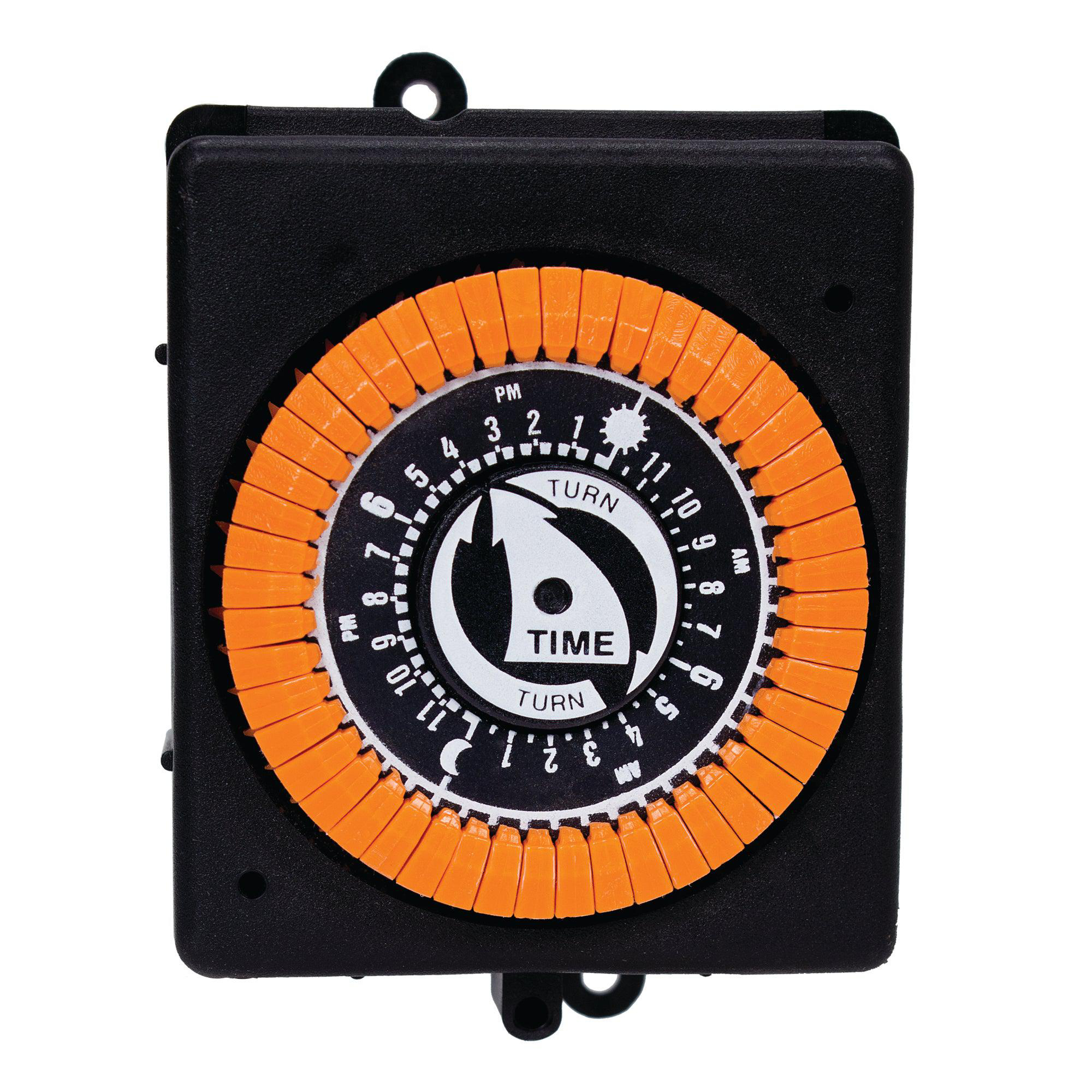

Product image for 24-HOUR 120V MECHANICAL PANEL MOUNT TIMER, 48 TRIPPERS
Image thumbnail 0
Image thumbnail 1
To:
CC:

24-HOUR 120V MECHANICAL PANEL MOUNT TIMER, 48 TRIPPERS

Manufacturer: Intermatic Timers | Catalog # PB913N | Electrozad South Part # 288986
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
These timers provide automatic control for pumps, cleaners and other types of loads. Timers have three-way mounting; flush in round opening, raised in rectangular opening or on base. Quick connect terminals for easy installation.

Technical Information

Action
SPST
Applications
Motor Control,Pump Control
Contact Configuration
1 NO
Contact Rating
20 AMP @ 120 - 277 VAC (Resistive), 1250 WTT @ 125 VAC (Tungsten)
Frequency
60 Hz
Horsepower
1 hp
Input Voltage
120 V
Max Operating Temperature
0 degrees C
Minimum Operating Temperature
0 degrees C
Mounting Type
Flush,Panel,Surface
Number of Circuits
1
Number of Poles
1
Size
3-1/3 HEIGHT X 2-13/16 WIDTH X 1-61/64 DEPTH IN, 84.8 HEIGHT X 17.4 WIDTH X 49.6 DEPTH CM
Standard
CCSAus Certified,CSA,UL Listed,UL Recognized
Switch Type
SPST
Type
Electromechanical
Voltage
120 V
Wattage
1,250 Watt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275701465
GTIN
00078275701465

Dimensions

Depth
1.953 in
Height
3.333 in
Warranty Length
1 yr
Width
2.813 in

Certifications & Compliance

Country of Origin
Mexico
